Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
You can contact me for the best price electronic components BOM Audio Power Amplifier IC LM3886TF
Manufacturer Product Number
LM3886TF
Description
LM3886TF Overture Audio Power Amplifier Series High-Performance 68W Audio Power Amplifier w/Mute
Package Condition
Tube
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| LM3886TF Description The LM3886TF is a high-performance audio power amplifier with 0.1 percent THD+N from 20Hz to 20kHz that can produce 68W of continuous average power to a 4 load and 38W into an 8 load. With a generally low noise floor of 2.0V, the LM3886 maintains a good signal-to-noise ratio of better than 92dB. Over the audio spectrum, it has extremely low THD+N values of 0.03 percent at the rated output into the rated load and good linearity with an IMD (SMPTE) typical rating of 0.004 percent. LM3886TF Features Output Over-Voltage Protection against Transients from Inductive Loads 11-Lead TO-220 Package Wide Supply Range 20V - 94V An Input Mute Function Signal-to-Noise Ratio ≥ 92dB LM3886TF Applications Component stereo Compact stereo Self-powered speakers Surround-sound amplifiers High-end stereo TVs |
Product Description
| Type | Description |
| Part# | LM3886TF |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Audio Amplifiers | |
| Manufacturer | Original |
| Series | Overture™ |
| Packaging | Tube |
| Part Status | Active |
| Type | Class AB |
| Output Type | 1-Channel (Mono) |
| Max Output Power x Channels @ Load | 68W x 1 @ 4Ohm |
| Voltage - Supply | 20V ~ 84V, ±10V ~ 42V |
| Features | Mute, Short-Circuit and Thermal Protection |
| Mounting Type | Through Hole |
| Operating Temperature | -20°C ~ 85°C (TA) |
| Supplier Device Package | TO-220-11 Isolated |
| Package / Case | TO-220-11 Isolated Tab, Formed Leads |
| Base Product Number | LM3886 |

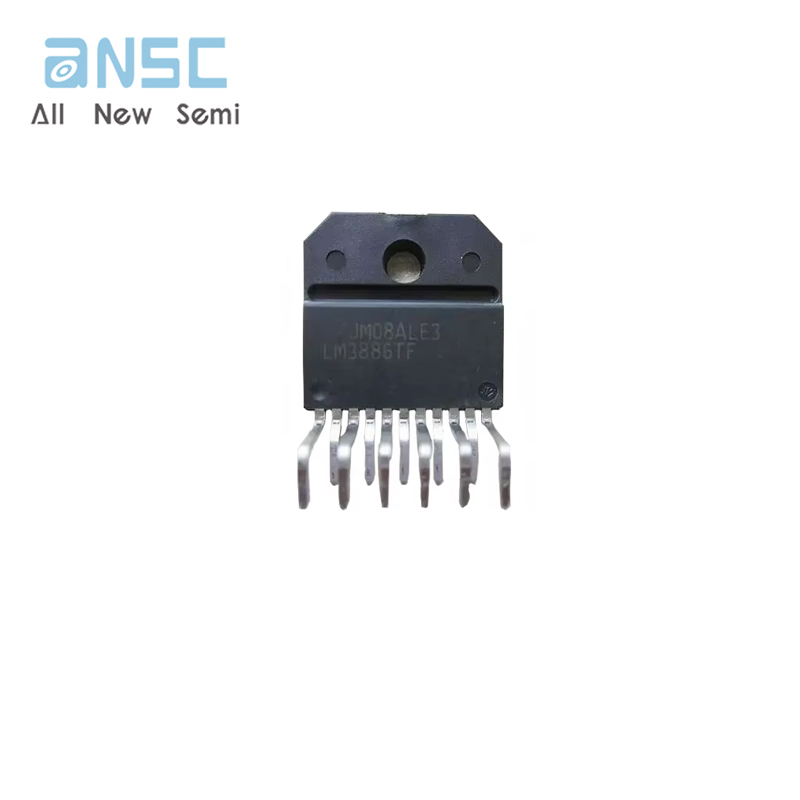

Actual image of the product
