Hot sale Original APSG250EC3181MH08S Aluminum Electrolytic Capacitor Polarized Aluminum (solid Polymer) 25V
Manufacturer
Manufacturer Product Number
APSG250EC3181MH08S
Description
APSG250EC3181MH08S Aluminum Electrolytic Capacitor
Package Condition
Original
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
Cap Aluminum 180uF 25V ±20% (8 X 8mm) Radial Aluminum Cylindrical Can 3.5mm 0.018 Ohm 3770mA 15000hr 105°C Bulk
Product Description
| Type | Description |
| PART# | APSG250EC3181MH08S |
| Manufacturer | / |
| Package Description | / |
| Additional Feature | ESR IS MEASURED AT 100 KHZ-300 KHZ |
| Capacitance | 180 µF |
| Capacitor Type | ALUMINUM ELECTROLYTIC CAPACITOR |
| Diameter | 8 mm |
| Dielectric Material | ALUMINUM (SOLID POLYMER) |
| ESR | 18 mΩ |
| Leakage Current | 0.9 mA |
| Length | 8 mm |
| Mounting Feature | THROUGH HOLE MOUNT |
| Multilayer | No |
| Negative Tolerance | 20% |
| Number of Terminals | 2 |
| Operating Temperature-Max | 105 °C |
| Operating Temperature-Min | -55 °C |
| Package Style | Radial |
| Packing Method | BULK |
| Polarity | POLARIZED |
| Positive Tolerance | 20% |
| Rated (DC) Voltage (URdc) | 25 V |
| Ripple Current | 377 mA |
| Surface Mount | NO |
| Tan Delta | 0.12 |
| Terminal Finish | TIN |
| Terminal Pitch | 3.5 mm |
| Terminal Shape | WIRE |

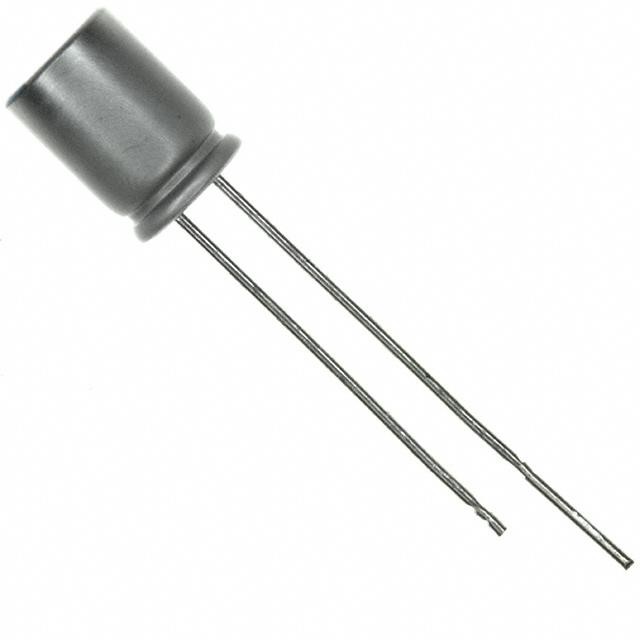

Actual image of the product
