Hot sale original UKL2A680KPD CAP ALUM 68UF 10% 100V RADIAL TH Capacitor 68µF 100V Aluminum Electrolytic Capacitors Radial, Can

Product Details

Description

The UKL2A680KPD is a high-quality aluminum electrolytic capacitor designed for general-purpose applications.

With a capacitance of 68 μF, this capacitor is ideal for use in various electronic circuits where stable and reliable capacitance is required.

The capacitor features a radial can package with a diameter of 10 mm and a height of 20 mm, making it suitable for through-hole mounting.

2. Features

Capacitance: 68 μF

Capacitor Type: Aluminum Electrolytic Capacitor

Diameter: 10 mm

Dielectric Material: Aluminum (Wet)

Height: 20 mm

Height Seated (Max): 21.50 mm

Lead Pitch: 5.0038 mm

Lead Spacing: 0.197 mm (5.00 mm)

Leakage Current: 0.0136 mA

Life (Hours): 2000 hours at 85°C

Operating Temperature Range: -40°C to 85°C

Package / Case: Radial Can

Packing Method: Tape

Pbfree Code: Yes

Polarization: Polar

Ripple Current: 290 mA (at 120 Hz), 580 mA (at 10 kHz)

RoHS Status: ROHS3 Compliant

Series: UKL

Terminal Finish: Matte Tin (Sn)

Terminal Pitch: 5 mm

Terminal Shape: Wire

Termination: Radial

Tolerance: ±10%

Voltage - Rated DC: 100 V

3. Applications

The Nichicon UKL2A680KPD is versatile and can be used in a variety of applications including:

- General Purpose Circuits: Suitable for general-purpose applications where stable capacitance is required.

- Filtering Circuits: Effective in filtering applications due to its high ripple current handling capability.

- Power Supply Systems: Used in power supply systems to provide stable voltage regulation.

- Audio Equipment: Can be used in audio equipment for filtering and decoupling purposes.

Product Description

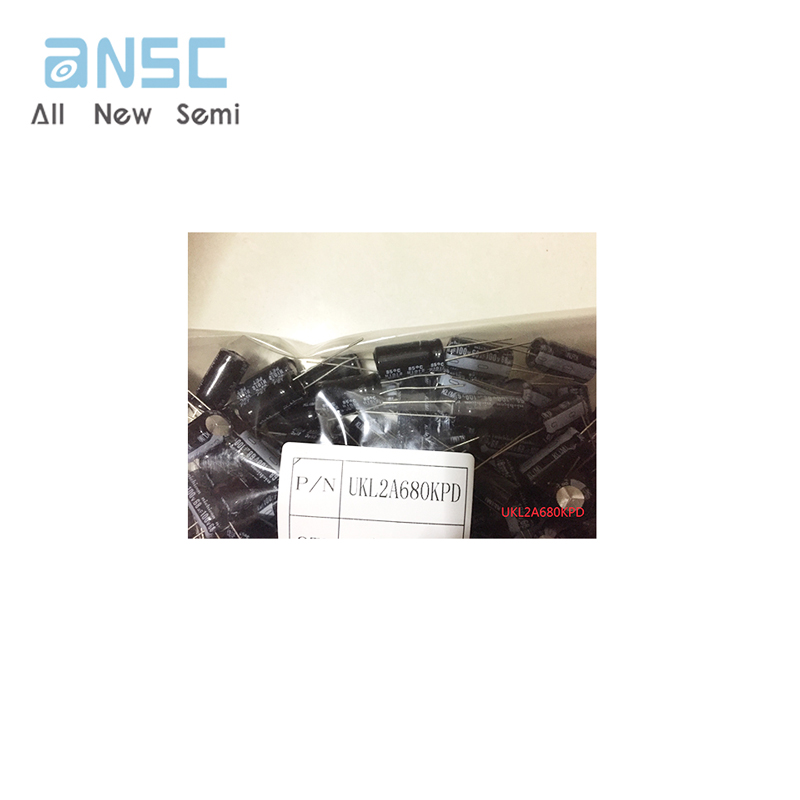

Actual image of the product

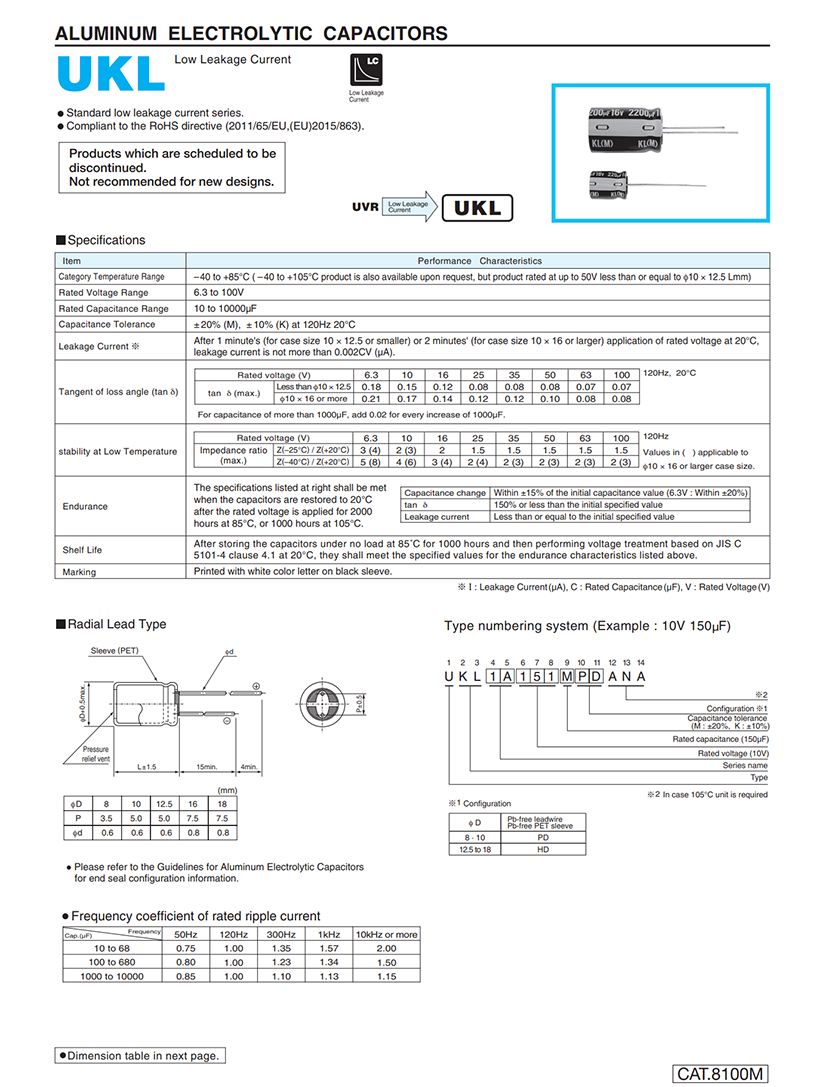

Product datasheet

For more information, please download
