Hot sale Original 865080243006 Capacitors CAP ALUM 68UF 20% 10V SMD 68 µF 10 V Aluminum Electrolytic Capacitors Radial, Can
Manufacturer Product Number
865080243006
Description
Aluminum Electrolytic Capacitor ±20% Tape & Reel (TR) Surface Mount 220mA 0.248Dia 6.30mm -55°C~105°C Polar Radial, Can - SMD
Package Condition
Tape & Reel (TR) Cut Tape (CT)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Overview
During full charge, the ripple current is 220mA @ 100kHz.When the battery is charged to its lowest level, the ripple current is 143mA @ 120Hz.You should keep the height of the seat (Max) below 0.217 5.50mm.Rated DC voltage of 10V is used to operate this capacitor.If you want high efficiency, you should keep the operating temperature at -55°C~105°C.
Product Features
the ripple current is 220mA @ 100kHz.
the ripple current is 143mA @ 120Hz.
voltage - Rated DC of 10V
an operating temperature of -55°C~105°C
Product Applications
865080243006 applications of aluminum electrolytic capacitors.
· Power supplies
· Computer motherboards
· Uninterruptible power supplies
· Frequency converters
· Computer
· Telecommunication
· Industrial systems
· Smoothing and filtering applications
· Standard and switched mode power supplies
· Energy storage in pulse systems
Product Description
|
Type |
Description |
|---|---|
|
ANSC PART# |
ANSC - 865080243006 |
|
Category |
Capacitors Aluminum Electrolytic Capacitors |
|
Mfr |
/ |
|
Series |
WCAP-ASLI |
|
Packaging |
Tape & Reel (TR) Cut Tape (CT) |
|
Part Status |
Active |
|
Capacitance |
68 µF |
|
Tolerance |
±20% |
|
Voltage - Rated |
10 V |
|
ESR (Equivalent Series Resistance) |
- |
|
Lifetime @ Temp. |
2000 Hrs @ 105°C |
|
Operating Temperature |
-55°C ~ 105°C |
|
Polarization |
Polar |
|
Ratings |
- |
|
Applications |
General Purpose |
|
Ripple Current @ Low Frequency |
143 mA @ 120 Hz |
|
Ripple Current @ High Frequency |
220 mA @ 100 kHz |
|
Impedance |
550 mOhms |
|
Lead Spacing |
- |
|
Size / Dimension |
0.248" Dia (6.30mm) |
|
Height - Seated (Max) |
0.217" (5.50mm) |
|
Surface Mount Land Size |
0.260" L x 0.260" W (6.60mm x 6.60mm) |
|
Mounting Type |
Surface Mount |
|
Package / Case |
Radial, Can - SMD |

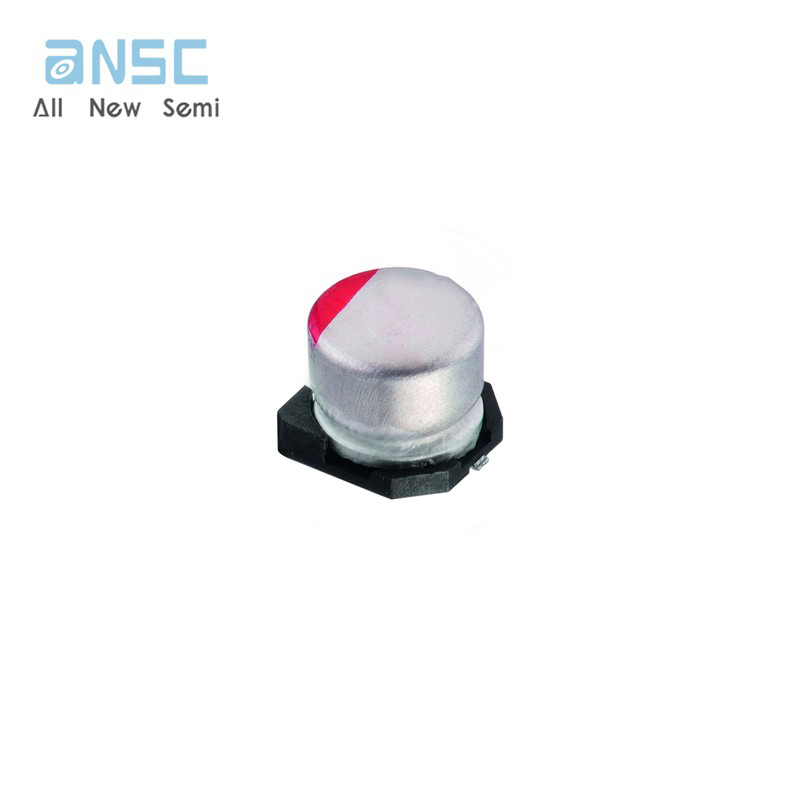

Actual image of the product

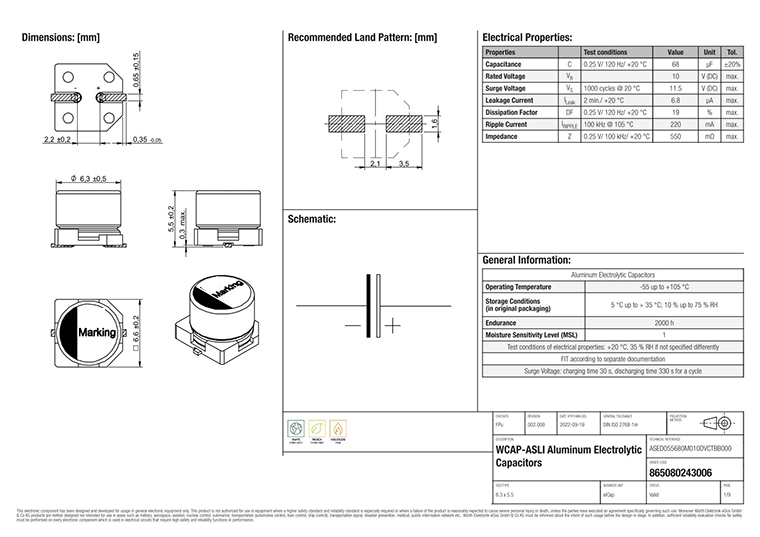

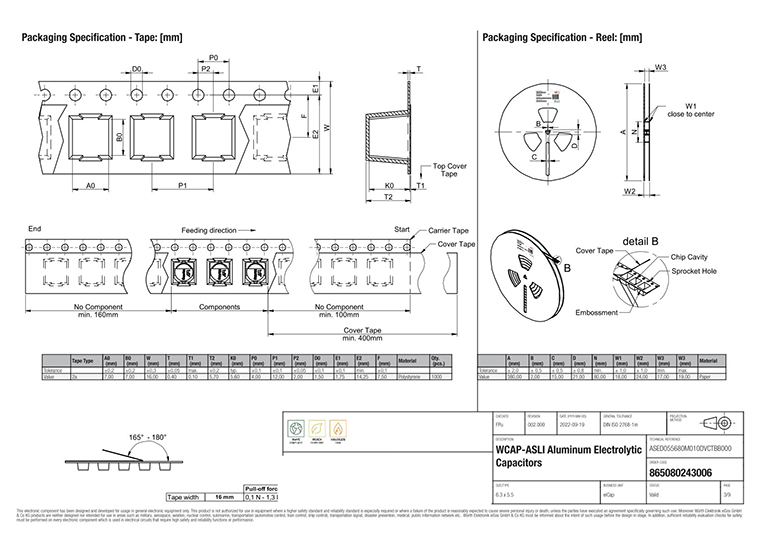

Product datasheet
For more information, please download
