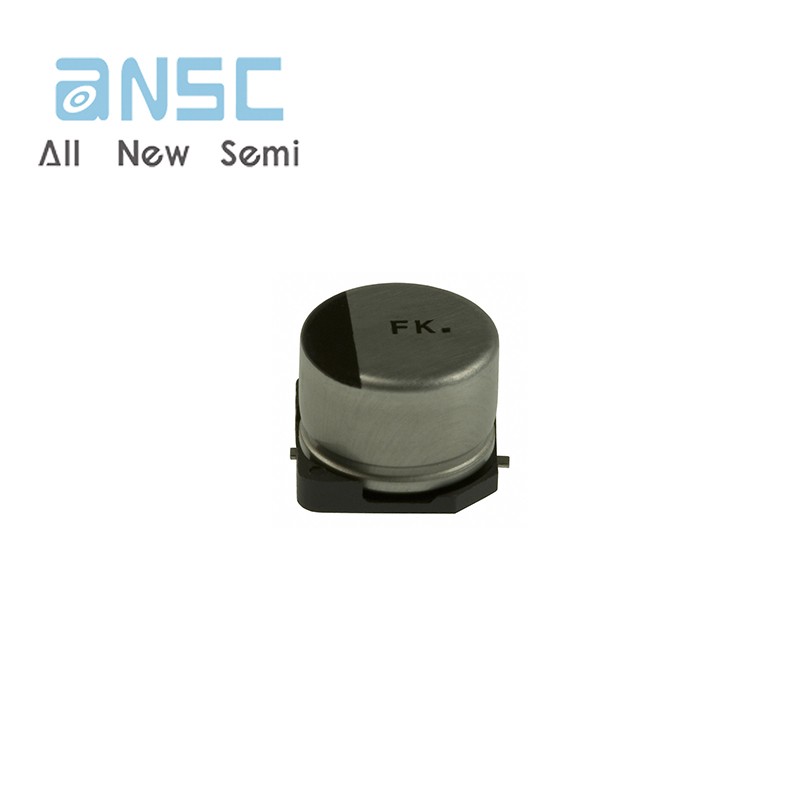

Hot sale Original EEE-FK1J470P Capacitor CAP ALUM ±20% 47UF 63V Aluminum Electrolytic Capacitors Radial, Can - SMD

Manufacturer

Panasonic

Manufacturer Product Number

EEE-FK1J470P

Description

Original EEE-FK1J470P Capacitor CAP ALUM ±20% 47UF 63V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C

Package Condition

Tape & Reel (TR) Cut Tape (CT)

Product Details
Reviews

Product Description

The EEE-FK1J470P is a high-quality aluminum electrolytic capacitor designed by Panasonic Electronic Components. This surface-mount device (SMD) is engineered to provide reliable and efficient performance in various applications, particularly in the automotive sector. With its compact radial can package and lead-free construction, it meets the stringent requirements of modern electronics.

Product Features

· Capacitance: 47μF, offering a substantial capacitance value suitable for filtering and energy storage applications.

· Capacitor Type: Aluminum Electrolytic Capacitor, known for its high capacitance-to-size ratio.

· Contact Plating: Tin, ensuring good electrical conductivity and corrosion resistance.

· Diameter: 8mm, providing a compact footprint ideal for surface-mount applications.

· Dielectric Material: Aluminum, providing excellent insulation properties.

· ESR (Equivalent Series Resistance): 650mOhm, contributing to low power loss and high efficiency.

· Height: 10.2mm, with a seated height of up to 10.50mm to accommodate various PCB designs.

· Impedance: 650mOhm, ensuring minimal signal distortion in high-frequency applications.

· Leakage Current: 3μA, indicating low current leakage which is crucial in sensitive circuits.

· Life (Hours): 2000 hours at 105°C, demonstrating robust reliability under operating conditions.

· Mounting Type: Surface Mount, facilitating easy integration into modern PCBs.

· Operating Temperature Range: -55°C to 105°C, accommodating a wide range of operating environments.

· Polarization: Polar, ensuring proper orientation during installation.

· Ripple Current: Measured at 100kHz with a value of 250mA, suitable for high-frequency applications like automotive systems.

· RoHS Compliant: Ensuring compliance with environmental regulations regarding hazardous materials.

· Tan Delta: 0.08, indicating good dielectric properties and stability over temperature.

Product Applications

Primary Applications:

Automotive Systems: The EEE-FK1J470P is particularly suited for automotive applications due to its high reliability and ability to withstand extreme temperatures.

Power Supplies: Its high capacitance value makes it ideal for filtering and smoothing power supplies in various electronic systems.

Secondary Applications:

Industrial Control Systems: The capacitor's robust construction and high temperature stability make it suitable for industrial control systems where reliability is paramount.

Consumer Electronics: Its compact size and lead-free construction make it a good fit for consumer electronics requiring efficient power management.

Embedded Modules

The EEE-FK1J470P is commonly used in various embedded modules designed for automotive and industrial applications:

Automotive Power Management Modules: The capacitor's high ripple current handling capability makes it essential in automotive power management modules.

Industrial Control Modules: Its robust construction ensures reliable operation in harsh industrial environments.

In summary, the EEE-FK1J470P from Panasonic Electronic Components is a reliable and efficient aluminum electrolytic capacitor designed specifically for surface-mount applications, particularly in automotive systems but also suitable for industrial control systems and consumer electronics requiring efficient power management solutions.

Product Description

Type	Description
ANSC PART#	ANSC - EEE-FK1J470P
Category	Capacitors Aluminum Electrolytic Capacitors
Mfr	Panasonic Electronic Components
Series	FK
Packaging	Tape & Reel (TR) Cut Tape (CT)
Part Status	Active
Capacitance	47 µF
Tolerance	±20%
Voltage - Rated	63 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	187.5 mA @ 120 Hz
Ripple Current @ High Frequency	250 mA @ 100 kHz
Impedance	650 mOhms
Lead Spacing	-
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.413" (10.50mm)
Surface Mount Land Size	0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
Base Product Number	EEE-FK
