Hot sale Original 593D475X9050D2TE3 CAP TANT 4.7UF 50V 2917 4.7 uF Molded Tantalum Capacitors 50 V 2917 (7343 Metric) 600mOhm
Manufacturer Product Number
593D475X9050D2TE3
Description
593D475X9050D2TE3 CAP TANT 4.7UF 10% 50V 2917 4.7 µF Molded Tantalum Capacitors 50 V 2917 (7343 Metric) 600mOhm
Package Condition
Tape & Reel (TR) Cut Tape (CT)
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Overview
There is a ripple current setting of 500mA on the capacitor.A simple electronic circuit containing a resistor and an ideal (perfect) capacitor has an equivalent series resistance of 600mOhm, also referred to as internal resistance.Capacitor leakage current is 2.4μA.The dissipation factor of a capacitor is the amount of power lost when current is applied through it, and the dissipation factor of this capacitor is 6 %.To determine the quality of an insulating oil, it is tested for its Tan Delta, which is 0.06.
Product Features
500mA is the ripple current of the capacitor
a leakage current of 2.4μA in this capacitor
the dissipation factor is 6 %
its tan delta is 0.06
Product Applications
593D475X9050D2TE3 applications of tantalum capacitors.
· Consumer
· Computer
· General purpose
· General low power DC/DC and LDO
· Automotive ECU
· ABS
· Airbag systems
· Avionics,
· Industrial control units
· Military / aerospace
Product Description
|
ANSC PART# |
ANSC- 593D475X9050D2TE3 |
|
Part# |
593D475X9050D2TE3 |
|
Type: |
Electronic components |
|
Manufactor |
Original |
|
DC |
new |

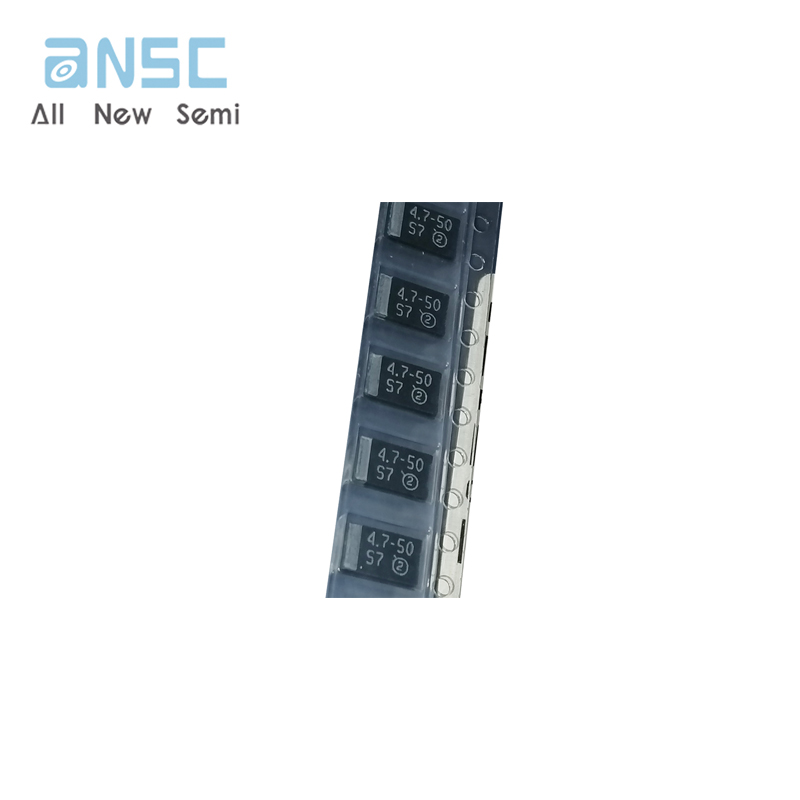

Actual image of the product
|
TYPE |
DESCRIPTION |
|---|---|
|
Category |
Capacitors Tantalum Capacitors |
|
Mfr |
- |
|
Series |
TANTAMOUNT™, 593D |
|
Package |
Tape & Reel (TR) Cut Tape (CT) |
|
Product Status |
Active |
|
Capacitance |
4.7 µF |
|
Tolerance |
±10% |
|
Voltage - Rated |
50 V |
|
Type |
Molded |
|
ESR (Equivalent Series Resistance) |
600mOhm |
|
Operating Temperature |
-55°C ~ 125°C |
|
Lifetime @ Temp. |
- |
|
Mounting Type |
Surface Mount |
|
Package / Case |
2917 (7343 Metric) |
|
Size / Dimension |
0.287" L x 0.169" W (7.30mm x 4.30mm) |
|
Height - Seated (Max) |
0.122" (3.10mm) |
|
Lead Spacing |
- |
|
Manufacturer Size Code |
D |
|
Features |
General Purpose |
|
Failure Rate |
- |

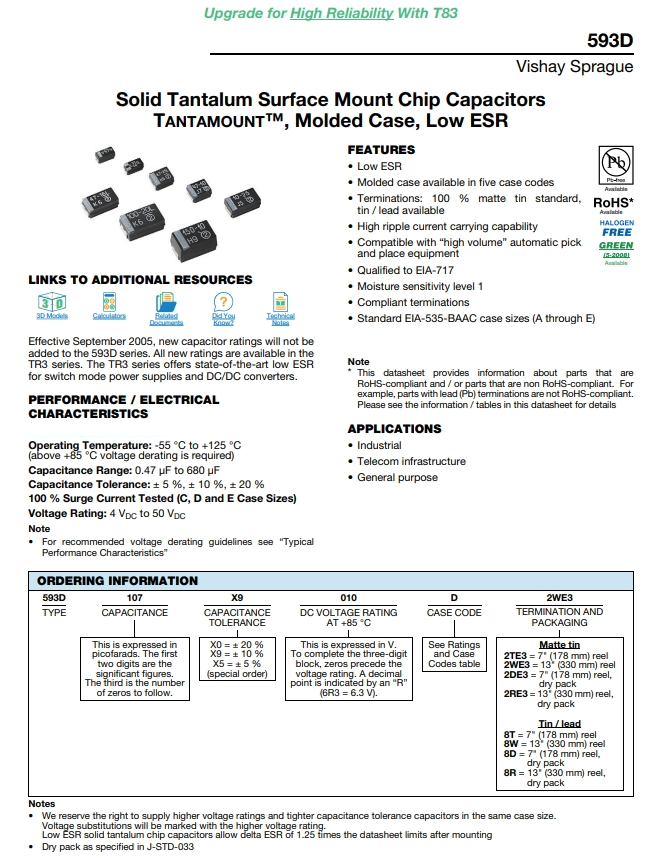

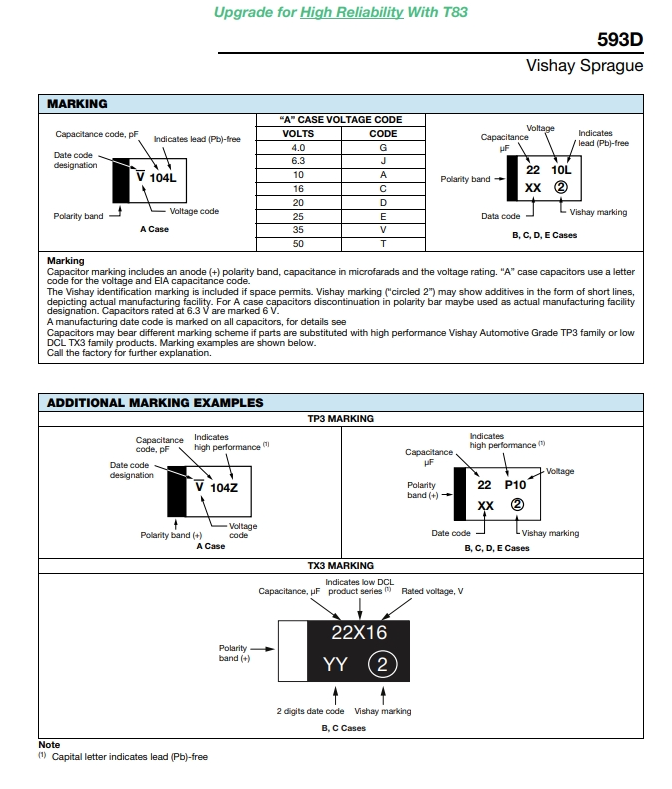

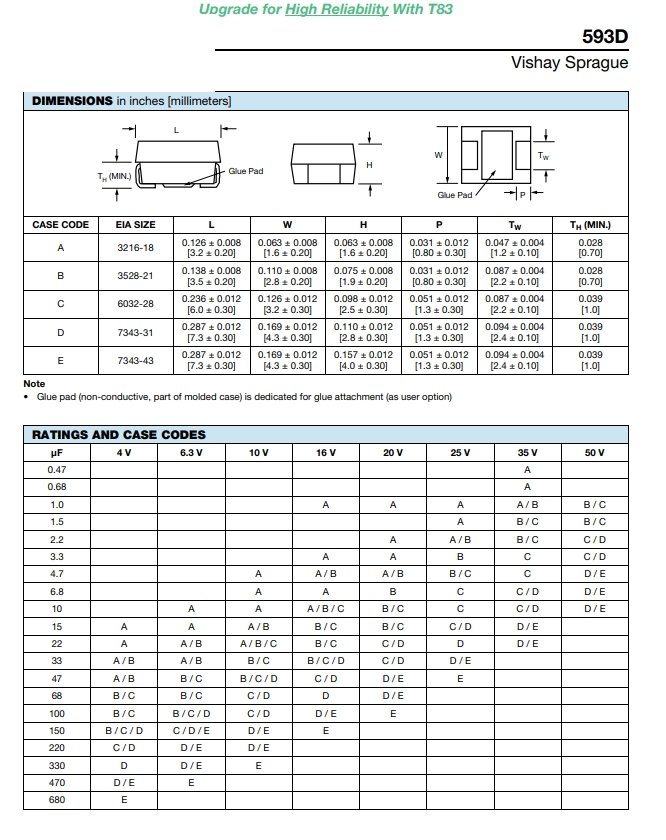

Product datasheet
