Hot sale Original EEE-TP1V221AP Capacitor CAP ALUM 220UF 35V ±20% Aluminum Electrolytic Capacitors Radial, Can - SMD

Product Description

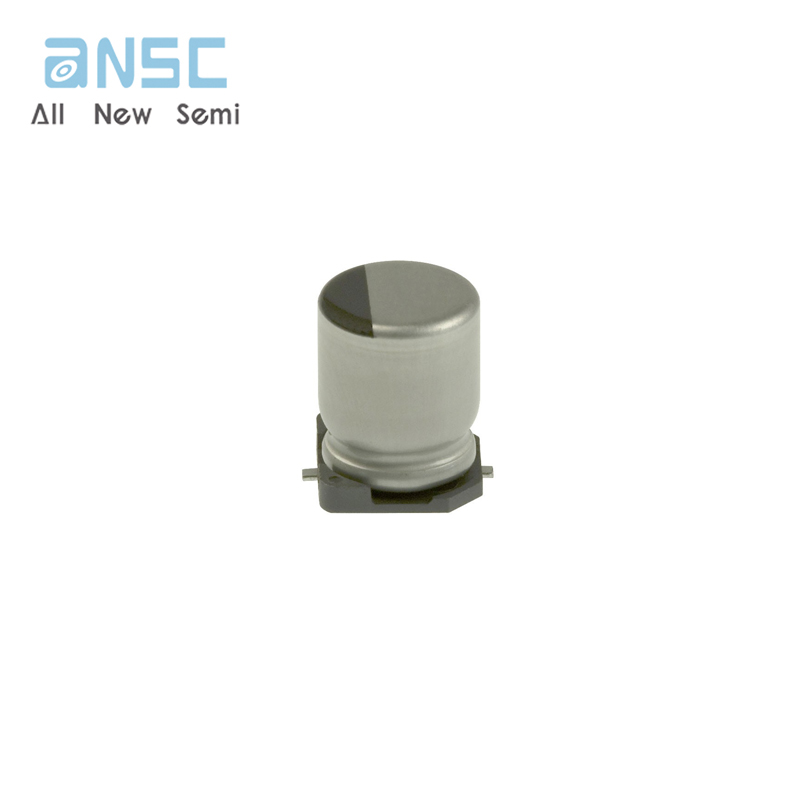

Product Description: EEE-TP1V221AP Aluminum Electrolytic Capacitor

The EEE-TP1V221AP is a high-quality aluminum electrolytic capacitor . This component belongs to the TP series, known for its reliability and performance in various applications.

Description

The EEE-TP1V221AP is a radial, surface-mount (SMD) aluminum electrolytic capacitor with a capacitance of 220μF. It operates within a wide temperature range of -40°C to 125°C, making it suitable for demanding environments. The capacitor features a lead-free construction and is compliant with RoHS regulations, ensuring environmental sustainability.

Product Features

· Capacitance: 220μF

· Capacitor Type: Aluminum Electrolytic Capacitor

· Diameter: 10mm

· Dielectric Material: Aluminum

· Dissipation Factor: 0.16%

· ESR (Equivalent Series Resistance): 150mOhm

· Height: 10.2mm

· Height Seated (Max): 10.20mm

· Impedance: 150mOhm

· Lead Diameter: 900 μm

· Lead Free: Yes

· Lead Pitch: 4.6mm

· Leakage Current: 77μA

· Life (Hours): 3000 hours

· Lifetime @ Temp.: 3000 Hrs @ 125°C

· Mounting Type: Surface Mount

· Number of Pins/Terminations: 2

· Operating Temperature Range: -40°C ~ 125°C

· Package/Case Type: Radial, Can - SMD

· Packaging Method: Tape & Reel (TR)

· Polarization: Polar

· Ratings Compliance: AEC-Q200

· Ripple Current: 500mA (at various frequencies)

· RoHS Status: RoHS Compliant

· Series Designation: TP

· Size/Dimension Code: 4141

· Surface Mount Land Size: 0.406L x 0.406W (10.30mm x 10.30mm)

· Terminal Finish: Tin/Bismuth (Sn/Bi)

· Terminal Shape: Flat

· Termination Type: SMD/SMT

· Tolerance: ±20%

· Voltage Rating: 35V DC

Product Applications

The EEE-TP1V221AP is primarily designed for use in automotive systems due to its high temperature reflow capabilities and reliability under extreme conditions. Secondary applications include:

Automotive Systems: The capacitor's high temperature stability makes it ideal for automotive electronics that operate under harsh conditions.

High-Temperature Reflow Applications: Its ability to withstand high temperatures during the reflow process makes it suitable for applications requiring precise thermal management.
