Professional supply Original BOM distribution service electronic components EEE-HA1J220UP Aluminum Electrolytic Capacitors
Manufacturer Product Number
EEE-HA1J220UP
Description
EEE-HA1J220UP Capacitors CAP ALUM 22UF 20% 63V SMD
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
■ Features
● Endurance: 85 °C 2000 h
● Vibration-proof product is available upon request. (08 mm and larger)
● AEC-Q200 qualifi ed✽
● RoHS directive compliant
Product Description
|
Type |
Description |
|---|---|
|
PART# |
EEE-HA1J220UP |
|
Category |
Capacitors Aluminum Electrolytic Capacitors |
|
Mfr |
/ |
|
Series |
HA |
|
Packaging |
Tape & Reel (TR) Cut Tape (CT) |
|
Part Status |
Not For New Designs |
|
Capacitance |
22 µF |
|
Tolerance |
±20% |
|
Voltage - Rated |
63 V |
|
ESR (Equivalent Series Resistance) |
- |
|
Lifetime @ Temp. |
1000 Hrs @ 105°C |
|
Operating Temperature |
-40°C ~ 105°C |
|
Polarization |
Polar |
|
Ratings |
AEC-Q200 |
|
Applications |
Automotive |
|
Ripple Current @ Low Frequency |
25 mA @ 120 Hz |
|
Ripple Current @ High Frequency |
42.5 mA @ 10 kHz |
|
Lead Spacing |
- |
|
Size / Dimension |
0.315" Dia (8.00mm) |
|
Height - Seated (Max) |
0.244" (6.20mm) |
|
Surface Mount Land Size |
0.327" L x 0.327" W (8.30mm x 8.30mm) |
|
Mounting Type |
Surface Mount |
|
Package / Case |
Radial, Can - SMD |
|
Base Product Number |
EEE-HA |

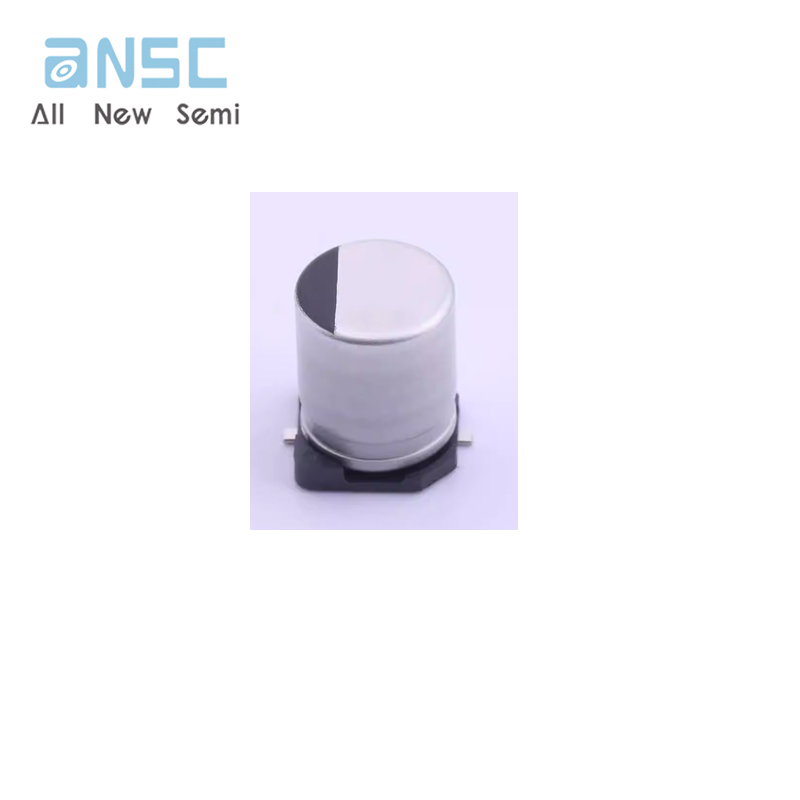

Actual image of the product
