Professional supply Original BOM distribution service electronic components TAJC226K025RNJ Capacitor
Manufacturer Product Number
TAJC226K025RNJ
Description
TAJC226K025RNJ Capacitor 22µF Molded Tantalum Capacitors 25V 2312 (6032 Metric) 1.4Ohm
Package Condition
Tape & Reel (TR) Cut Tape (CT)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
TAJC226K025RNJ Overview
As a result of the loss of useful energy in a simple circuit with a resistor and an ideal (perfect) capacitor,
equivalent series resistance (ESR) is known as internal resistance.Currently, this capacitor is leakage current 5.5μA.
A capacitor's dissipation factor determines how much power is lost when AC is applied through it, and its dissipation factor is 6 %.
The Tan Delta is a dielectric test on the insulating oil to determine its quality, and it is 0.06.
TAJC226K025RNJ Features
a leakage current of 5.5μA in this capacitor
the dissipation factor is 6 %
its tan delta is 0.06
TAJC226K025RNJ Applications
TAJC226K025RNJ applications of tantalum capacitors.
Computer
General purpose
General low power DC/DC and LDO
Automotive ECU
ABS
Airbag systems
Avionics,
Industrial control units
Military / aerospace
General purpose
Product Description
| Type# | Description |
| PART# | TAJC226K025RNJ |
| Category | Capacitors |
| Tantalum Capacitors | |
| Mfr | / |
| Series | TAJ |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| / | |
| Part Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±10% |
| Voltage - Rated | 25 V |
| Type | Molded |
| ESR (Equivalent Series Resistance) | 1.4Ohm |
| Operating Temperature | -55°C ~ 125°C |
| Lifetime @ Temp. | - |
| Mounting Type | Surface Mount |
| Package / Case | 2312 (6032 Metric) |
| Size / Dimension | 0.236" L x 0.126" W (6.00mm x 3.20mm) |
| Height - Seated (Max) | 0.110" (2.80mm) |
| Lead Spacing | - |
| Manufacturer Size Code | C |
| Features | General Purpose |
| Failure Rate | - |

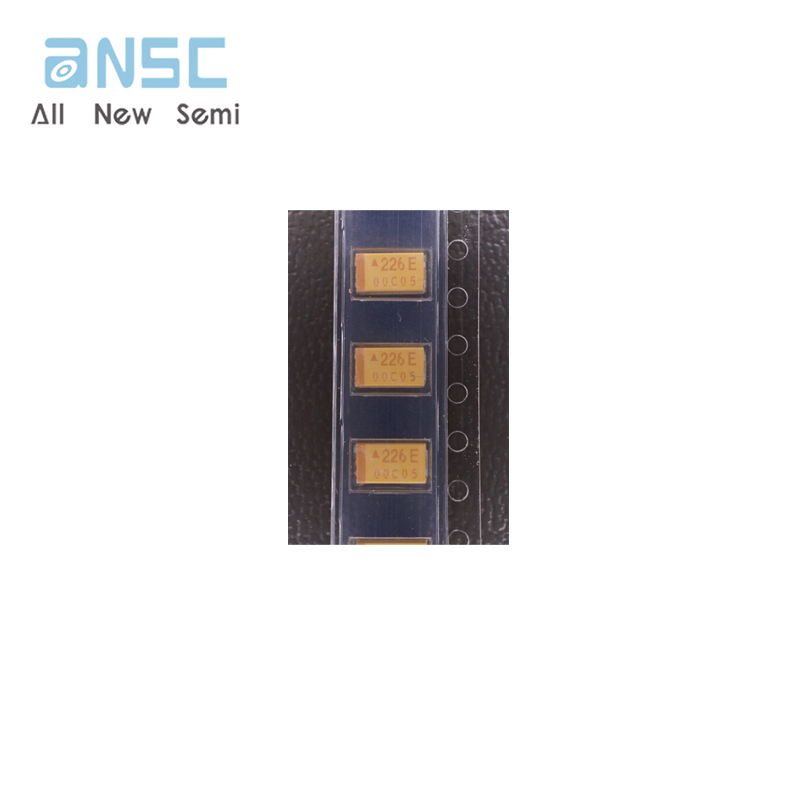

Actual image of the product
