Hot sale Original DF11-20DS-2DSA CONN RCPT 20POS 0.079 TIN PCB 20 Position Receptacle Connector Through Hole Tin
Manufacturer Product Number
DF11-20DS-2DSA
Description
Original DF11-20DS-2DSA CONN RCPT 20POS 0.079 TIN PCB 20 Position Receptacle Connector Through Hole Tin
Package Condition
Bulk
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| ■ Features 1. Space-saving on Board Realized Double rows of 2mm pitch contact has been condensed within the 5mm width. The multiple number of signals can be secured in the same space as the conventional 2mm single-row contact. 2. Broad Variation The insulation displacement and crimping methods are prepared for connection. Thus, board to cable, in-line, board to board connectors are provided in order to widen a board design variation. In addition, "Gold" or "Tin" can be selected for the plating according application, while the SMT products line up. 3. Applicable Wire Covers Wide Range According to the double rows of 2mm pitch compact design, the applicable wire can cover AWG22 to 30. 4. The ID Type Connector Achieves Connection Work. Using the full automatic insulation displacement machine, the complicated multi-harness can be easily connected, reducing the man-hour and eliminating the manual work process. |
Product Description
| Type | Description |
| ANSC PART# | ANSC - DF11-20DS-2DSA |
| Category | Connectors, Interconnects |
| Rectangular Connectors | |
| Headers, Receptacles, Female Sockets | |
| Mfr | Original |
| Series | DF11 |
| Packaging | Bag |
| Part Status | Obsolete |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Style | Board to Board or Cable |
| Number of Positions | 20 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.079" (2.00mm) |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.079" (2.00mm) |
| Mounting Type | Through Hole |
| Termination | Press-Fit, Solder |
| Fastening Type | Friction Lock |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Insulation Color | Black |
| Insulation Height | 0.244" (6.20mm) |
| Contact Length - Post | 0.118" (3.00mm) |
| Operating Temperature | -30°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | - |
| Mated Stacking Heights | 7.8mm, 8.45mm |
| Ingress Protection | - |
| Features | - |
| Current Rating (Amps) | 2A |
| Voltage Rating | 250V |
| Applications | General Purpose |
| Insulation Material | Polyamide (PA), Nylon |
| Contact Shape | Square |
| Contact Material | Phosphor Bronze |
| Contact Finish Thickness - Post | - |
| Base Product Number | DF11 |

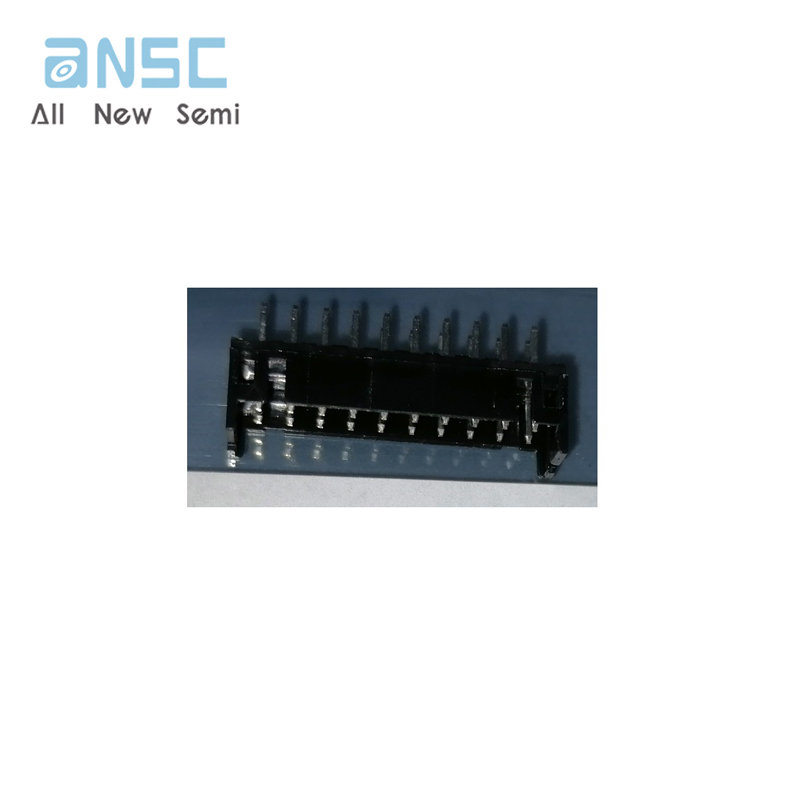

Actual image of the product

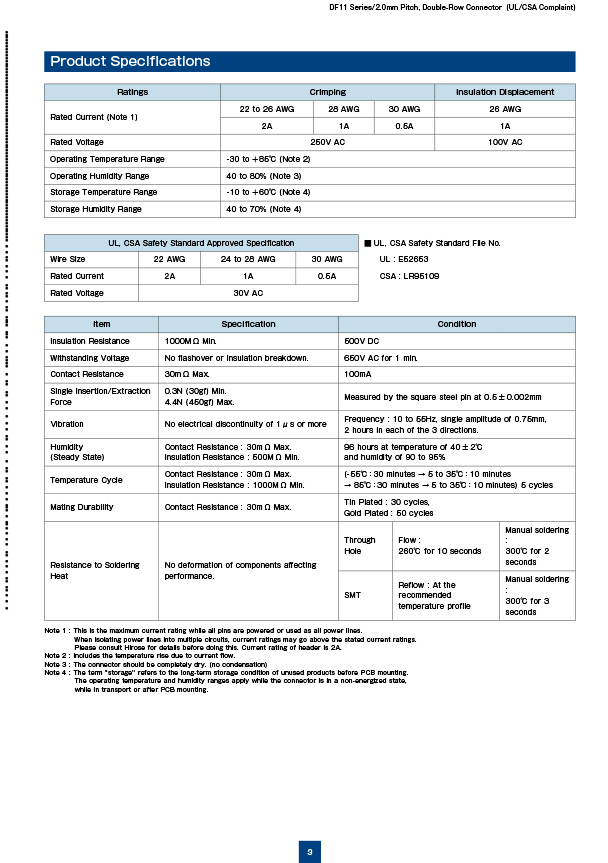

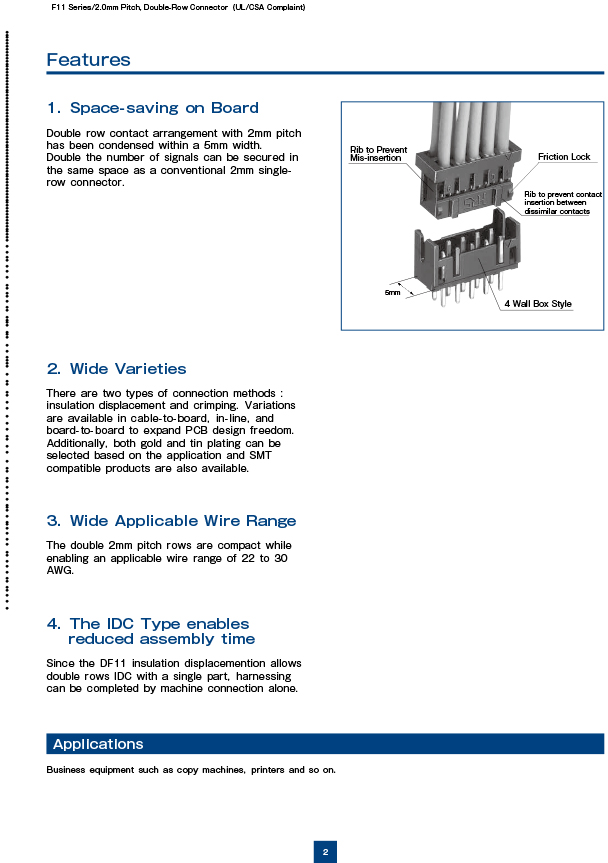

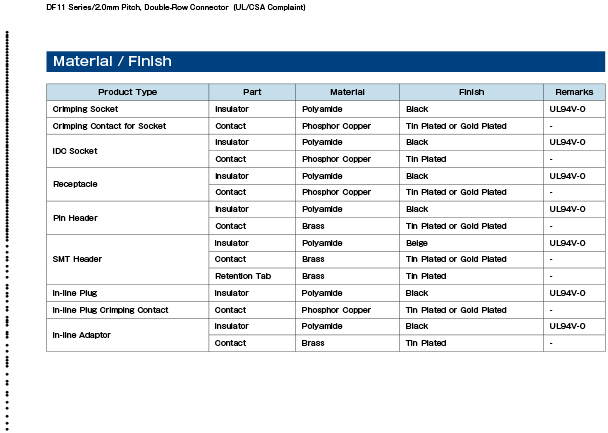

Product datasheet
