Hot sale Original DF11-20DP-2DS Board Connector, 20 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal
Manufacturer Product Number
DF11-20DP-2DS
Description
DF11-20DP-2DS Board Connector, 20 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details

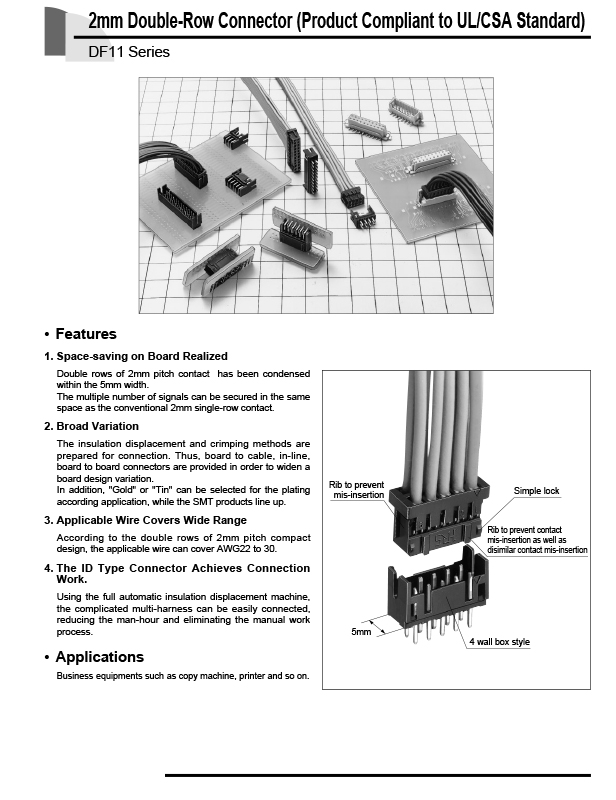

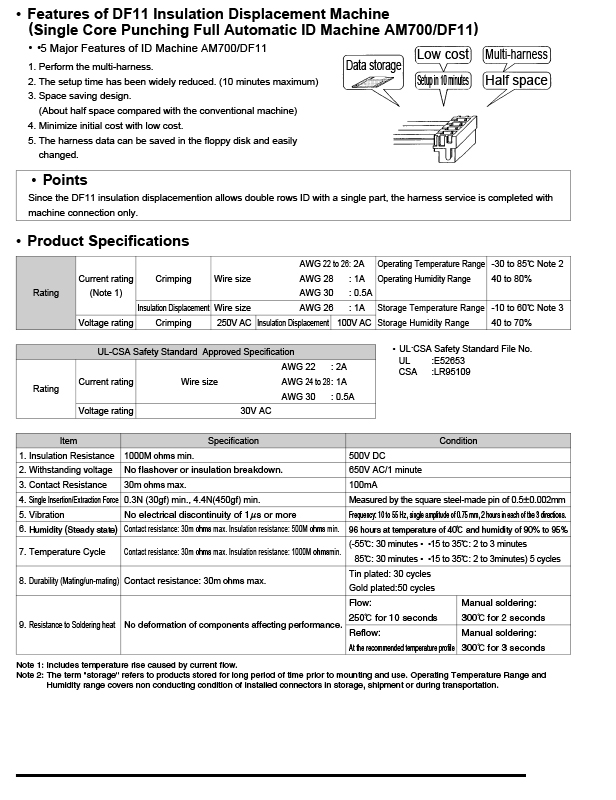

■ Features 1. Space-saving on Board Realized Double rows of 2mm pitch contact has been condensed within the 5mm width. The multiple number of signals can be secured in the same space as the conventional 2mm single-row contact. 2. Broad Variation The insulation displacement and crimping methods are prepared for connection. Thus, board to cable, in-line, board to board connectors are provided in order to widen a board design variation. In addition, "Gold" or "Tin" can be selected for the plating according application, while the SMT products line up. 3. Applicable Wire Covers Wide Range According to the double rows of 2mm pitch compact design, the applicable wire can cover AWG22 to 30. 4. The ID Type Connector Achieves Connection Work. Using the full automatic insulation displacement machine, the complicated multi-harness can be easily connected, reducing the man-hour and eliminating the manual work process. |

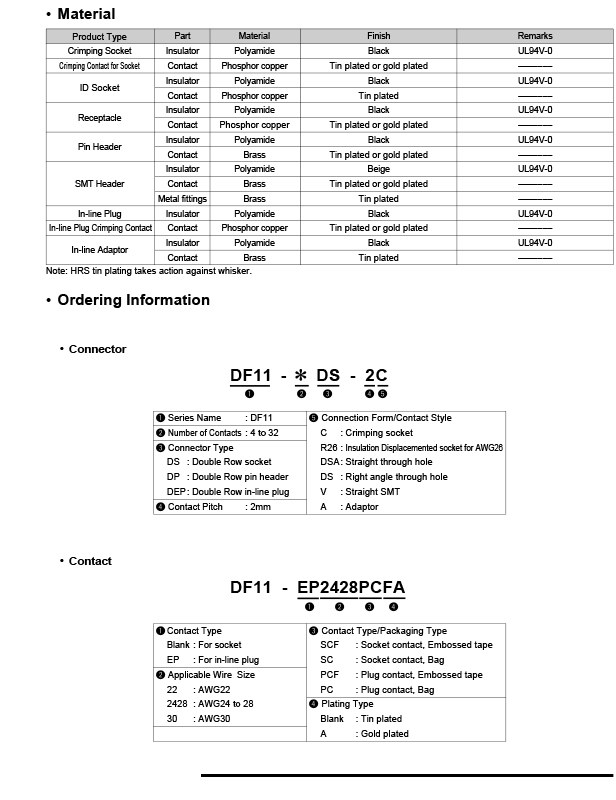

Product Description
| Type# | Description |
| ANSC PART# | ANSC- DF11-20DP-2DS |
| Ihs Manufacturer | Original |
| Additional Feature | NONE |
| Body Breadth | 0.197 inch |
| Body Depth | 0.394 inch |
| Body Length | 0.866 inch |
| Body/Shell Style | RECEPTACLE |
| Connector Type | BOARD CONNECTOR |
| Contact Finish Mating | TIN |
| Contact Finish Termination | TIN |
| Contact Gender | MALE |
| Contact Material | BRASS |
| Contact Pattern | RECTANGULAR |
| Contact Resistance | 30 mΩ |
| Contact Style | SQ PIN-SKT |
| DIN Conformance | NO |
| Dielectric Withstanding Voltage | 650VAC V |
| Durability | 30 Cycles |
| Filter Feature | NO |
| IEC Conformance | NO |
| Insertion Force-Max | 4.3924 N |
| Insulation Resistance | 1000000000 Ω |
| Insulator Color | BLACK |
| Insulator Material | POLYAMIDE |
| JESD-609 Code | e3 |
| MIL Conformance | NO |
| Mating Contact Pitch | 0.079 inch |
| Mating Contact Row Spacing | 0.079 inch |
| Mating Information | MULTIPLE MATING PARTS AVAILABLE |
| Mixed Contacts | NO |
| Mounting Option 1 | LOCKING MECH |
| Mounting Style | RIGHT ANGLE |
| Mounting Type | BOARD |
| Number Of Connectors | ONE |
| Number Of PCB Rows | 2 |
| Number of Rows Loaded | 2 |
| Operating Temperature-Max | 85 °C |
| Operating Temperature-Min | -30 °C |
| Option | GENERAL PURPOSE |
| PCB Contact Pattern | RECTANGULAR |
| PCB Contact Row Spacing | 2.0066 mm |
| Polarization Key | GUIDE SLOT |
| Rated Current (Signal) | 2 A |
| Reference Standard | UL, CSA |
| Terminal Length | 0.118 inch |
| Terminal Pitch | 2 mm |
| Termination Type | SOLDER |
| Total Number of Contacts | 20 |
| UL Flammability Code | 94V-0 |
| Withdrawl Force-Min | .3058 N |

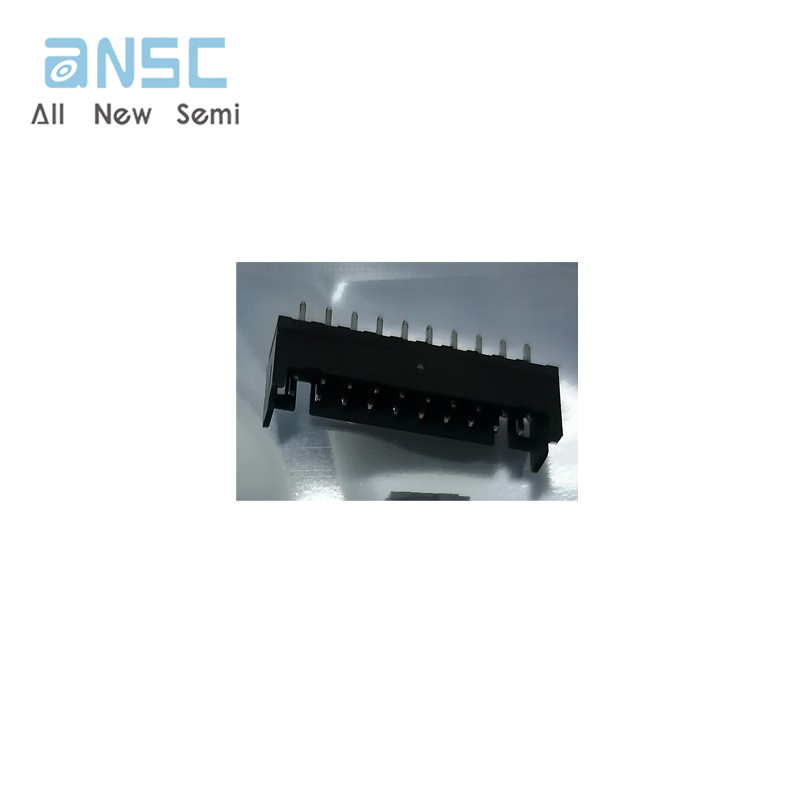

Actual image of the product
