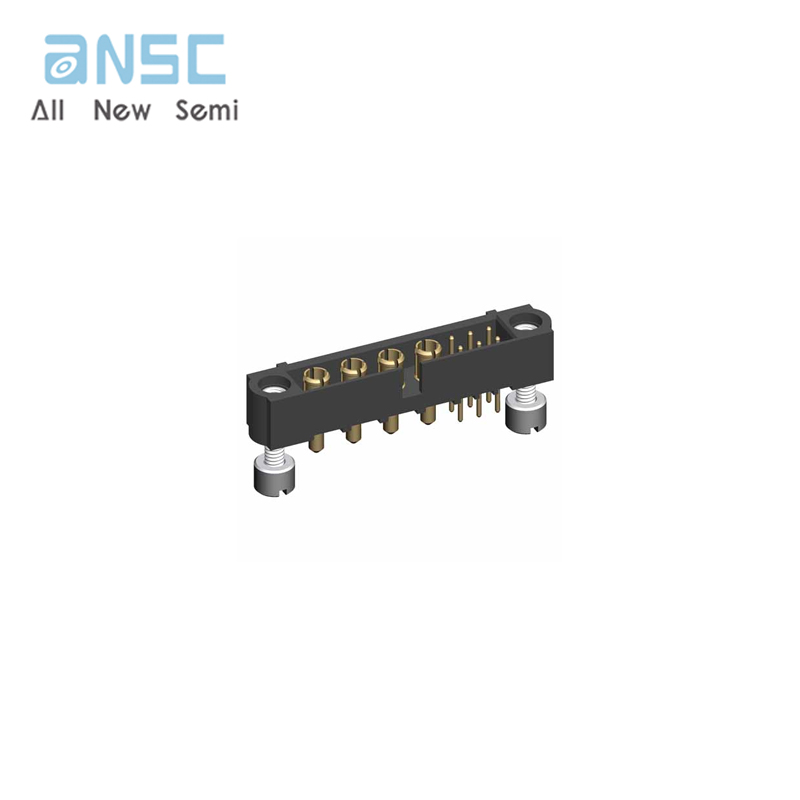

Original M80-5T10605M3-04-331-00-000 Connector Header Male Pin, Power 10 Positions Shrouded - 4 Wall Circular 29.5µin (0.75µm)
Manufacturer
Manufacturer Product Number
M80-5T10605M3-04-331-00-000
Description
Original M80-5T10605M3-04-331-00-000 Connector Header Male Pin, Power 10 Positions Shrouded - 4 Wall Circular 29.5µin (0.75µm) 800VAC/DC 7.3mm
Package Condition
Tube
Product Overview
The packaging contains Wire.There is a BOARD mounting type for the device.
Product Applications
There are a lot of Harwin Inc.
M80-5T10605M3-04-331-00-000 Rectangular Connectors applications.
· Embedded systems
· Datacom
· Communication
· Medical technology
· Military Technology
· Measuring & Control Technology
· Instrumentation
· Automotive Electronics
· Telecommunications
· Data Technology
Product Description
| Type | Description |
| ANSC PART# | ANSC - M80-5T10605M3-04-331-00-000 |
| Category | Connectors, Interconnects |
| Rectangular Connectors | |
| Headers, Male Pins | |
| Mfr | Harwin Inc. |
| Series | Datamate Mix-Tek |
| Packaging | Tube |
| Part Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin, Power |
| Pitch - Mating | - |
| Number of Positions | 10 (6 + 4 Power) |
| Number of Rows | - |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Threaded |
| Contact Length - Mating | - |
| Contact Length - Post | 0.130" (3.30mm) |
| Overall Contact Length | - |
| Insulation Height | 0.220" (5.60mm) |
| Contact Shape | Circular |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 29.5µin (0.75µm) |
| Contact Finish - Post | Gold |
| Contact Material | Copper Alloy, Phosphor Bronze |
| Insulation Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Features | Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware |
| Operating Temperature | -55°C ~ 125°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 2.2A, 20A |
| Voltage Rating | 800VAC/DC |
| Mated Stacking Heights | 7.3mm |
| Contact Finish Thickness - Post | 29.5µin (0.75µm) |
| Applications | - |
| Base Product Number | M80-5T1 |
