Hot sale Original B22B-PUDSS-1 Connectors Header Male Pin 22 Positions 2 Rows Shrouded - 4 Wall Solder Latch Holder Tin
Manufacturer
Manufacturer Product Number
B22B-PUDSS-1
Description
Original B22B-PUDSS-1 Connectors Header Male Pin 22 Positions 2 Rows Shrouded - 4 Wall Solder Latch Holder Tin 250V Board Guide
Package Condition
Tray
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
| Type | Description |
| ANSC PART# | ANSC - B22B-PUDSS-1 |
| Category | Connectors, Interconnects |
| Rectangular Connectors | |
| Headers, Male Pins | |
| Mfr | / |
| Series | PUD |
| Packaging | Tray |
| Part Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.079" (2.00mm) |
| Number of Positions | 22 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.079" (2.00mm) |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Latch Holder |
| Contact Length - Mating | - |
| Contact Length - Post | 0.122" (3.10mm) |
| Overall Contact Length | - |
| Insulation Height | 0.378" (9.60mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Insulation Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Features | Board Guide |
| Operating Temperature | -25°C ~ 85°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Natural |
| Current Rating (Amps) | 3A |
| Voltage Rating | 250V |
| Mated Stacking Heights | 11mm |
| Contact Finish Thickness - Post | - |
| Applications | - |
| Base Product Number | B22B-PUD |

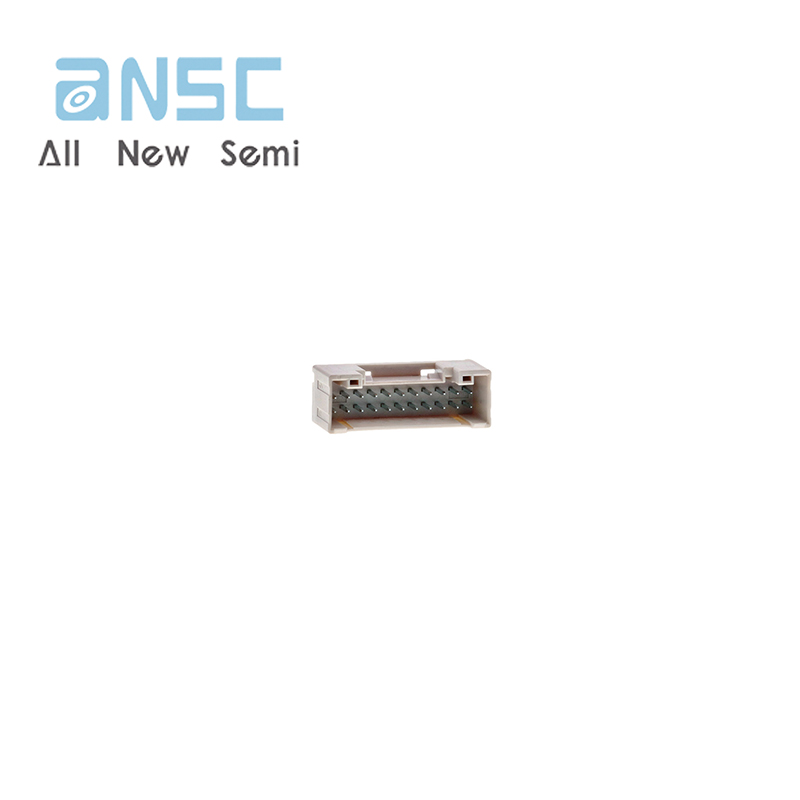

Actual image of the product

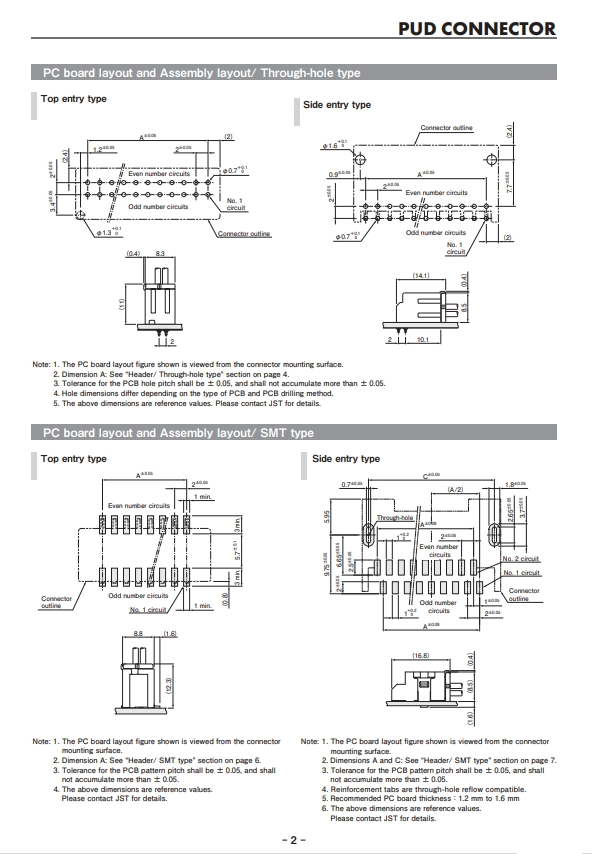

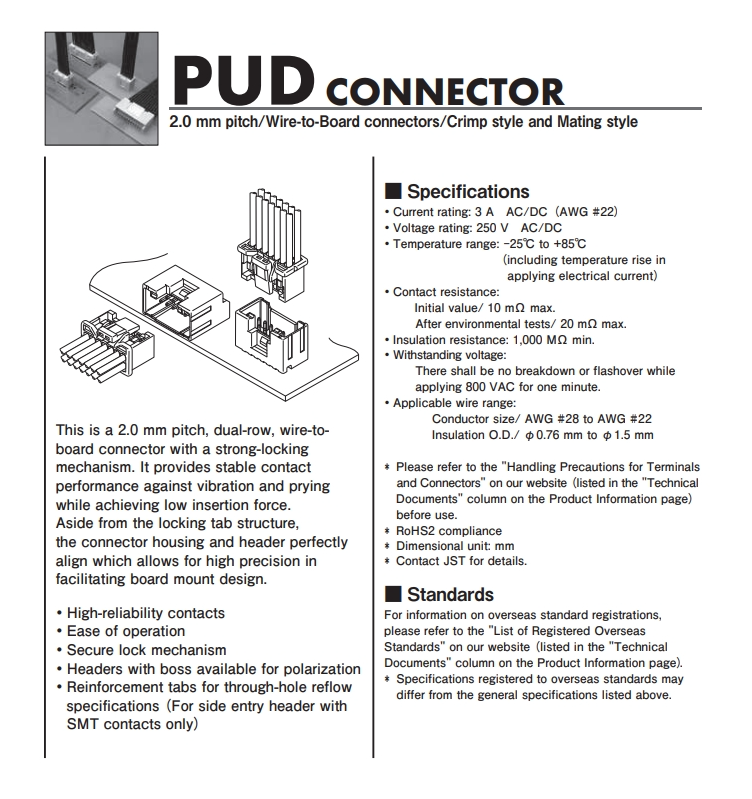

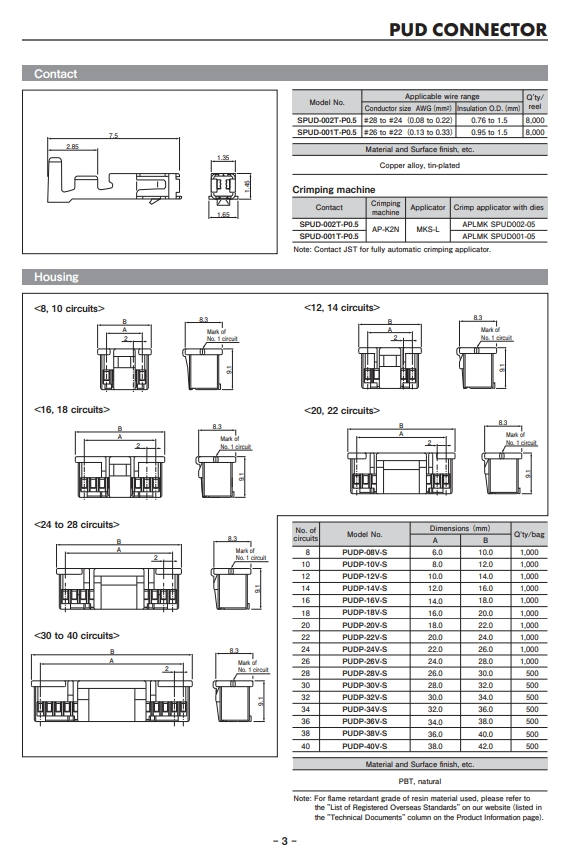

Product datasheet
For more information, please download
