Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Hot sale original 505110-3591 Card Edge Connector 35 Contact(s) 1 Row(s) Right Angle 0.019 inch Pitch
Manufacturer Product Number
505110-3591
Description
505110-3591 Card Edge Connector 35 Contact(s) 1 Row(s) Right Angle 0.019 inch Pitch Surface Mount Terminal Locking Beige Insulator
Package Condition
Original
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
| Type# | Description |
| ANSC PART# | ANSC -505110-3591 |
| Manufacturer | / |
| Factory Lead Time | 13 Weeks |
| Samacsys Manufacturer | / |
| Board Mounting Option | FITTING NAIL |
| Body Breadth | 0.075 inch |
| Body Depth | 0.159 inch |
| Body Length | 0.874 inch |
| Connector Type | FFC/FPC CONNECTOR |
| Contact Finish Mating | AU ON NI |
| Contact Material | PHOSPHOR BRONZE |
| Contact Pattern | RECTANGULAR |
| Contact Resistance | 40 mΩ |
| Contact Style | BELLOWED TYPE |
| Dielectric Withstanding Voltage | 125VAC V |
| Durability | 10 Cycles |
| Insertion Force-Max | ZIF N |
| Insulation Resistance | 50000000 Ω |
| Insulator Color | BEIGE |
| Insulator Material | GLASS FILLED LIQUID CRYSTAL POLYMER |
| Mating Contact Pitch | 0.019 inch |
| Mounting Option 1 | LOCKING |
| Mounting Style | RIGHT ANGLE |
| Mounting Type | BOARD |
| Number Of PCB Rows | 1 |
| Number of Rows Loaded | 1 |
| Operating Temperature-Max | 105 °C |
| Operating Temperature-Min | -40 °C |
| PCB Contact Pattern | RECTANGULAR |
| Plating Thickness | 2u inch |
| Rated Current (Signal) | 0.5 A |
| Reference Standard | UL |
| Reliability | COMMERCIAL |
| Terminal Pitch | 0.4826 mm |
| Termination Type | SURFACE MOUNT |
| Total Number of Contacts | 35 |

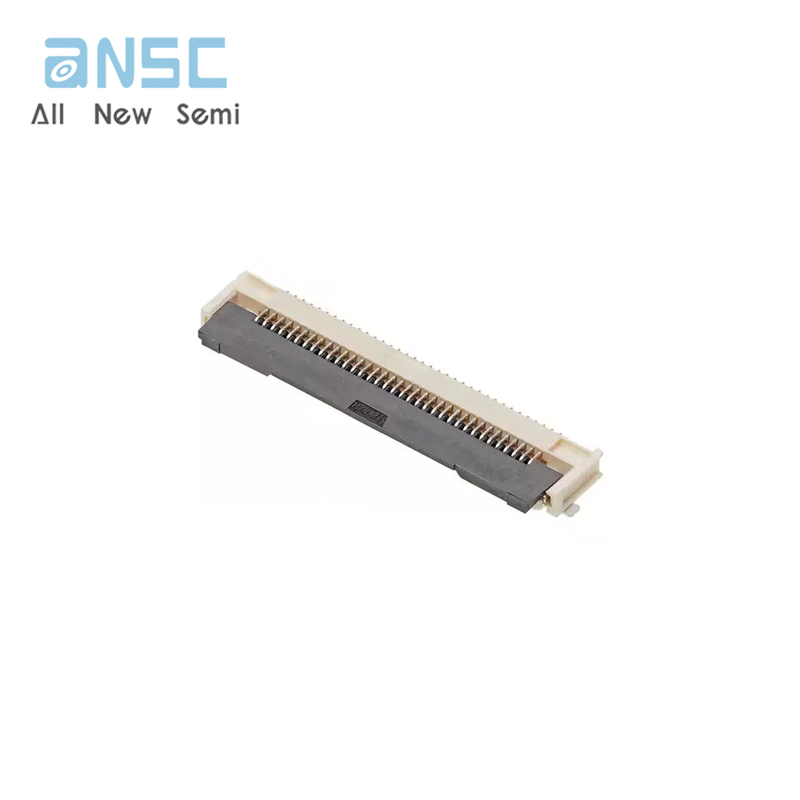

Actual image of the product

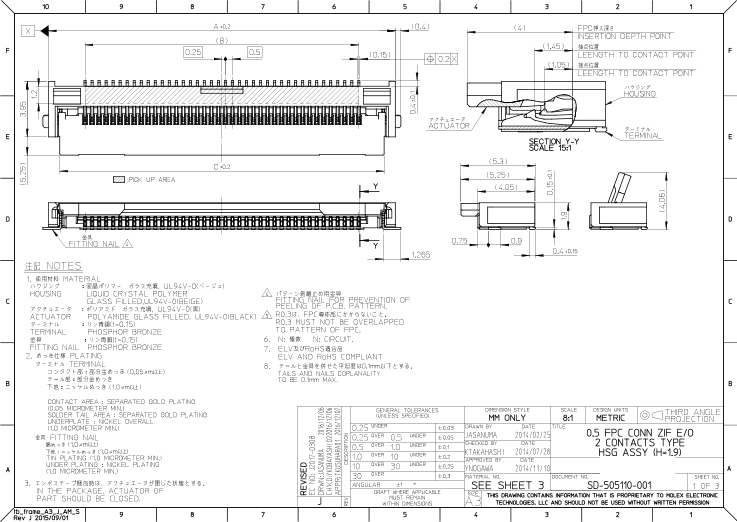

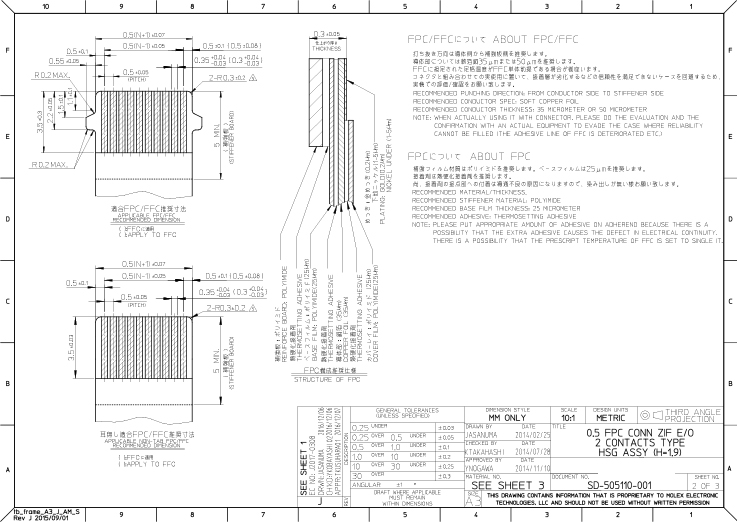

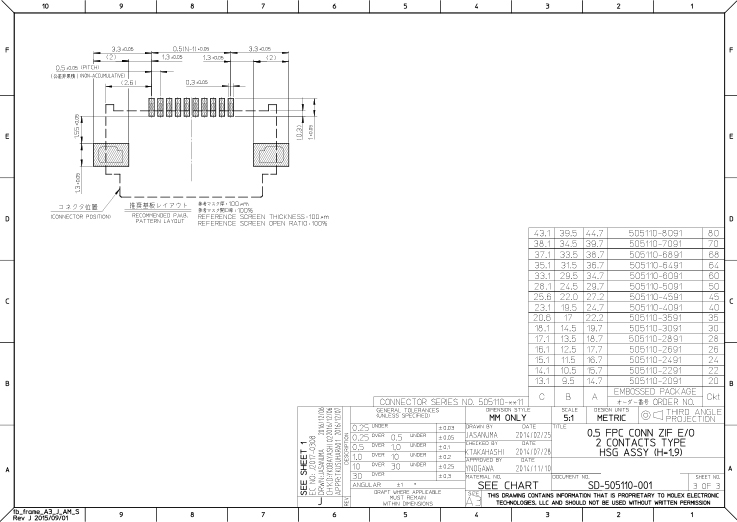

Product datasheet
For more information, please download
Payment&Transportation
Official Certificate&Certificate
Standard packaging
Multiple product supply
Welcome to visit our company
Warehouse Real Shot
