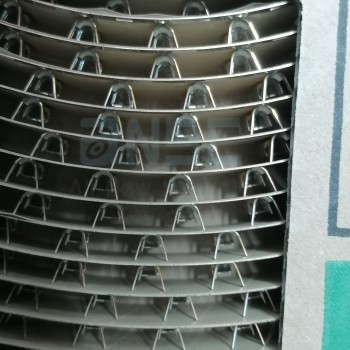

Hot offer Original stock JST connector SVF-61T-P2.0 terminal Phosphor Bronze Material wire gauge 14-20AWG
Manufacturer Product Number
SVF-61T-P2.0
Description
Socket Contact Tin 14-20 AWG Crimp
Package Condition
Original
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Specifications
• Current rating: 20 A AC, DC (Refer to the following table.)
• Voltage rating: 600 V AC, DC
• Temperature range: -25˚C to +90˚C (including temperature rise in applying electrical current)
• Contact resistance: Initial value/ 7 mΩ max. After environmental tests/ 10 mΩ max.
• Insulation resistance: 1,000 MΩ min.
• Withstanding voltage: 2,000 VAC/minute
• Applicable wire: AWG #22 to #12
• Applicable PC board thickness: 1.6 mm
* In using the products, refer to "Handling Precaution for Terminal and Connector" described on our website (Technical documents of Product information page).
* Contact JST for details.
* RoHS2 compliance
Note: The current rating differs depending on the number of circuits and the wire size used in each connector. The table below lists the current rating as a function of the number of circuits and the wire size.
| Attribute | Attribute value |
| Model | SVF-61T-P2.0 |
| Category | Connectors, Interconnects |
| Rectangular Connectors | |
| Rectangular Connector Contacts | |
| Manufacturer | - |
| Series | VL |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Part Status | Active |
| Type | - |
| Pin or Socket | Socket |
| Contact Termination | Crimp |
| Wire Gauge | 14-20 AWG |
| Contact Finish | Tin |
| Contact Finish Thickness | - |
| Base Product Number | SVF-61 |
