Original SEAF-30-05.0-L-04-1-A-K-TR Board-to-board and mezzanine connectors .050 SEARAY High-Speed High-Density
Manufacturer
Manufacturer Product Number
SEAF-30-05.0-L-04-1-A-K-TR
Description
SEAF-30-05.0-L-04-1-A-K-TR Board-to-board and mezzanine connectors .050 SEARAY High-Speed High-Density Open-Pin-Field Array Socket
Package Condition
Tape & Reel (TR)
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
| Product attributes | Attribute value |
| PART# | SEAF-30-05.0-L-04-1-A-K-TR |
| Manufacturer: | / |
| Product Types: | Board-to-board vs. mezzanine connectors |
| Products: | Headers |
| Number of Locations: | 120 Position |
| Pitch: | 1.27 mm (0.05 in) |
| Number of rows: | 4 Row |
| Termination Type: | Solder |
| Mounting angle: | Straight |
| Stacking Height: | 7 mm |
| Current Rating: | 2.7 A |
| Voltage Rating: | 240 VAC |
| Minimum Operating Temperature: | - 55 C |
| Maximum Operating Temperature: | + 125 C |
| Contact plating: | Gold |
| Contact Material: | Copper Alloy |
| Housing Material: | Liquid Crystal Polymer (LCP) |
| Series: | SEAF |
| Package: | Reel |
| Applications: | Power, Signal |
| Trademarks: | / |
| Flammability Rating: | UL 94 V-0 |
| Installation style: | SMD/SMT |
| Product Type: | Board to Board & Mezzanine Connectors |
| Subcategories: | Board to Board & Mezzanine Connectors |
| Brand Name: | / |

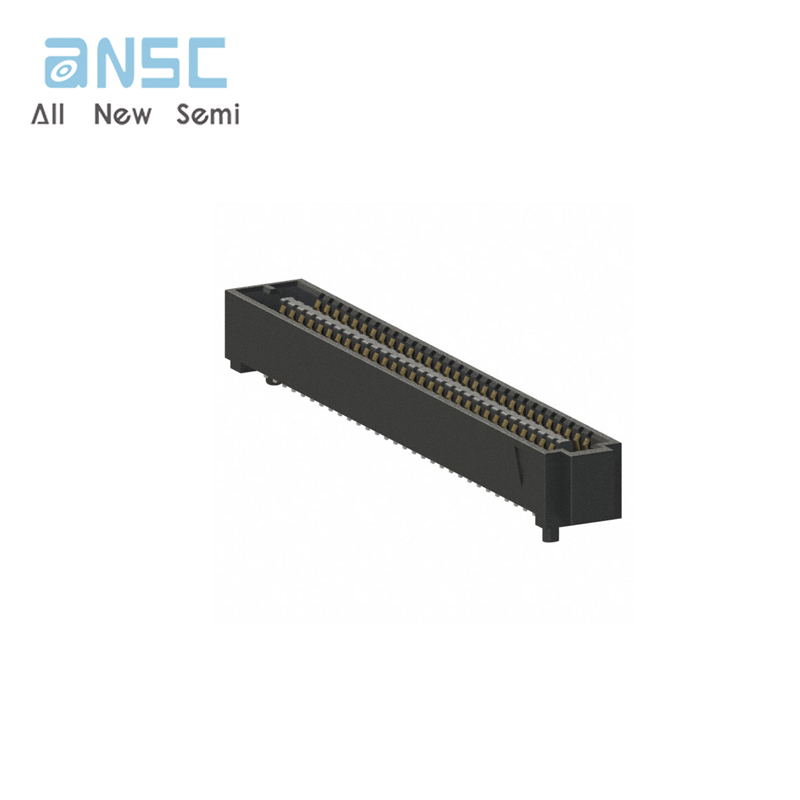

Actual image of the product
