Original FFB0424VHN Fan Tube Shaft 24VDC Square - 40mm L x 40mm H Ball 15.8 CFM (0.442m³/min) 2 leads
Manufacturer
Manufacturer Product Number
FFB0424VHN
Description
FFB0424VHN FAN AXIAL 40X28MM 24VDC WIRE
Package Condition
box
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
|
Type |
Description |
|---|---|
|
PART# |
FFB0424VHN |
|
category |
Fans, fans, thermal management Fan Brushless DC Fan (BLDC) |
|
manufacturer |
/ |
|
series |
FFB |
|
Packaging |
box |
|
Part status |
On sale |
|
Voltage - Rating |
24VDC |
|
Size / Dimensions |
Square - 40mm long x 40mm high |
|
Width |
28.00mm |
|
Airflow |
15.8 CFM (0.442 m³/min) |
|
Static pressure |
0.509" water column (126.8 Pa) |
|
Bearing type |
Roll-on |
|
Fan type |
Tube shaft type |
|
Characteristics |
Rotor locking protection |
|
Noise |
45.0dB（A） |
|
Power (W) |
2.4 W |
|
RPM |
9500 RPM |
|
Termination |
2 leads |
|
Intrusion protection |
- |
|
Operating temperature |
14 ~ 140°F（-10 ~ 60°C） |
|
Certification body |
CE，CSA，UL，VDE |
|
weight |
0.071 lbs (32.21 g) |
|
Rated current (amps) |
0.100A |
|
Voltage range |
14 ~ 26.4VDC |
|
Material - frame |
plastic |
|
Material – inserts |
plastic |
|
Service life at different temperatures |
70000 hours @ 40°C |
|
Base product number |
FFB0424 |

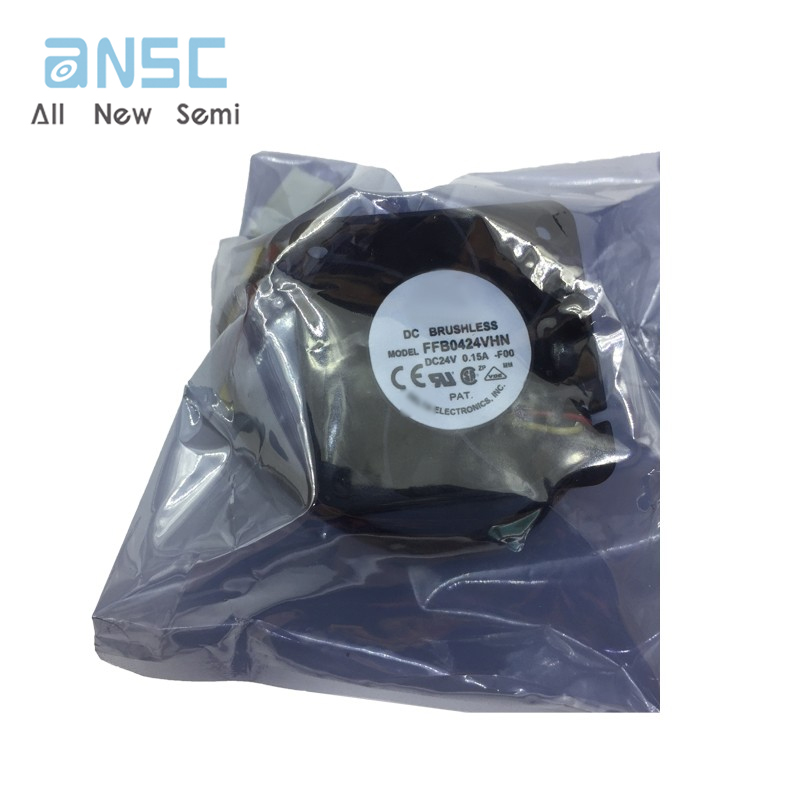

Actual image of the product
