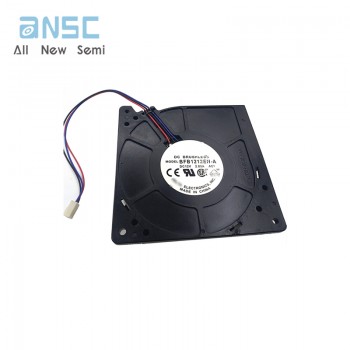

BFB1212EH-A 12032 blower fan 12v dc brushless blower fan
Manufacturer Product Number
BFB1212EH-A
Description
BFB1212EH-A Fan Blower 12VDC Square/Rounded - 120mm L x 120mm H Ball 54.9 CFM (1.54m³/min) 2 Wire Leads
Package Condition
Bulk
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
|
Type |
Description |
|---|---|
|
PART# |
BFB1212EH-A |
|
Category |
Fans, Blowers, Thermal Management Fans DC Brushless Fans (BLDC) |
|
Mfr |
/ |
|
Series |
BFB |
|
Packaging |
Bulk |
|
Part Status |
Active |
|
Voltage - Rated |
12VDC |
|
Size / Dimension |
Square/Rounded - 120mm L x 120mm H |
|
Width |
32.00mm |
|
Air Flow |
54.9 CFM (1.54m³/min) |
|
Static Pressure |
3.485 in H2O (868.1 Pa) |
|
Bearing Type |
Ball |
|
Fan Type |
Blower |
|
Features |
Locked Rotor Protection |
|
Noise |
62.0dB(A) |
|
Power (Watts) |
28.44 W |
|
RPM |
4000 RPM |
|
Termination |
2 Wire Leads |
|
Ingress Protection |
- |
|
Operating Temperature |
14 ~ 140°F (-10 ~ 60°C) |
|
Approval Agency |
CE, CSA, UL, VDE |
|
Weight |
0.661 lb (299.82 g) |
|
Current Rating (Amps) |
2.37A |
|
Voltage Range |
5.5 ~ 13.8VDC |
|
Material - Frame |
Plastic |
|
Material - Blade |
Plastic |
|
Lifetime @ Temp. |
50000 Hrs @ 40°C |
|
Base Product Number |
BFB1212 |
Actual image of the product
