Original BFB0512HH Fan Blower 12VDC Square/Round - 51.3mm L x 51mm H Ball 4.6 CFM (0.129m³/min) 2 Leads
Manufacturer Product Number
BFB0512HH
Description
BFB0512HH FAN BLOWER 51.3X15MM 12VDC WIRE
Package Condition
Box
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
|
Type |
Description |
|---|---|
|
PART# |
BFB0512HH |
|
category |
Fans, fans, thermal management Fan Brushless DC Fan (BLDC) |
|
manufacturer |
/ |
|
series |
BFB |
|
Packaging |
Bulk |
|
Part status |
On sale |
|
Voltage - Rating |
12VDC |
|
Size / Dimensions |
Square/Round - 51.3mm long x 51mm high |
|
Width |
15.00mm |
|
Airflow |
4.6 CFM (0.129 m³/min) |
|
Static pressure |
0.866" water column (215.7 Pa) |
|
Bearing type |
Roll-on |
|
Fan type |
Blower |
|
Characteristics |
Rotor locking protection |
|
Noise |
45.0dB（A） |
|
Power (W) |
2.52 W |
|
RPM |
6500 RPM |
|
Termination |
2 leads |
|
Intrusion protection |
- |
|
Operating temperature |
14 ~ 158°F（-10 ~ 70°C） |
|
Certification body |
CE，CSA，UL，VDE |
|
weight |
0.062 lbs (28.12 g) |
|
Rated current (amps) |
0.210A |
|
Voltage range |
10 ~ 13.8VDC |
|
Material - frame |
plastic |
|
Material – inserts |
plastic |
|
Service life at different temperatures |
50000 hours @ 40°C |
|
Base product number |
BFB0512 |

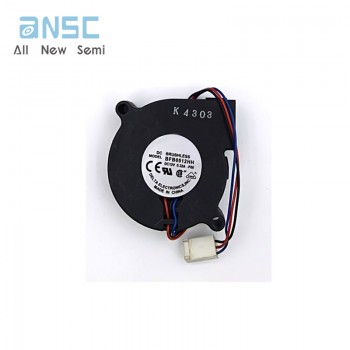

Actual image of the product
