cheap 12cm cooling fan DC48V fan AFB1248HE 12038 cooling fan
Manufacturer
Manufacturer Product Number
AFB1248HE
Description
AFB1248HE FAN AXIAL 120X38MM 48VDC WIRE
Package Condition
Bulk
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
|
Type |
Description |
|---|---|
|
PART# |
AFB1248HE |
|
Category |
Fans, Blowers, Thermal Management Fans DC Brushless Fans (BLDC) |
|
Mfr |
/ |
|
Series |
AFB |
|
Packaging |
Bulk |
|
Part Status |
Obsolete |
|
Voltage - Rated |
48VDC |
|
Size / Dimension |
Square - 120mm L x 120mm H |
|
Width |
38.00mm |
|
Air Flow |
105.9 CFM (2.97m³/min) |
|
Static Pressure |
0.300 in H2O (74.7 Pa) |
|
Bearing Type |
Ball |
|
Fan Type |
Tubeaxial |
|
Features |
Locked Rotor Protection |
|
Noise |
41.0dB(A) |
|
Power (Watts) |
5.76 W |
|
RPM |
2600 RPM |
|
Termination |
2 Wire Leads |
|
Ingress Protection |
- |
|
Operating Temperature |
14 ~ 140°F (-10 ~ 60°C) |
|
Approval Agency |
CE, CSA, UL, VDE |
|
Weight |
0.565 lb (256.28 g) |
|
Current Rating (Amps) |
0.120A |
|
Voltage Range |
28 ~ 56VDC |
|
Material - Frame |
Plastic |
|
Material - Blade |
Plastic |
|
Lifetime @ Temp. |
70000 Hrs @ 40°C |
|
Base Product Number |
AFB1248 |

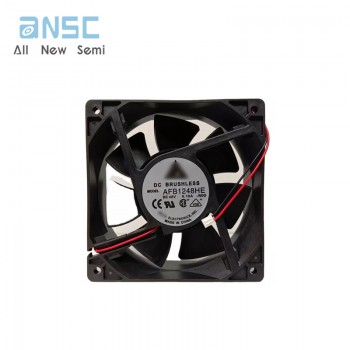

Actual image of the product
How to get a Quote
Please provide:
1. Fan size (including cable and plug)
2.DC or AC or EC
3. Voltage, Current, Speed / Air volume
4. Air outlet requirements
5. F or G or I type
6. Bearing requirements
7. Quantity
8. Other functions: (FG RD RDL LD PWM TP VC RC CS RP SS AS CL IPX5 IPX8 LED ?)
9. Special requirements / Equipment / Environment (if any)
