Original Centrifugal fan R3G310-RS01-I1 200-277V 3.2A 730W 310mm 2640RPM Purification centrifugal fan
Manufacturer
Manufacturer Product Number
R3G310-RS01-I1
Description
200-277V 3.2A 730W 310mm 2640RPM Purification centrifugal fan
Package Condition
Bulk
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
|
Type |
Description |
|---|---|
|
PART# |
R3G310-RS01-I1 |
|
Category |
Fans, Blowers, Thermal Management Fans AC Fans |
|
Manufacturer |
/ |
|
Series |
RadiCal® R3G310RS |
|
Packaging |
Bulk |
|
Part Status |
Active |
|
Voltage - Rated |
230VAC |
|
Size / Dimension |
Round - 325mm Dia |
|
Width |
232.1mm |
|
Air Flow |
1418.5 CFM (39.72m³/min) |
|
Static Pressure |
2.653 in H2O (661.0 Pa) |
|
Bearing Type |
Ball |
|
Fan Type |
Motorized Impellers |
|
Features |
PWM Control, Thermal Overload Protector (TOP) |
|
Noise |
75.0dB(A) |
|
Power (Watts) |
730W |
|
RPM |
2640 RPM |
|
Termination |
5 Wire Leads, 5 Wire Leads |
|
Ingress Protection |
IP54 - Dust Protected, Water Resistant |
|
Operating Temperature |
-13 ~ 140°F (-25 ~ 60°C) |
|
Approval Agency |
CCC, CSA, EAC, UL |
|
Current Rating (Amps) |
3.20A |
|
Voltage Range |
200 ~ 277VAC |
|
Material - Frame |
Aluminum |
|
Material - Blade |
Plastic |
|
Lifetime @ Temp. |
- |
|
Base Product Number |
R3G310 |

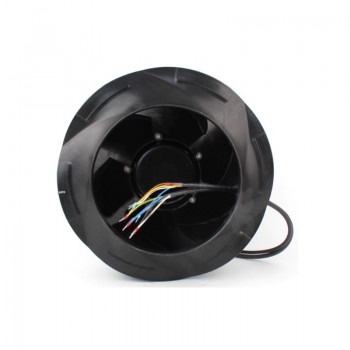

Actual image of the product
