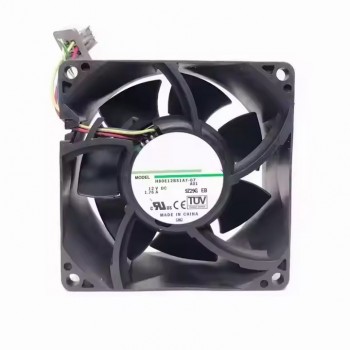

Factory price H80E12BS1A7-07 8038 8CM 12V 1.76A 4-wire cooling fan
Model: H80E12BS1A7-07
Origin: China External dimensions: 80 * 80 * 38mm Rated voltage: 12V Working voltage: 10.2-13.8V Rated current: 1.76A Input power: 20.76W Speed: 7800RPM ± 5%, supports PWM intelligent speed regulation Plug: Standard motherboard 4P interface, with a wire length of approximately 20 centimeters Fan frame: one-time injection molding, PBT+30% fiberglass+VO grade flame retardant; Fan blade: one-time injection molding, PBT+30% fiberglass+VO grade flame retardant; Fan rotation direction: counterclockwise when viewed from the direction of the fan blades; Operating temperature: -10 ° C to+70 ° C; Storage temperature: -40 ° C to+70 ° C; Bearings: High precision double ball bearings; Power range: plus or minus 15% of the rated power supply; Insulation resistance: greater than 500 megaohms; Voltage withstand: leakage current of 0.5mA 500V/1 minute; Working life: 80000 hours at an ambient temperature of θ 25 degrees. This fan is a violent fan with super strong air volume and very loud sound. It supports PWM intelligent temperature control technology. Special fan, please carefully consider before purchasing. This fan is suitable for use in computer rooms or servers, and as it supports PWM temperature control technology, it is also a very good choice for overclocking players.Origin: China External dimensions: 80*80* 38mm Rated voltage: 12V Working voltage: 10.2-13.8V Rated current: 1.76A Input power: 20.76W Speed: 7800RPM ± 5%, supports PWM intelligent speed regulation Plug: Standard motherboard 4P interface, with a wire length of approximately 20 centimeters Fan frame: one-time injection molding, PBT+30% fiberglass+VO grade flame retardant; Fan blade: one-time injection molding, PBT+30% fiberglass+VO grade flame retardant; Fan rotation direction: counterclockwise when viewed from the direction of the fan blades; Operating temperature: -10 ° C to+70 ° C; Storage temperature: -40 ° C to+70 ° C; Bearings: High precision double ball bearings; Power range: plus or minus 15% of the rated power supply; Insulation resistance: greater than 500 megaohms; Voltage withstand: leakage current of 0.5mA 500V/1 minute; Working life: 80000 hours at an ambient temperature of θ 25 degrees. This fan is a violent fan with super strong air volume and very loud sound. It supports PWM intelligent temperature control technology. Special fan, please carefully consider before purchasing. This fan is suitable for use in computer rooms or servers, and as it supports PWM temperature control technology, it is also a very good choice for overclocking players.
|
