Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
12025 12cm 120mm DC 12V 1.24A server inverter case axial Cooling Fan 2PIN/3PIN/4PIN FFB1212SH
Manufacturer
Manufacturer Product Number
FFB1212SH
Description
FFB1212SH FAN AXIAL 120X25.4MM 12VDC WIRE
Package Condition
Bulk
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
|
Type |
Description |
|---|---|
|
PART# |
FFB1212SH |
|
category |
Fans, fans, thermal management Fan Brushless DC Fan (BLDC) |
|
manufacturer |
/ |
|
series |
FFB |
|
Packaging |
Bulk |
|
Part status |
Discontinued |
|
Voltage - Rating |
12VDC |
|
Size / Dimensions |
Square - 120mm long x 120mm high |
|
Width |
25.40mm |
|
Airflow |
140.0 CFM (3.92 m³/min) |
|
Static pressure |
0.419" water column (104.4 Pa) |
|
Bearing type |
Roll-on |
|
Fan type |
Tube shaft type |
|
Characteristics |
Rotor locking protection |
|
Noise |
54.3dB（A） |
|
Power (W) |
12.36 W |
|
RPM |
3700 RPM |
|
Termination |
2 leads |
|
Intrusion protection |
- |
|
Operating temperature |
14~140°F(-10~60°C) |
|
Certification body |
CE,CSA,UL,VDE |
|
weight |
0.816 lbs (370.13 g) |
|
Rated current (amps) |
1.03A |
|
Voltage range |
7 ~ 13.2VDC |
|
Material - frame |
plastic |
|
Material – inserts |
plastic |
|
Service life at different temperatures |
70000 hours @ 40°C |
|
Base product number |
FFB1212 |

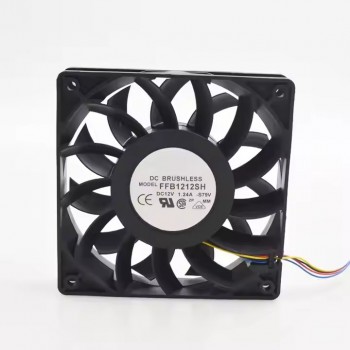

Actual image of the product
