Original Axial flow fan 4314U 12032 24V 5.7W IP68 compact fan
Manufacturer
Manufacturer Product Number
4314U
Description
Axial flow fan 4314U 12032 24V 5.7W IP68 compact fan
Package Condition
Box
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
|
Type |
Description |
|---|---|
|
PART# |
4314U |
|
Category |
Fans, Blowers, Thermal Management Fans DC Brushless Fans (BLDC) |
|
Mfr |
/ |
|
Series |
4300U |
|
Packaging |
Box |
|
Part Status |
Active |
|
Voltage - Rated |
24VDC |
|
Size / Dimension |
Square - 119mm L x 119mm H |
|
Width |
32.00mm |
|
Air Flow |
100.1 CFM (2.80m³/min) |
|
Static Pressure |
- |
|
Bearing Type |
Ball |
|
Fan Type |
Tubeaxial |
|
Features |
- |
|
Noise |
45.0dB(A) |
|
Power (Watts) |
5 W |
|
RPM |
2800 RPM |
|
Termination |
2 Wire Leads |
|
Ingress Protection |
IP68 - Dust Tight, Waterproof |
|
Operating Temperature |
-4 ~ 167°F (-20 ~ 75°C) |
|
Approval Agency |
CE, CSA, UL, VDE |
|
Weight |
0.5 lb (226.8 g) |
|
Current Rating (Amps) |
0.210A |
|
Voltage Range |
12 ~ 28VDC |
|
Material - Frame |
Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
|
Material - Blade |
Polyamide (PA), Nylon, Fiberglass Reinforced |
|
Lifetime @ Temp. |
62500 Hrs @ 40°C |

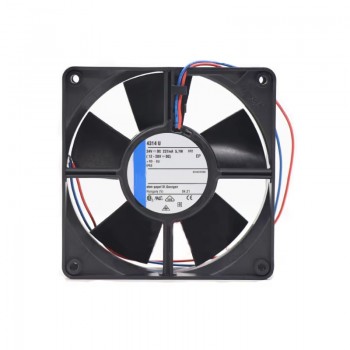

Actual image of the product
