Original Axial fan 4656Z 12038 220V 120mA All-metal case cooling fan
Manufacturer
Manufacturer Product Number
4656Z
Description
4656Z FAN AXIAL 119X38MM 230VAC TERM
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
|
Type |
Description |
|---|---|
|
PART# |
4656Z |
|
category |
Fans, blowers, thermal management fan AC fan |
|
manufacturer |
/ |
|
series |
4000Z |
|
Packaging |
Bulk |
|
Part status |
Sourced |
|
Voltage - Rating |
230 VAC |
|
Size: |
Square - 119mm long x 119mm high |
|
width |
38.00mm |
|
Airflow |
94.1 CFM (2.63m³/min) |
|
Static pressure |
- |
|
Bearing type |
Roll-on |
|
Fan type |
Tube shaft type |
|
Features |
- |
|
Noise |
40.0dB(A) |
|
Power (W) |
19.00W |
|
RPM |
2650RPM |
|
terminals |
2 Terminals |
|
Intrusion Protection |
- |
|
operating temperature |
-40 ~ 167°F (-40 ~ 75°C) |
|
certification body |
CE、CSA、UL、VDE |
|
weight |
1.2 lbs (544.3 g) |
|
Rated Current (A) |
- |
|
Voltage range |
- |
|
Material - frame |
metal |
|
Material - inserts |
metal |
|
Lifetime @ temperature |
40 hours at 37500°C |
|
Base product number |
4656 |

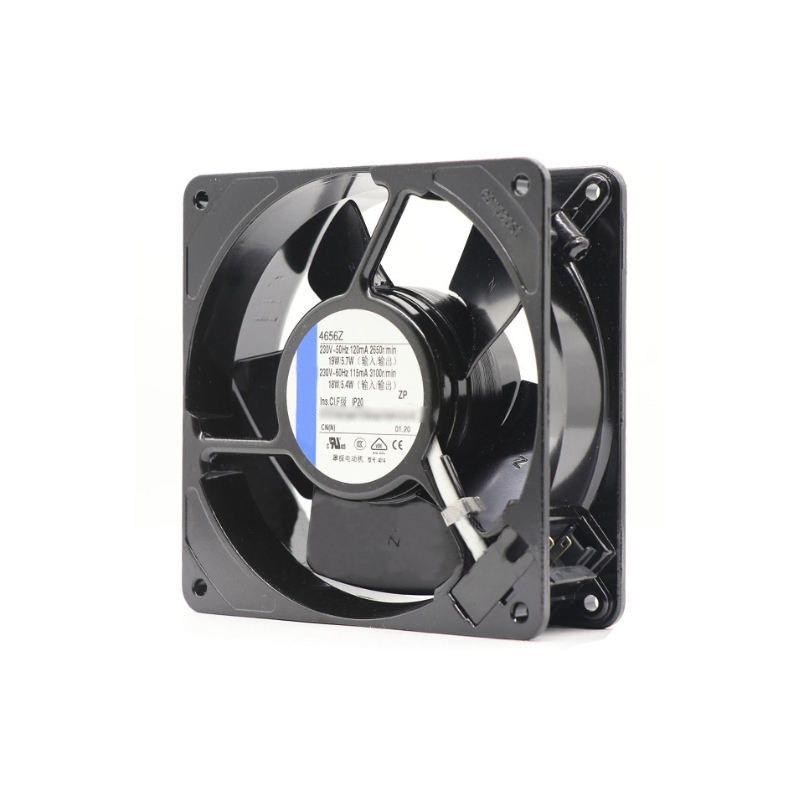

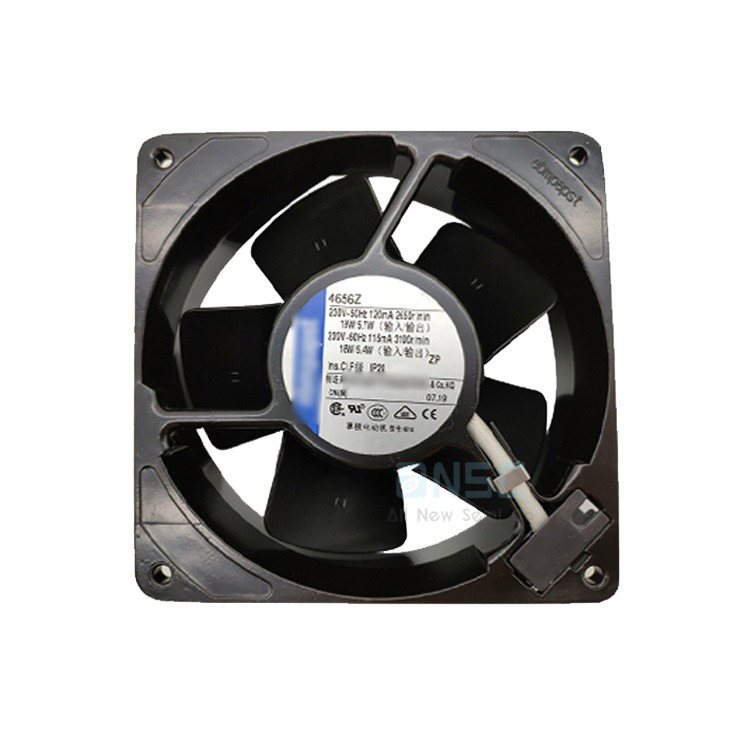

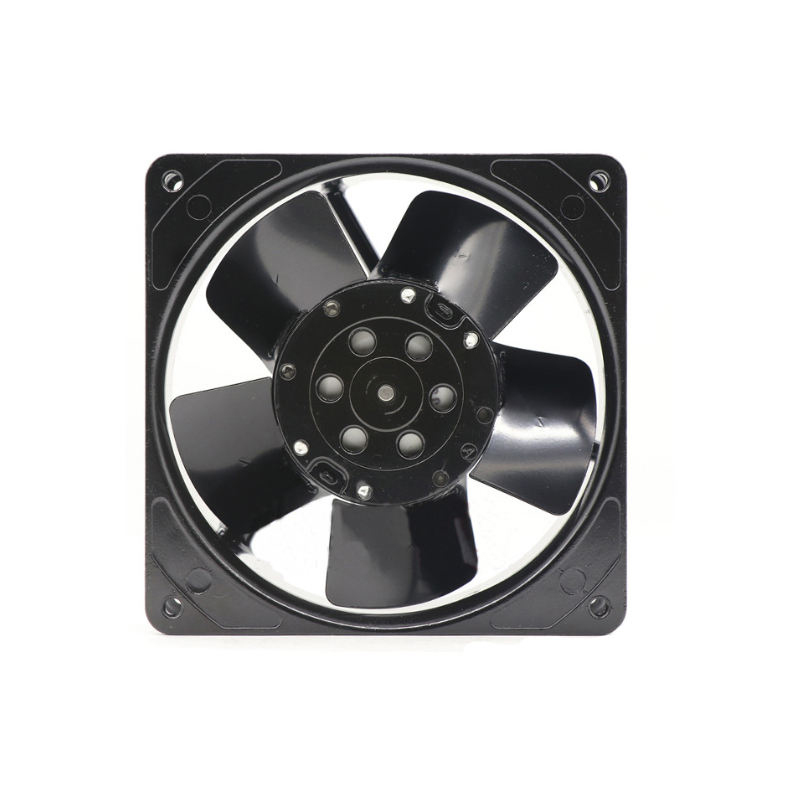

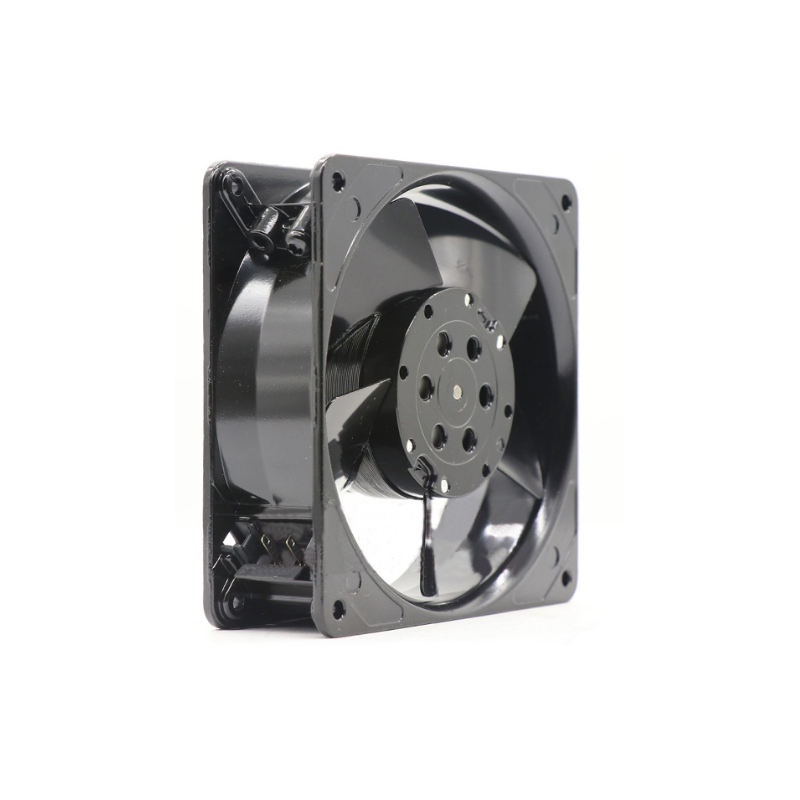

Actual image of the product
