Original Axial flow fan 3312U 9232 12V 0.2A IP68 2.4W 3000RPM Waterproof 9cm Computer fan
Manufacturer
Manufacturer Product Number
3312U
Description
3312U Fan Tubeaxial 12VDC Square - 92mm L x 92mm H Ball 47.1 CFM (1.32m³/min) 2 Wire Leads
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
|
Type |
Description |
|---|---|
|
PART# |
3312U |
|
Category |
Fans, Blowers, Thermal Management Fans DC Brushless Fans (BLDC) |
|
Mfr |
/ |
|
Series |
3300U |
|
Packaging |
Bulk |
|
Part Status |
Obsolete |
|
Voltage - Rated |
12VDC |
|
Size / Dimension |
Square - 92mm L x 92mm H |
|
Width |
32.00mm |
|
Air Flow |
47.1 CFM (1.32m³/min) |
|
Static Pressure |
- |
|
Bearing Type |
Ball |
|
Fan Type |
Tubeaxial |
|
Features |
- |
|
Noise |
37.0dB(A) |
|
Power (Watts) |
2.4 W |
|
RPM |
3000 RPM |
|
Termination |
2 Wire Leads |
|
Ingress Protection |
IP68 - Dust Tight, Waterproof |
|
Operating Temperature |
-4 ~ 167°F (-20 ~ 75°C) |
|
Approval Agency |
CE, CSA, UL, VDE |
|
Weight |
0.419 lb (190.06 g) |
|
Current Rating (Amps) |
- |
|
Voltage Range |
6 ~ 15VDC |
|
Material - Frame |
Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
|
Material - Blade |
Polyamide (PA), Nylon, Fiberglass Reinforced |
|
Lifetime @ Temp. |
- |

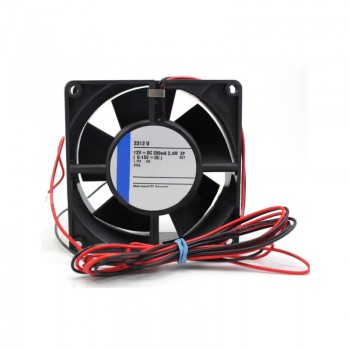

Actual image of the product
