Original Axial fan 414JH 24V 2.7W 4CM 4025 Inverter fan
Manufacturer
Manufacturer Product Number
414JH
Description
414JH Fan Tubeaxial 24VDC Square - 40mm L x 40mm H Ball 12.9 CFM (0.361m³/min) 2 Wire Leads
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
|
Type |
Description |
|---|---|
|
PART# |
414JH |
|
Category |
Fans, Blowers, Thermal Management Fans DC Brushless Fans (BLDC) |
|
Mfr |
/ |
|
Series |
400J |
|
Packaging |
Bulk |
|
Part Status |
Active |
|
Voltage - Rated |
24VDC |
|
Size / Dimension |
Square - 40mm L x 40mm H |
|
Width |
25.40mm |
|
Air Flow |
12.9 CFM (0.361m³/min) |
|
Static Pressure |
- |
|
Bearing Type |
Ball |
|
Fan Type |
Tubeaxial |
|
Features |
- |
|
Noise |
43.0dB(A) |
|
Power (Watts) |
3 W |
|
RPM |
11700 RPM |
|
Termination |
2 Wire Leads |
|
Ingress Protection |
- |
|
Operating Temperature |
-4 ~ 158°F (-20 ~ 70°C) |
|
Approval Agency |
CSA, UL, VDE |
|
Weight |
0.111 lb (50.35 g) |
|
Current Rating (Amps) |
- |
|
Voltage Range |
18 ~ 27VDC |
|
Material - Frame |
Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
|
Material - Blade |
Polyamide (PA), Nylon, Fiberglass Reinforced |
|
Lifetime @ Temp. |
57500 Hrs @ 20°C |
|
Base Product Number |
414J |

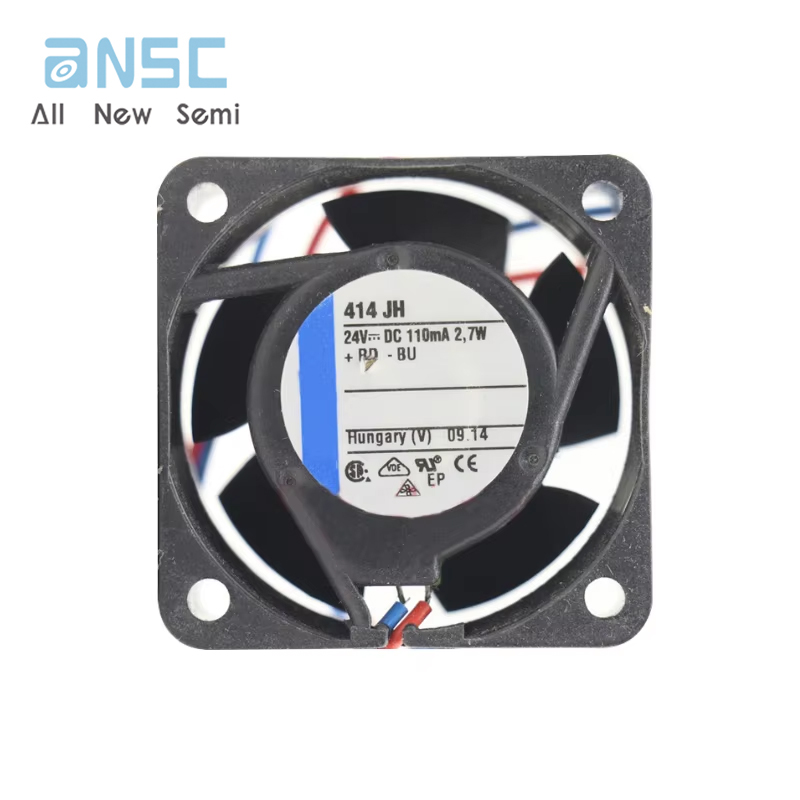

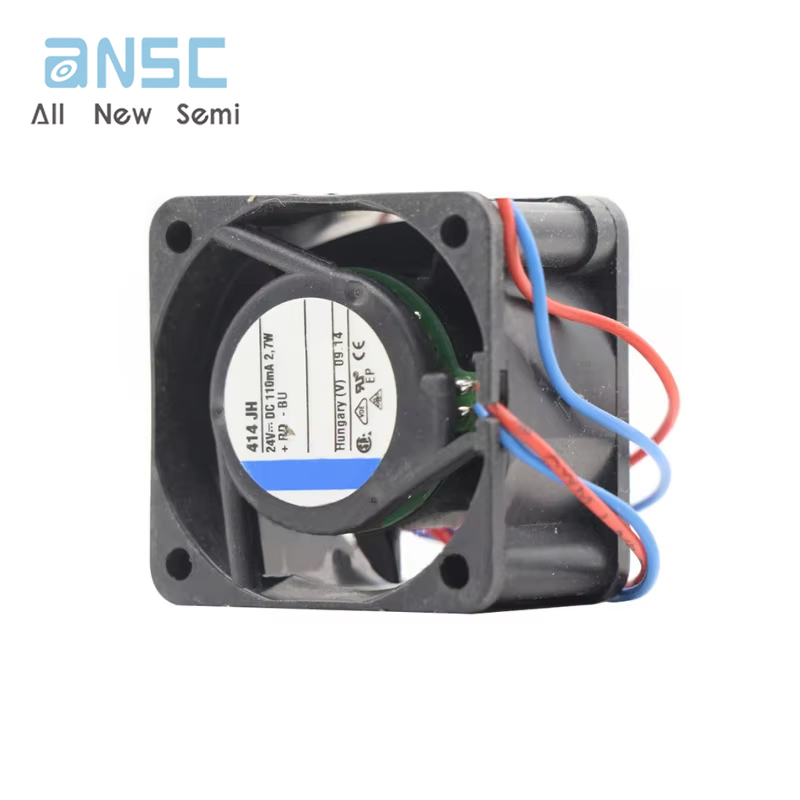

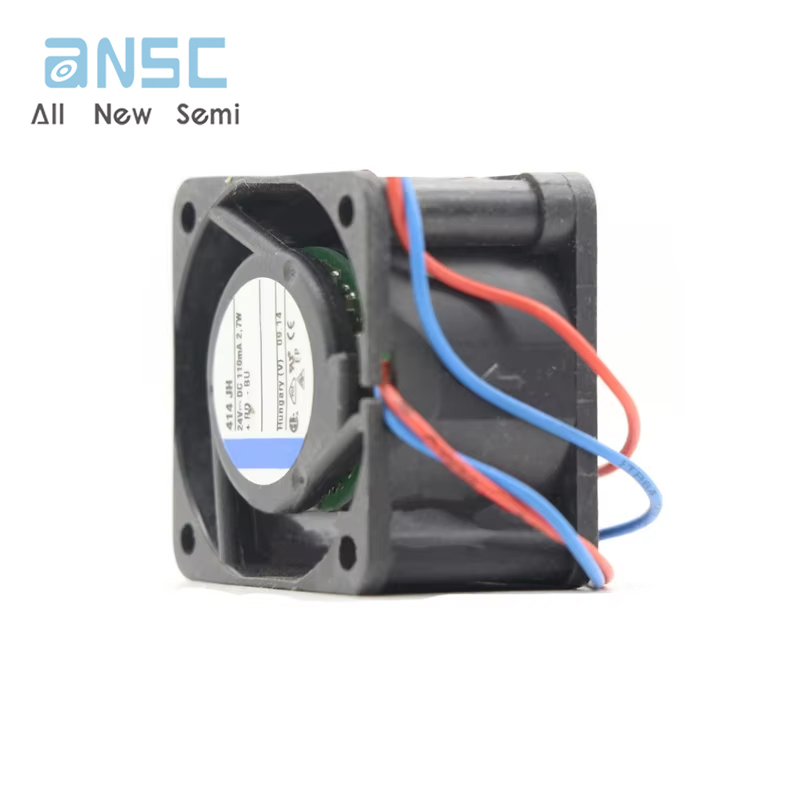

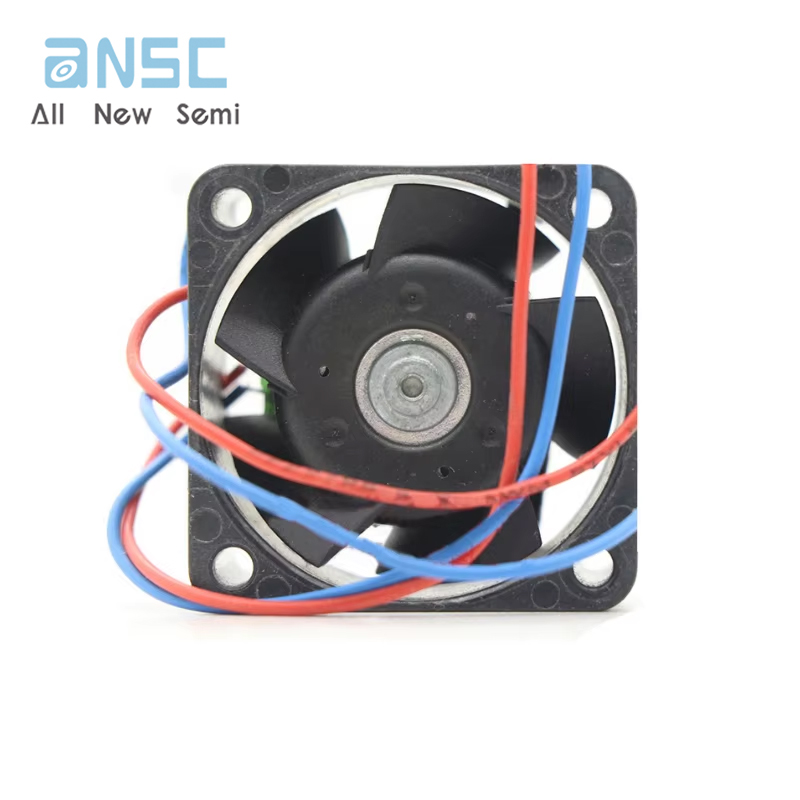

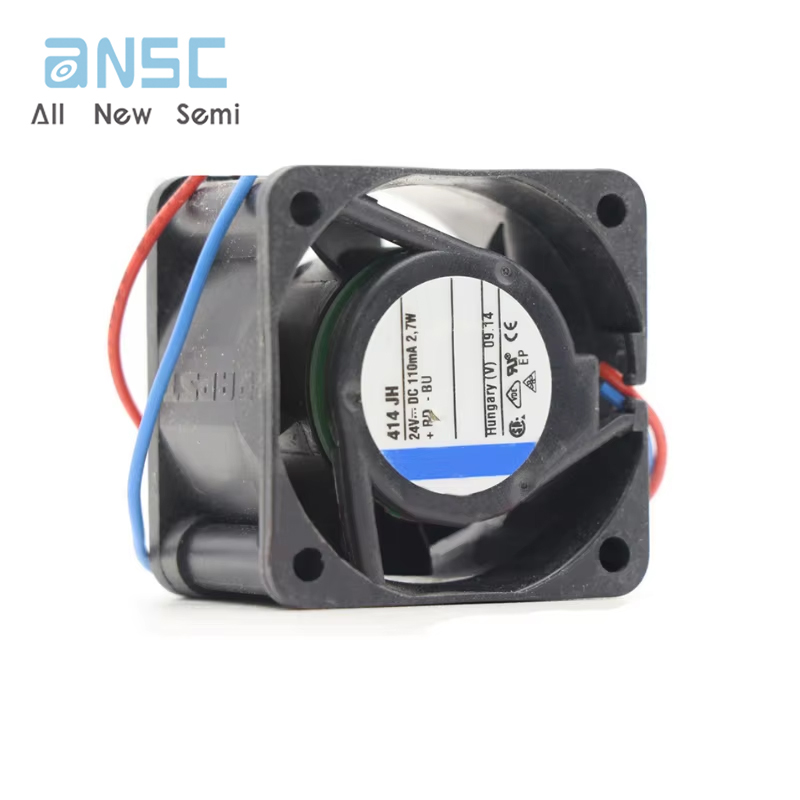

Actual image of the product
