Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Original Axial fan W2E143-AB09-01/F01 Iron leaf 17251 230V High temperature resistant fan
Manufacturer
Manufacturer Product Number
W2E143-AB09-01/F01
Description
W2E143-AB09-01/F01 Iron leaf 17251 230V High temperature resistant fan
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
| Model | W2E143-AB09-01/F01 |
| Brand | / |
| Type | Axial flow fan |
| Scope of application | Equipment in the field of industrial ventilation |
| Finish | brand new |
| Voltage | 230V |
| Frequency | 50/60Hz |
| Power | 24/30W |
| Current | 0.12A |
| Speed | 2800/3300r/min |
| Dimensions | Fan blade diameter 143mm |
| Capacitance | 0.75μF |
| Air volume | 420m³/h |
| Weight | 0.91kg |
| Blade material | black painted thin steel plate |
| Housing material | black painted die-cast aluminum |
| Number of blades | 5 |
| Rotation direction | counterclockwise from the rotor end |
| Degree of protection | IP20 |
| Insulation Grade | B |
| Ambient temperature | -40~80°C |
| Bearing | Ball bearing |

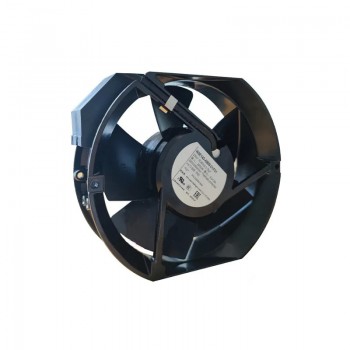

Actual image of the product
