Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Original Axial flow fan 3214JH3 24V 9238 11000RPM Large air volume servo controller inverter DC Computer fan
Manufacturer
Manufacturer Product Number
3214JH3
Description
3214JH3 Fan Tubeaxial 24VDC Square - 92mm L x 92mm H Ball 139.5 CFM (3.91m³/min) 2 Wire Leads
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
|
Type |
Description |
|---|---|
|
PART# |
3214JH3 |
|
Category |
Fans, Blowers, Thermal Management Fans DC Brushless Fans (BLDC) |
|
Mfr |
/ |
|
Series |
3200J |
|
Packaging |
Bulk |
|
Part Status |
Active |
|
Voltage - Rated |
24VDC |
|
Size / Dimension |
Square - 92mm L x 92mm H |
|
Width |
38.00mm |
|
Air Flow |
139.5 CFM (3.91m³/min) |
|
Static Pressure |
- |
|
Bearing Type |
Ball |
|
Fan Type |
Tubeaxial |
|
Features |
- |
|
Noise |
69.0dB(A) |
|
Power (Watts) |
30 W |
|
RPM |
11000 RPM |
|
Termination |
2 Wire Leads |
|
Ingress Protection |
- |
|
Operating Temperature |
-4 ~ 158°F (-20 ~ 70°C) |
|
Approval Agency |
CSA, UL, VDE |
|
Weight |
0.617 lb (279.87 g) |
|
Current Rating (Amps) |
- |
|
Voltage Range |
12 ~ 27.6VDC |
|
Material - Frame |
Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
|
Material - Blade |
Polyamide (PA), Nylon, Fiberglass Reinforced |
|
Lifetime @ Temp. |
65000 Hrs @ 40°C |
|
Base Product Number |
3214J |

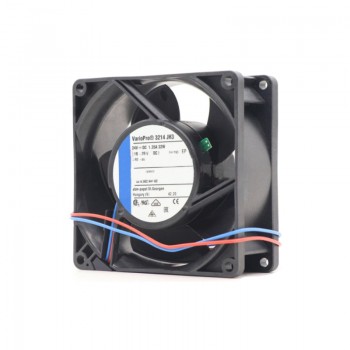

Actual image of the product
Other Products In The same category:
3214JH3 Fan Tubeaxial 24VDC Square - 92mm L x 92mm H Ball 139.5 CFM (3.91m³/min) 2 Wire Leads
100In stock:
Can ship immediately
