Original Axial fan 4414FNN 24V 12025 345mA 8.3W 4850RPM Medical equipment power supply chassis frequency converter Computer fan
Manufacturer
Manufacturer Product Number
4414FNN
Description
4414FNN FAN AXIAL 119X25.4MM 24VDC WIRE
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
|
Type |
Description |
|---|---|
|
PART# |
4414FNN |
|
Category |
Fans, Blowers, Thermal Management Fans DC Brushless Fans (BLDC) |
|
Mfr |
/ |
|
Series |
4400FN |
|
Packaging |
Box |
|
Part Status |
Active |
|
Voltage - Rated |
24VDC |
|
Size / Dimension |
Square - 119mm L x 119mm H |
|
Width |
25.40mm |
|
Air Flow |
117.7 CFM (3.30m³/min) |
|
Static Pressure |
- |
|
Bearing Type |
Ball |
|
Fan Type |
Tubeaxial |
|
Features |
- |
|
Noise |
52.0dB(A) |
|
Power (Watts) |
8.5 W |
|
RPM |
4850 RPM |
|
Termination |
2 Wire Leads |
|
Ingress Protection |
- |
|
Operating Temperature |
-4 ~ 158°F (-20 ~ 70°C) |
|
Approval Agency |
- |
|
Weight |
0.529 lb (239.95 g) |
|
Current Rating (Amps) |
- |
|
Voltage Range |
14 ~ 28VDC |
|
Material - Frame |
Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
|
Material - Blade |
Polyamide (PA), Nylon, Fiberglass Reinforced |
|
Lifetime @ Temp. |
60000 Hrs @ 40°C |
|
Base Product Number |
4414 |

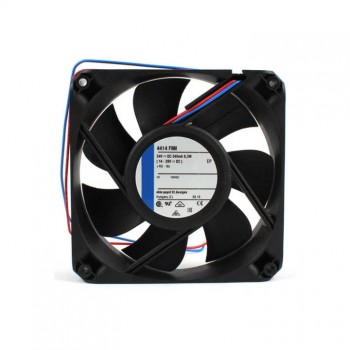

Actual image of the product
