Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Original BFB1624H-F00 BFB1624H 159x165x40mm 17.2W 2200 RPM 24v dc brushless blower fan
Manufacturer
Manufacturer Product Number
BFB1624H-F00
Description
BFB1624H-F00 FAN BLOWER 159X40MM 24VDC WIRE
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
|
Type |
Description |
|---|---|
|
PART# |
BFB1624H-F00 |
|
Category |
Fans, Blowers, Thermal Management Fans DC Brushless Fans (BLDC) |
|
Mfr |
/ |
|
Series |
BFB |
|
Packaging |
Bulk |
|
Part Status |
Active |
|
Voltage - Rated |
24VDC |
|
Size / Dimension |
Rectangular/Rounded - 159mm L x 165mm H |
|
Width |
40.00mm |
|
Air Flow |
61.8 CFM (1.73m³/min) |
|
Static Pressure |
1.387 in H2O (345.5 Pa) |
|
Bearing Type |
Ball |
|
Fan Type |
Blower |
|
Features |
Locked Rotor Protection, Speed Sensor (Tach) |
|
Noise |
56.5dB(A) |
|
Power (Watts) |
17.16 W |
|
RPM |
2200 RPM |
|
Termination |
3 Wire Leads |
|
Ingress Protection |
- |
|
Operating Temperature |
14 ~ 140°F (-10 ~ 60°C) |
|
Approval Agency |
CE, CSA, UL, VDE |
|
Weight |
1.3 lbs (589.7 g) |
|
Current Rating (Amps) |
0.740A |
|
Voltage Range |
14 ~ 26.4VDC |
|
Material - Frame |
Plastic |
|
Material - Blade |
Plastic |
|
Lifetime @ Temp. |
50000 Hrs @ 40°C |
|
Base Product Number |
BFB1624 |

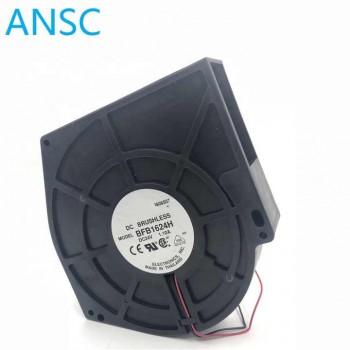

Actual image of the product
Other Products In The same category:
BFB1624H-F00 FAN BLOWER 159X40MM 24VDC WIRE
100In stock:
Can ship immediately
