You can contact me for the best price Original TTP223-BA6 Diodes Transient Suppressors SOT23-6 Hot sale Original

Product Description

The TonTouch TTP223-BA6/TTP223N-BA6 touch pad detector IC has 1 touch key. With a variety of pad sizes, the touching detection IC is intended to replace conventional direct button keys. For DC or AC applications, low power consumption and a wide working voltage are essential qualities of the contact.

Product Features

Provides Low Power mode

Operating voltage 2.0V~5.5V

Operating current @VDD=3V, no load

At low power mode typical 1.5uA, maximum 3.0uA

Sensitivity can adjust by the capacitance(0~50pF) outside

The response time max 220mS at low power mode @VDD=3V

Stable touching detection of human body for replacing

traditional direct switch key

Product Applications

Button key replacement

Wide consumer products

Product Description

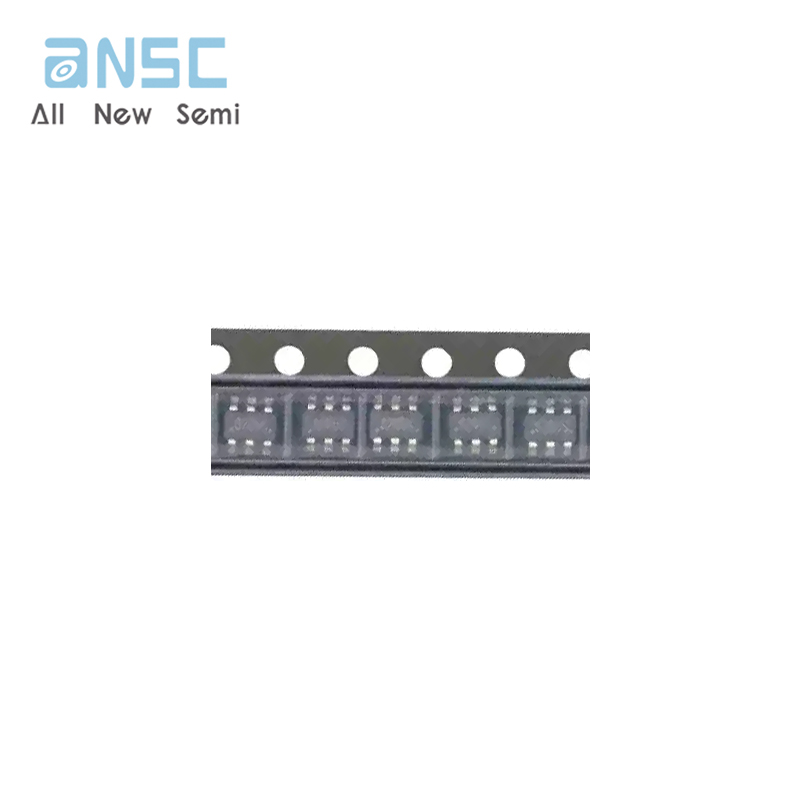

Actual image of the product

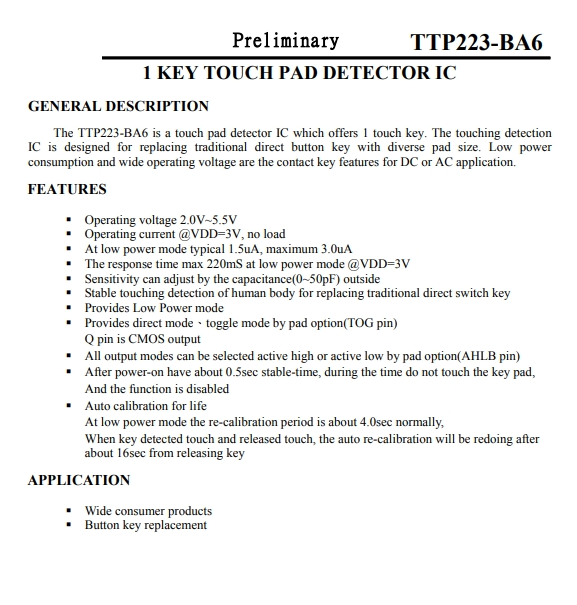

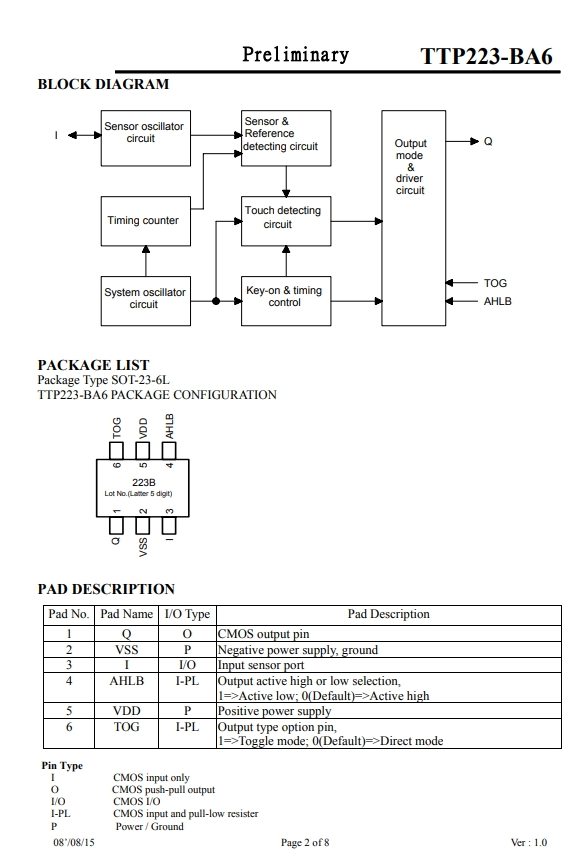

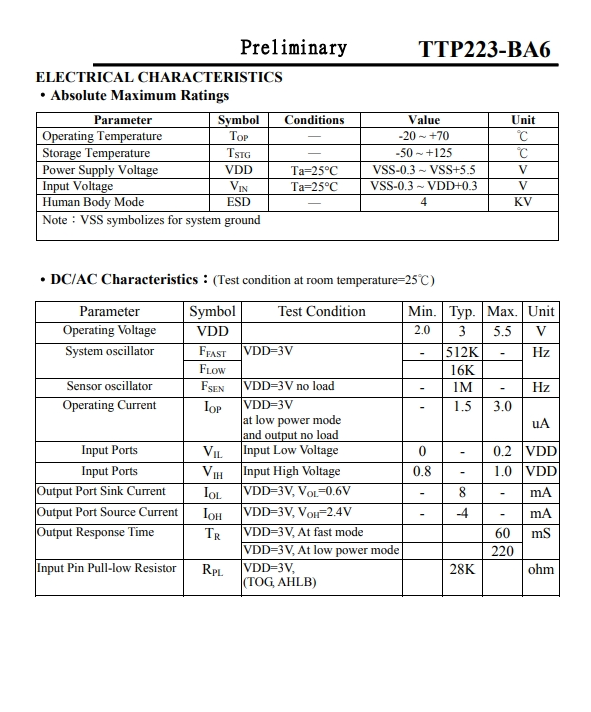

Product datasheet

For more information, please download
