Hot sale Original US1J-E3/5AT DIODE GEN PURP 600V 1A Rectifiers Single Diodes Standard Surface Mount DO-214AC (SMA)
Manufacturer
Manufacturer Product Number
US1J-E3/5AT
Description
Original US1J-E3/5AT DIODE GEN PURP 600V 1A Rectifiers Single Diodes Standard Surface Mount DO-214AC (SMA)
Package Condition
Tape & Reel (TR) Cut Tape (CT)
Product Overview
Phase diode rectifier is reasonable to reverse the voltage to 600V.This device's average rectified current is zero volts.A forward current of 1A is allowed.Surge currents are limited to 30A.In terms of output current, the maximum value is 1A.The datasheets show a peak reverse of 10μA, as shown in the data chart.
Product Features
an average rectified current of 1A volts
1A is the maximum value
the peak reverse is 10μA
Product Applications
There are a lot of Vishay Semiconductor Diodes Division
US1J-E3/5AT applications of single-phase diode rectifier.
· DC motor control and drives
· Battery chargers
· Welders
· Power converters
· Reverse Polarity Protection
· Ultra High-Speed Switching
· Freewheeling
· Polarity Protection Diode
· Recirculating Diode
· Switching Diode
Product Description
|
Type |
Description |
|---|---|
|
ANSC PART# |
ANSC - US1J-E3/5AT |
|
Category |
Discrete Semiconductor Products Diodes Rectifiers Single Diodes |
|
Mfr |
Vishay |
|
Series |
- |
|
Packaging |
Tape & Reel (TR) Cut Tape (CT) |
|
Part Status |
Active |
|
Technology |
Standard |
|
Voltage - DC Reverse (Vr) (Max) |
600 V |
|
Current - Average Rectified (Io) |
1A |
|
Voltage - Forward (Vf) (Max) @ If |
1.7 V @ 1 A |
|
Speed |
Fast Recovery =< 500ns, > 200mA (Io) |
|
Reverse Recovery Time (trr) |
75 ns |
|
Current - Reverse Leakage @ Vr |
10 µA @ 600 V |
|
Capacitance @ Vr, F |
10pF @ 4V, 1MHz |
|
Mounting Type |
Surface Mount |
|
Package / Case |
DO-214AC, SMA |
|
Supplier Device Package |
DO-214AC (SMA) |
|
Operating Temperature - Junction |
-55°C ~ 150°C |
|
Base Product Number |
US1 |

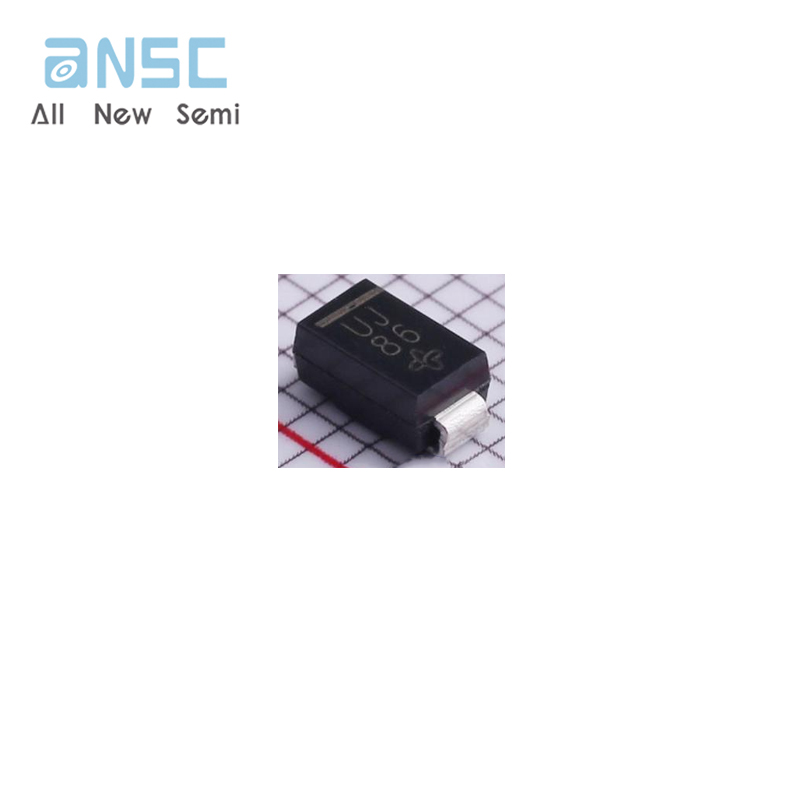

Actual image of the product

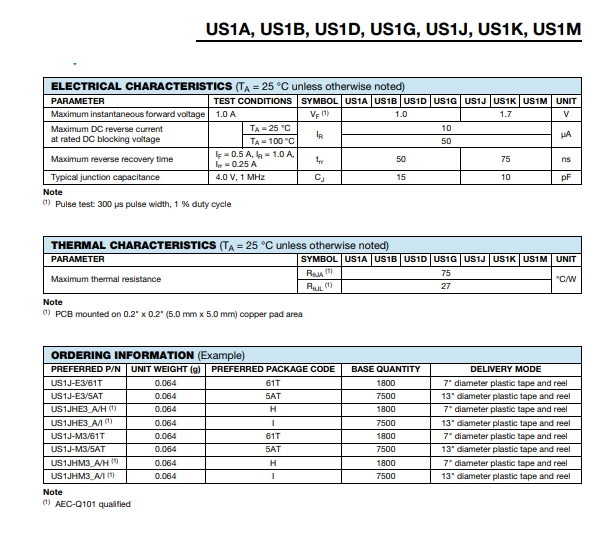

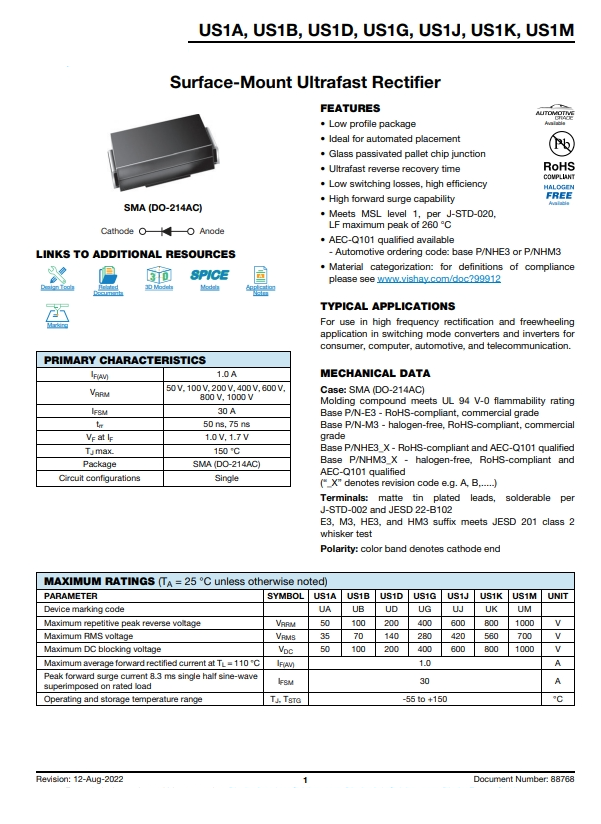

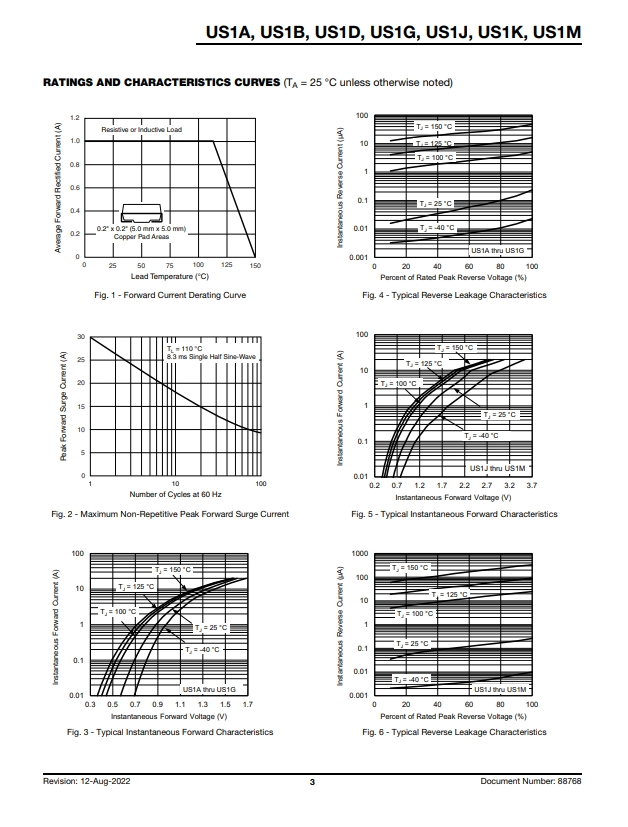

Product datasheet
For more information, please download
.png)
.png)
.png)
