Original B320CE-13 DIODE SCHOTTKY 20V 3A SMC Diode 20 V 3A Surface Mount SMC
Manufacturer Product Number
B320CE-13
Description
B320CE-13 DIODE SCHOTTKY 20V 3A SMC Diode 20 V 3A Surface Mount SMC
Package Condition
Tape & Reel (TR)
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
Brief Description: The B320CE-13 is a surface-mount Schottky rectifier diode , designed for efficiency applications. It features a fast recovery time and a maximum forward voltage drop of 500mV at 3A.
Features:
-
Schottky diode with a single element
-
Surface-mount DO-214AB (SMC) package
-
Fast recovery time (<= 500ns, > 200mA)
-
Maximum forward current: 80A (non-repetitive peak)
-
Maximum reverse voltage: 20V
-
Maximum reverse current: 100μA
-
Operating temperature range: -55°C to 150°C
-
RoHS3 compliant
-
ECCN Code: EAR99
-
HTS Code: 8541.10.00.80
-
JESD-30 Code: R-PDSO-C2
-
JESD-609 Code: e3
-
Moisture Sensitivity Level (MSL): 1 (Unlimited)
Application Grade: The B320CE-13 is designed for efficiency applications, such as power supplies, converters, and inverters.
Applications:
-
Power supplies
-
Converters
-
Inverters
-
Efficiency-critical applications requiring fast recovery times and low forward voltage drops
Note: The product is obsolete, and the manufacturer recommends alternative products for new designs.
Product Description
|
Type |
Description |
|---|---|
| PART# | B320CE-13 |
|
Category |
Discrete Semiconductor Products Diodes Rectifiers Single Diodes |
|
Mfr |
/ |
|
Series |
- |
|
Packaging |
Tape & Reel (TR) |
|
Part Status |
Obsolete |
|
Technology |
Schottky |
|
Voltage - DC Reverse (Vr) (Max) |
20 V |
|
Current - Average Rectified (Io) |
3A |
|
Voltage - Forward (Vf) (Max) @ If |
500 mV @ 3 A |
|
Speed |
Fast Recovery =< 500ns, > 200mA (Io) |
|
Current - Reverse Leakage @ Vr |
100 µA @ 20 V |
|
Capacitance @ Vr, F |
140pF @ 4V, 1MHz |
|
Mounting Type |
Surface Mount |
|
Package / Case |
DO-214AB, SMC |
|
Supplier Device Package |
SMC |
|
Operating Temperature - Junction |
-55°C ~ 150°C |
|
Base Product Number |
B320 |

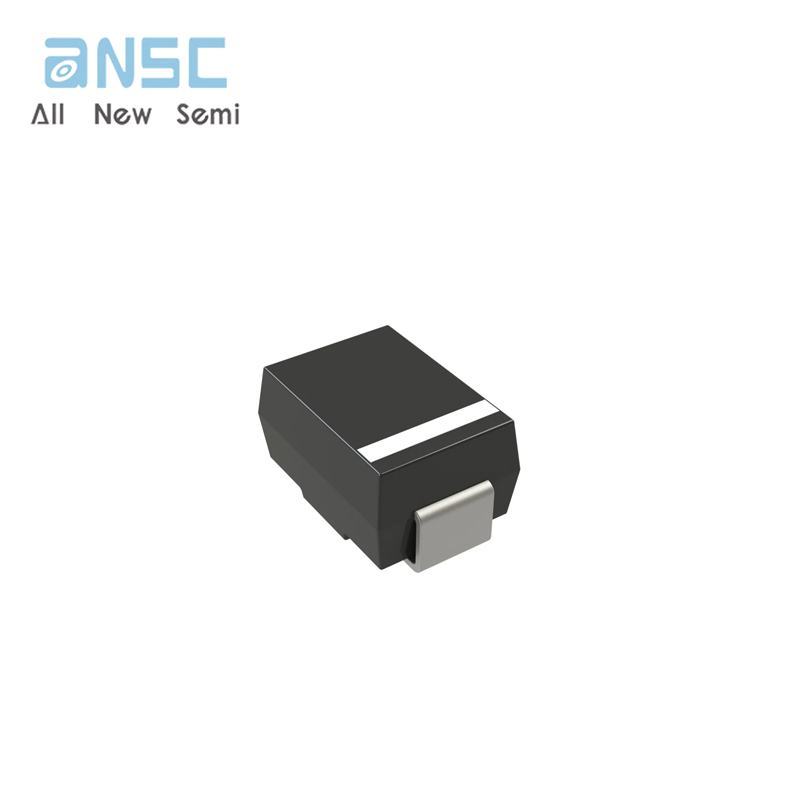

Actual image of the product
