Hot sale original AT070TN92 WLED Backlight U/D,L/R Reverse 6/8 bit Matte 80.15mm length FPC 7" 800×480 Lcm 262K/16.7M Wled

Product Details

AT070TN92 is a 7-inch LCD module product using a-Si TFT-LCD technology. It is equipped with WLED backlight, no backlight driver, and no touch.

According to the specification, its features are summarized as follows: AT070TN92 has a display resolution of 800*480, an aspect ratio of 15:9, and pixels are arranged in RGB vertical strips. Its display area size is 154.08*85.92mm, the outer dimensions are 164.9*100*5.7mm, the surface treatment is matte, its display brightness is 250cd/m², the contrast ratio is 500:1, and the net weight of the product is 150g. In terms of backlight, this product uses a WLED side-entry light source, and the service life of the light source is 20,000 hours, excluding the backlight driver.

AT070TN92 uses Parallel RGB signal interface, a total of 50 pins, FPC connection, screen drive voltage is 3.3/10.4/16.0/-7.0V. Its operating temperature is -20~70°C, storage temperature is -30~80°C. Based on its basic features, this model is recommended for use in digital photo frames, portable DVDs, video doorbells, video phones and other products.

Product Description

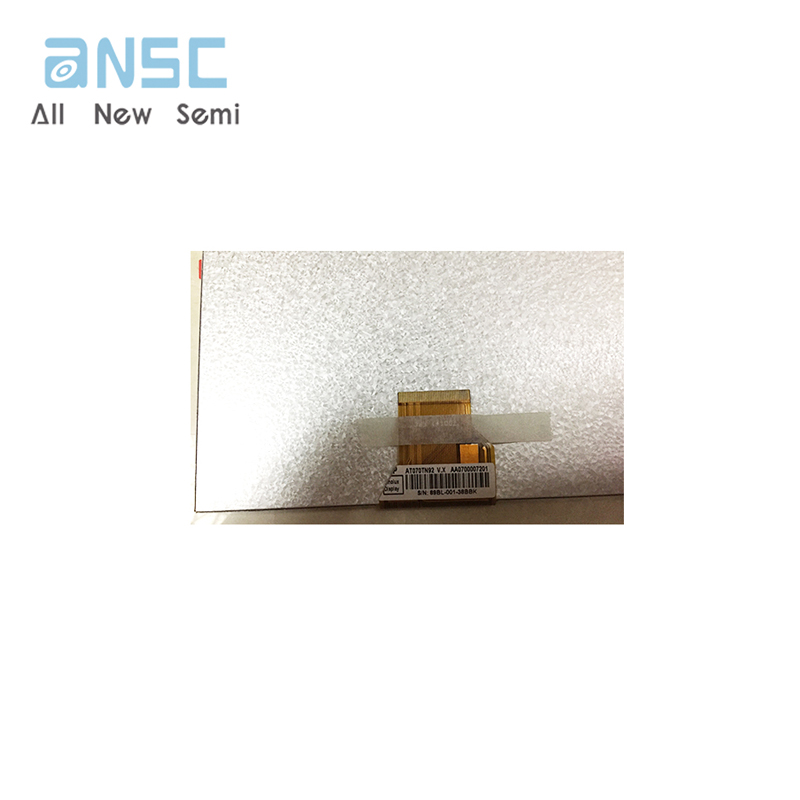

Actual image of the product

​
