Hot sale Original F74007-000 PTC Resettable Fuse, Through Hole Mount, RAL LEADED Non-linear Resistors
Manufacturer Product Number
F74007-000
Description
F74007-000 PTC Resettable Fuse, Through Hole Mount, RAL LEADED Non-linear Resistors
Package Condition
Reel
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
Description PolySwitch line-voltage-rated (LVR) devices help protect electric motors and transformers used in commercial and home appliances from damage caused by mechanical overloads, overheating, stall, lost neutral and other potentially harmful conditions. The LVR line-voltage product line of polymeric positive temperature coefficient (PPTC) devices includes components that are rated for line voltages of 120VAC, VDC and 240VAC, VDC for up to 2A of operating current at 20°C. They help protect against damage caused by both overcurrent surges and overtemperature faults. They also offer low resistance and are compatibly sized with fuse solutions. Applications • Electromagnetic loads • Game machines • Industrial controls • Lighting ballasts • Loudspeakers • Medical equipment • Motors, fans and blowers • POS equipment • Satellite video receivers • Security and fire alarm systems • Test and measurement equipment • Transformers • USB hubs, ports and peripherals • Intelligent appliance • Robotic machine Features • RoHS and Halogen-free compliant • Broadest range of radial-leaded resettable devices available in the industry • Current ratings from 50mA to 2A • Line voltage rating of 120VAC, VDC and 240VAC, VDC • Fast time-to-trip • Low resistance • UL Recognized to UL 1434 • CSA Approved to CSA TIL No. CA-3A • TUV Approved to EN 60730-1 • CQC Approved to GB 8898, GB/T 7153, GB 14536.1 |
Product Description
| Type# | Description |
| ANSC PART# | ANSC- F74007-000 |
| Ihs Manufacturer | Original |
| Package Description | RADIAL LEADED, ROHS COMPLIANT |
| Circuit RMS Voltage-Max | 240 V |
| Mounting Feature | THROUGH HOLE MOUNT |
| Number of Terminals | 2 |
| Operating Temperature-Max | 85 °C |
| Operating Temperature-Min | -40 °C |
| Package Height | 19 mm |
| Package Length | 11.4 mm |
| Package Shape | RECTANGULAR PACKAGE |
| Package Style | Radial |
| Package Width | 3.8 mm |
| Packing Method | BULK |
| Reference Standard | CSA; TUV; UL |
| Resistance | 0.77 Ω |
| Resistor Type | PTC RESETTABLE FUSE |
| Surface Mount | NO |
| Terminal Placement | RADIAL |
| Terminal Shape | WIRE |
| Thermistor Application | TEMPERATURE SENSING |
| Working Voltage | 240 V |
Product Photos

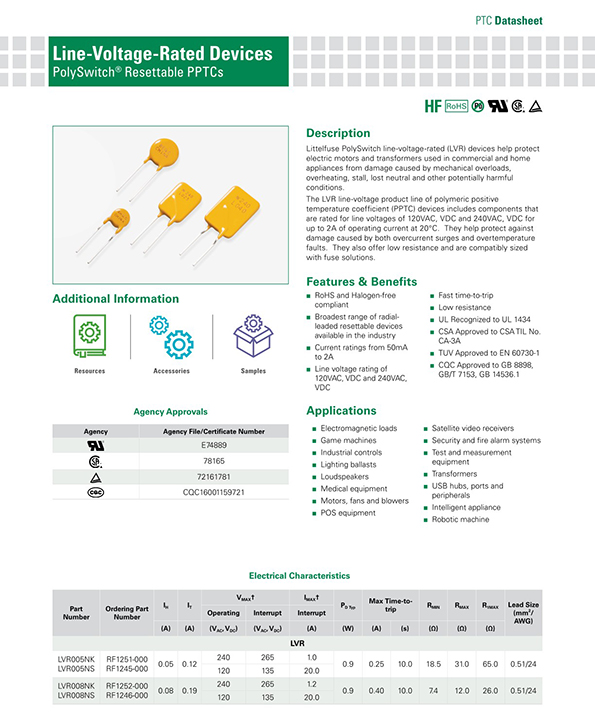

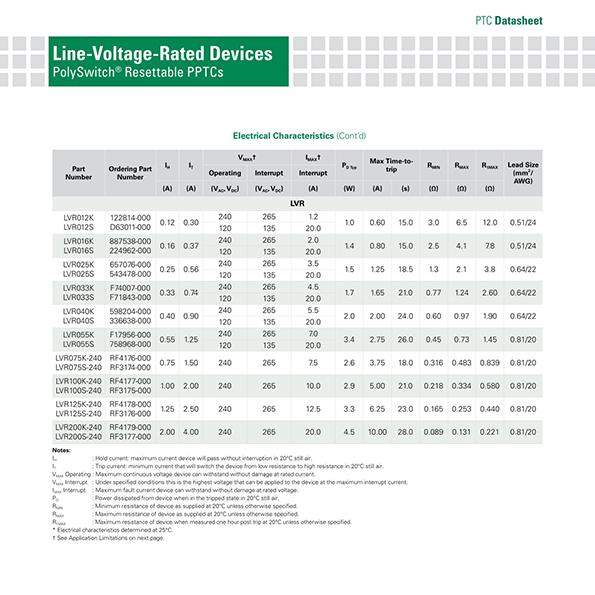

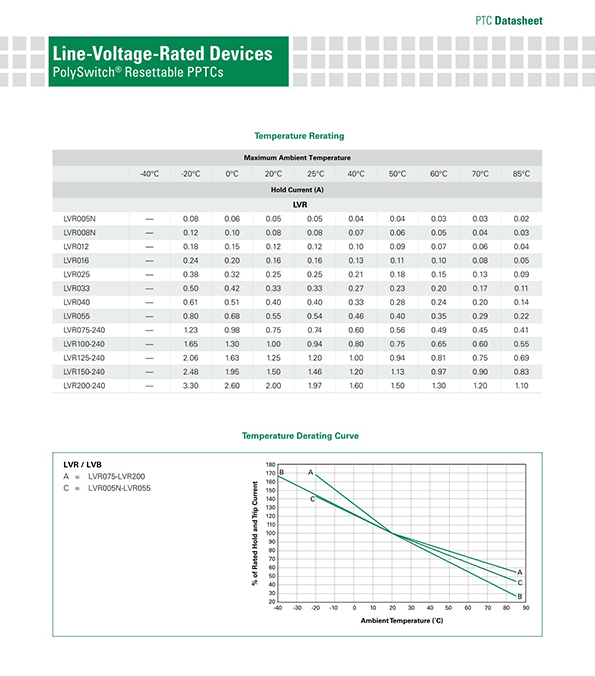

Product datasheet
For more information, please download
