Hot offer BOM distribution service electronic components L7180 Professional supply Original
Manufacturer Product Number
L7180
Description
L7180 1.75A BUF OR INV BASED PRPHL DRVR, PSFM15
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| Device Highlights Flexible Programmable Logic • 0.25 µm five layer metal CMOS process • 2.5 V VCC, 2.5/3.3 V drive capable I/O • Up to 4,032 logic cells • Up to 583,008 system gates • Up to 347 I/O pins Embedded Dual-Port SRAM • Up to thirty-six 2,304-bit dual-port high performance SRAM blocks • Up to 82,900 RAM bits • RAM/ROM/FIFO wizard for automatic configuration • Configurable and cascadable Programmable I/O • High performance enhanced I/O (EIO)— less than 3 ns Tco • Programmable slew rate control • Programmable I/O standards: ♦ LVTTL, LVCMOS, PCI, GTL+, SSTL2, and SSTL3 ♦ Eight independent I/O banks ♦ Three register configurations: input, output, and output enable Advanced Clock Network • Nine global clock networks: ♦ One dedicated ♦ Eight programmable • 20 quad-net networks—five per quadrant • 16 I/O controls—two per I/O bank • Four phase locked loops Embedded Computational Units ECUs provide integrated multiply, add, and accumulate functions. |
Product Description
| Type# | Description |
| ANSC PART# | ANSC-L7180 |
| Ihs Manufacturer | / |
| Built-in Protections | TRANSIENT |
| Driver Number of Bits | 4 |
| Interface IC Type | BUFFER OR INVERTER BASED PERIPHERAL DRIVER |
| Number of Functions | 1 |
| Number of Terminals | 15 |
| Operating Temperature-Max | 70 °C |
| Operating Temperature-Min | |
| Output Current Flow Direction | SINK |
| Output Current-Max | 1.5 A |
| Output Peak Current Limit-Nom | 1.75 A |
| Package Body Material | PLASTIC/EPOXY |
| Package | ZIP |
| Package Equivalence Code | ZIP15,.2,.17TB |
| Package Shape | RECTANGULAR |
| Package Style | FLANGE MOUNT |
| Qualification Status | Not Qualified |
| Surface Mount | NO |
| Technology | BIPOLAR |
| Temperature Grade | COMMERCIAL |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 1.27 mm |
| Terminal Position | SINGLE |
| Turn-off Time | 1.5 µs |
| Turn-on Time | 1 µs |

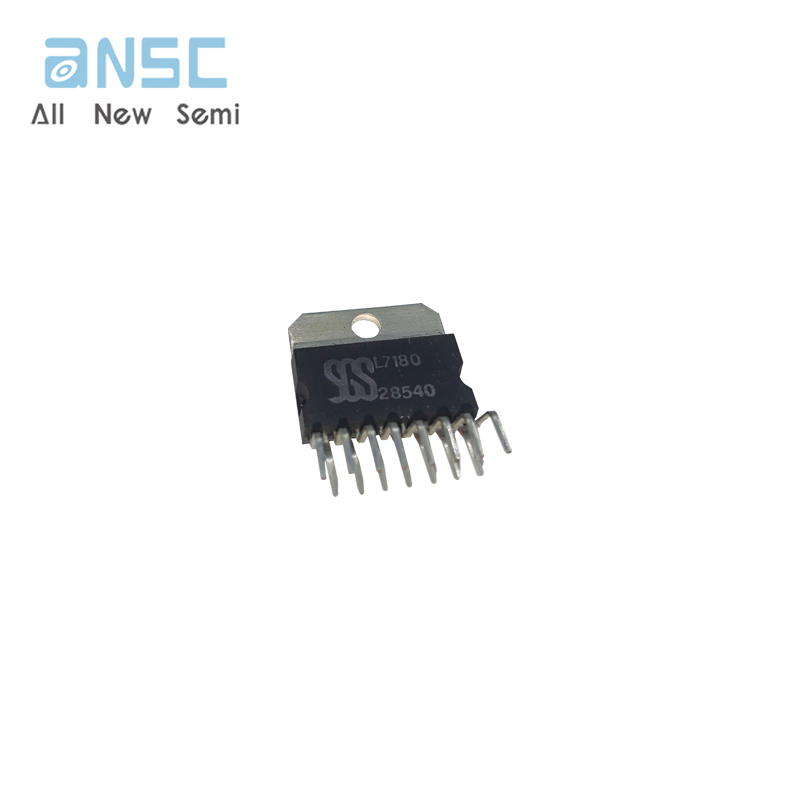

Product Photos

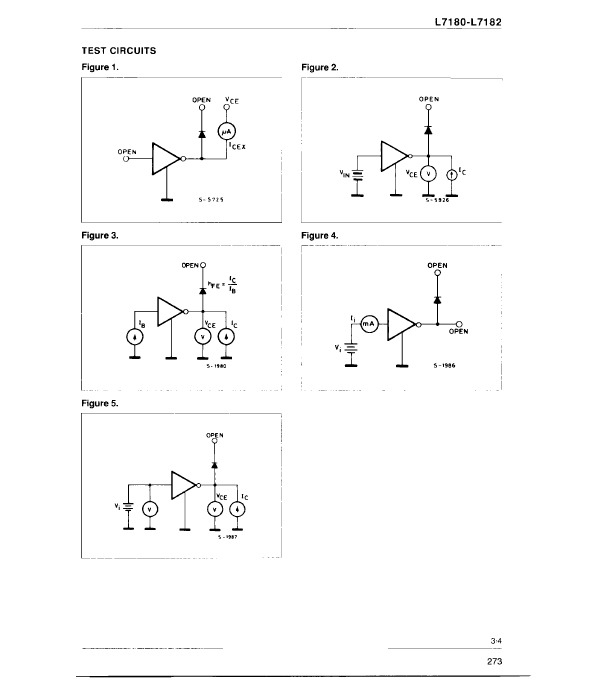

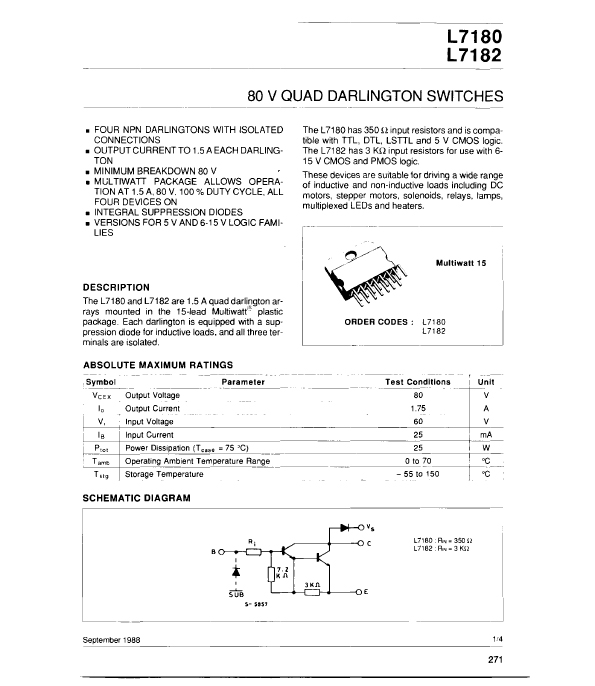

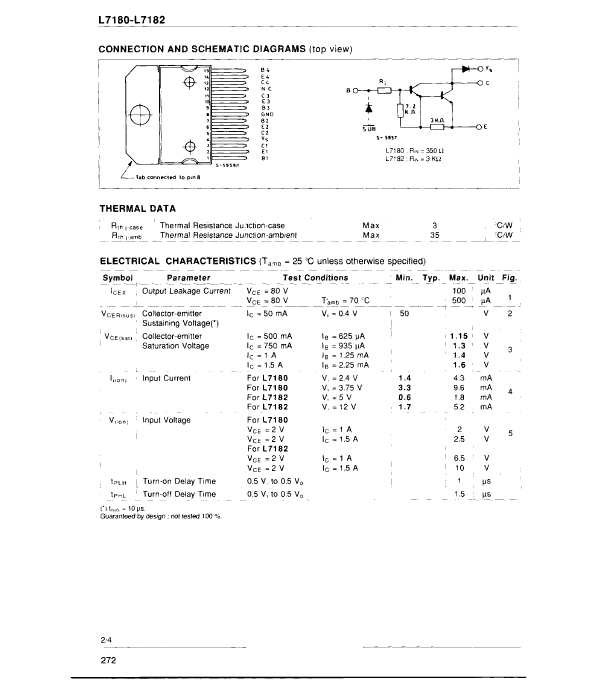

Product datasheet
