You can contact me for the best price Original TLP385 Optocoupler Transistor Optocoupler, 4-Pin SO6L Hot sale Original

Manufacturer Product Number

TLP385

Description

Original TLP385 Optocoupler Transistor Optocoupler, 4-Pin SO6L

Package Condition

Original

Datasheet

TLP385

Product Details
Reviews

We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Details

Controllers

DC−Output Module
Telecommunication

transistor optically coupled to a gallium arsenide infrared emitting diode. The TLP321−2 offers two isolated channels in an eight lead plastic DIP package, while the TLP321−4 provides four isolated channels in a sixteen plastic DIP package.

TLP321 / −2 / −4 have high VCEO voltage (VCEO = 80V).

Collector−emitter voltage: 80V (min.)

Current transfer ratio: 50% (min.) Rank GB: 100% (min.)
Isolation voltage: 5000Vrms (min.)
UL recognized: UL1577, file no. E67349

Product Description

Type#	Description
Part#	TLP385
Manufacturer	/
Package Description	SO-6L, 4 PIN
Additional Feature	UL RECOGNIZED
Coll-Emtr Bkdn Voltage-Min	80 V
Configuration	SINGLE
Current Transfer Ratio-Min	50%
Dark Current-Max	80 nA
Forward Current-Max	0.05 A
Forward Voltage-Max	1.4 V
Isolation Voltage-Max	5000 V
Mounting Feature	SURFACE MOUNT
Number of Elements	1
On-State Current-Max	0.05 A
Operating Temperature-Max	110 °C
Operating Temperature-Min	-55 °C
Optoelectronic Device Type	TRANSISTOR OUTPUT OPTOCOUPLER
Power Dissipation-Max	0.15 W
Surface Mount	YES

Actual image of the product

TLP385

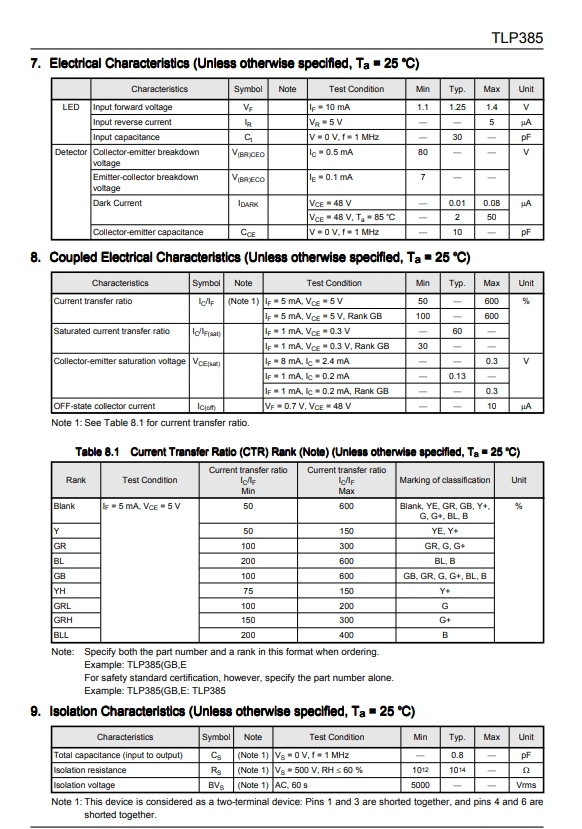

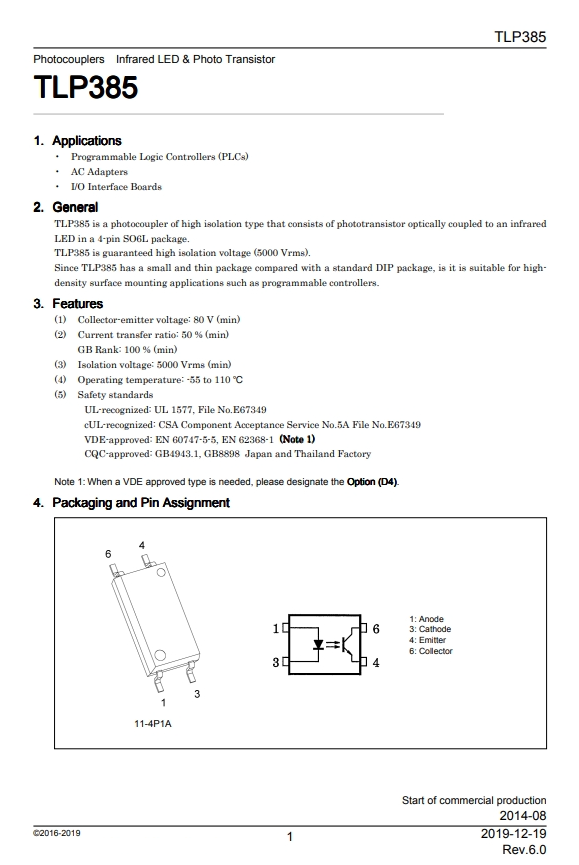

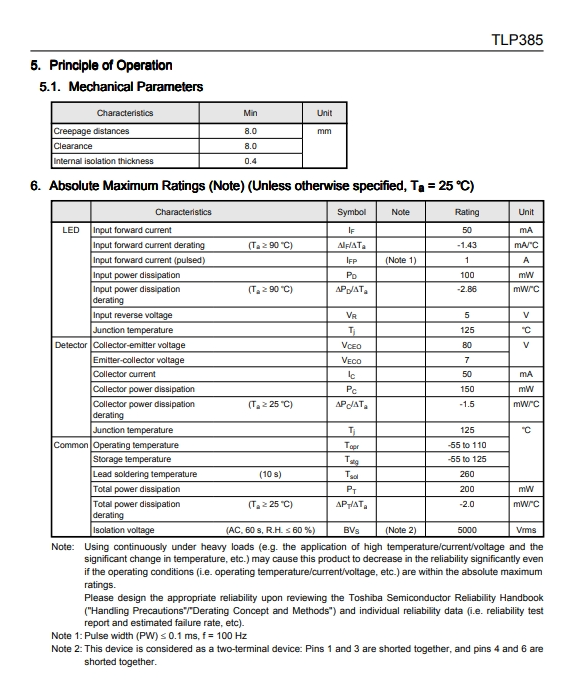

Product datasheet

For more information, please download
