Cubieboard3 development board cubietruck dual core A20 development board surpasses raspberry pie and pcduino
Manufacturer
Manufacturer Product Number
Cubieboard3 development board
Description
Cubieboard3 development board cubietruck dual core A20 development board surpasses raspberry pie and pcduino
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
| 1, | AllWinnerTech SOC A20,ARM® Cortex™-A7 Dual-Core,ARM® Mali400 MP2 Complies with OpenGL ES 2.0/1.1 |
| 2, | 2GB DDR3@480MHz |
| 3, | HDMI&VGA 1080P display output on-board |
| 4, | 10M/100M/1G Ethernet |
| 5, | Wifi+BT wireless connection with antenna on-board |
| 6, | SATA 2.0 interface support 2.5’ HDD,(for 3.5’ HDD, only need another 12V power input) |
| 7, | Storage solution:NAND+MicroSD or TSD+ MicroSD or 2*MicroSD |
| 8, | 2 x USB HOST,1 x OTG,1 x SPDIF,1 x IR,4 x LEDs,1 Headphone,3 x Keys |
| 9, | Power:DC5V @ 2.5A with HDD,support Li-battery & RTC |
| 10, | 54 extended pins including I2S, I2C, SPI, CVBS, LRADC x2,UART, PS2, PWMx2, TS/CSI, IRDA, LINEIN&FMIN&MICIN, TVINx4 with 2.0 pitch connectors |
| 11, | PCB size:11cm *8cm*1.4mm,very suite for installing a 2.5’ HDD |

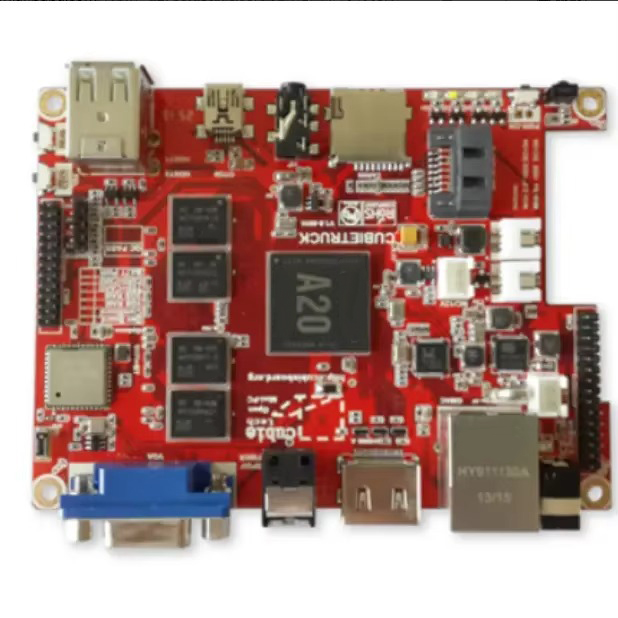

Actual image of the product
