Spot sales of 78L09 Positve-Voltage Regulators TO92

Product Descriptions

This series of fixed-voltage integrated-circuit voltage regulators is designed for a wide range of applications. These applications include on-card regulation for elimination of noise and distribution problems associated with single-point regulation. In addition, they can be used with power-pass elements to make high-current voltage regulators. One of these regulators can deliver up to 100 mA of output current. The internal limiting and thermal-shutdown features of these regulators make them essentially immune to overload. When used as a replacement for a zener diode-resistor combination, an effective improvement in output impedance can be obtained, together with lower bias current.

Product Features

3-Terminal Regulators

Output Current up to 100 mA

No External Components

Internal Thermal-Overload Protection

Internal Short-Circuit Current Limiting

Provided Pb-Free packages from the end of 2004

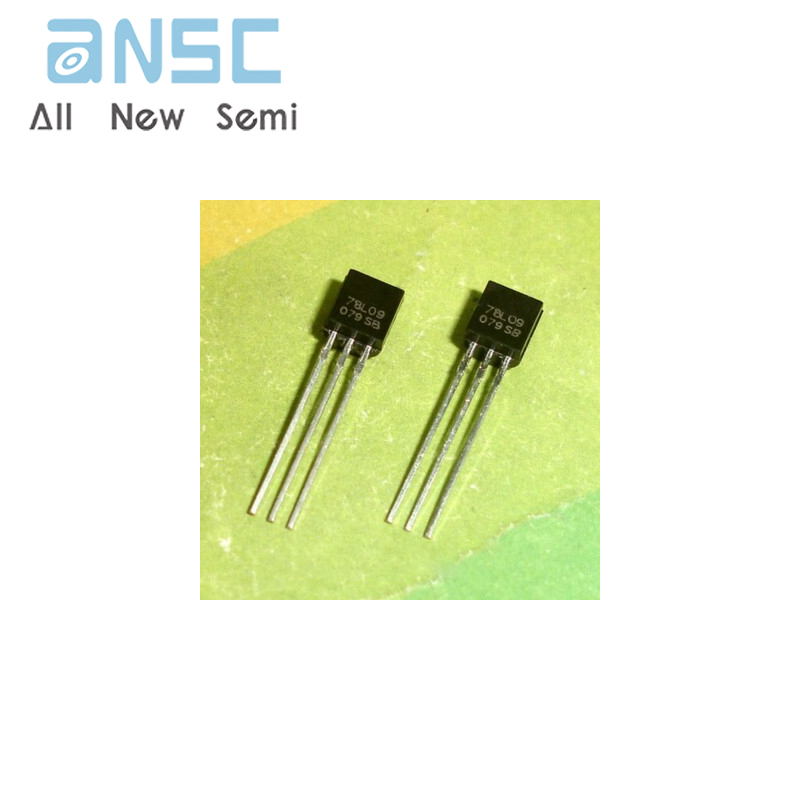

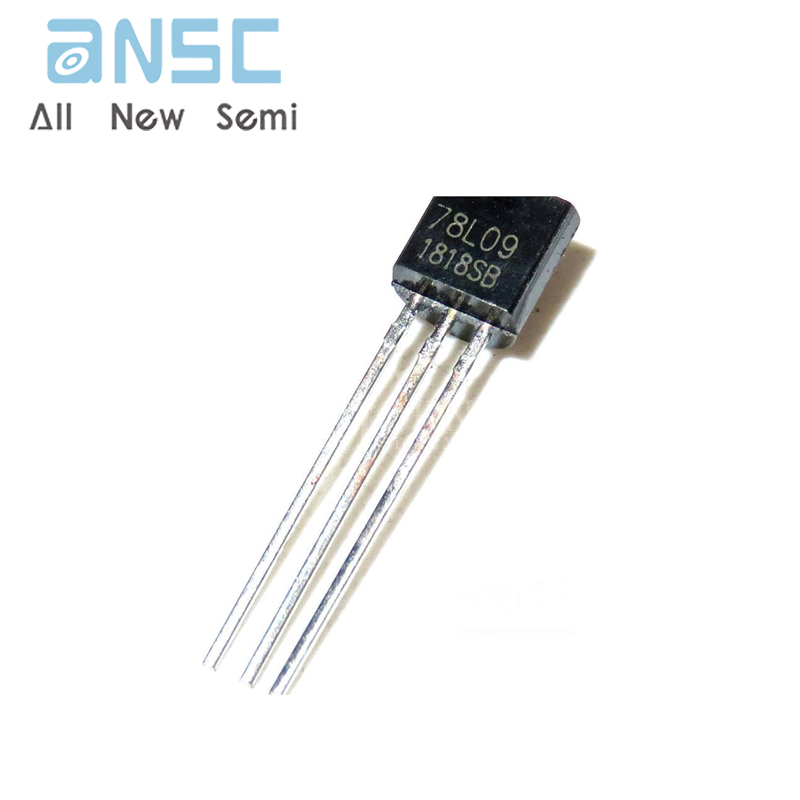

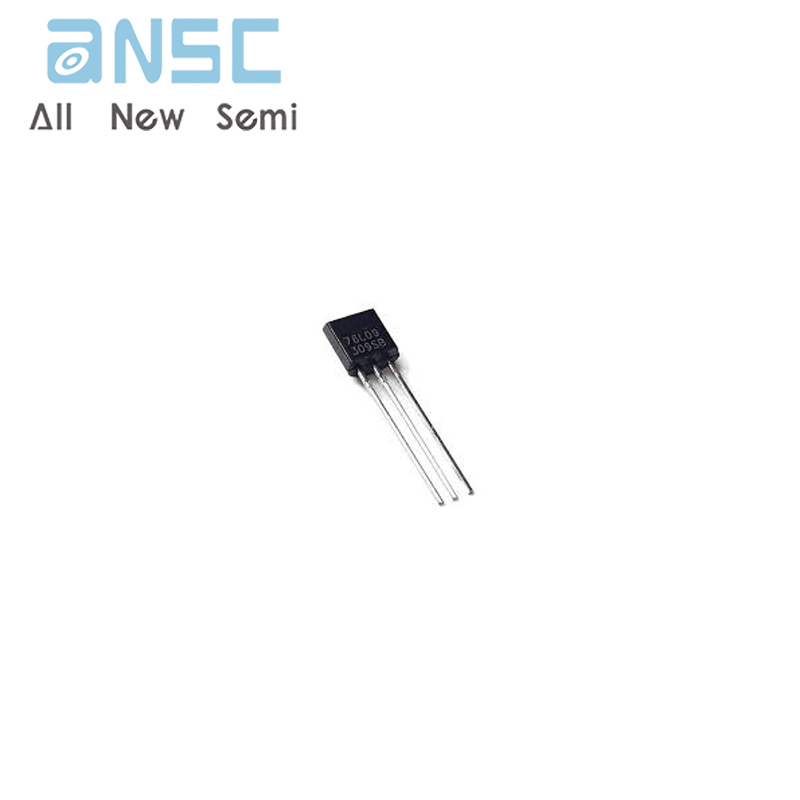

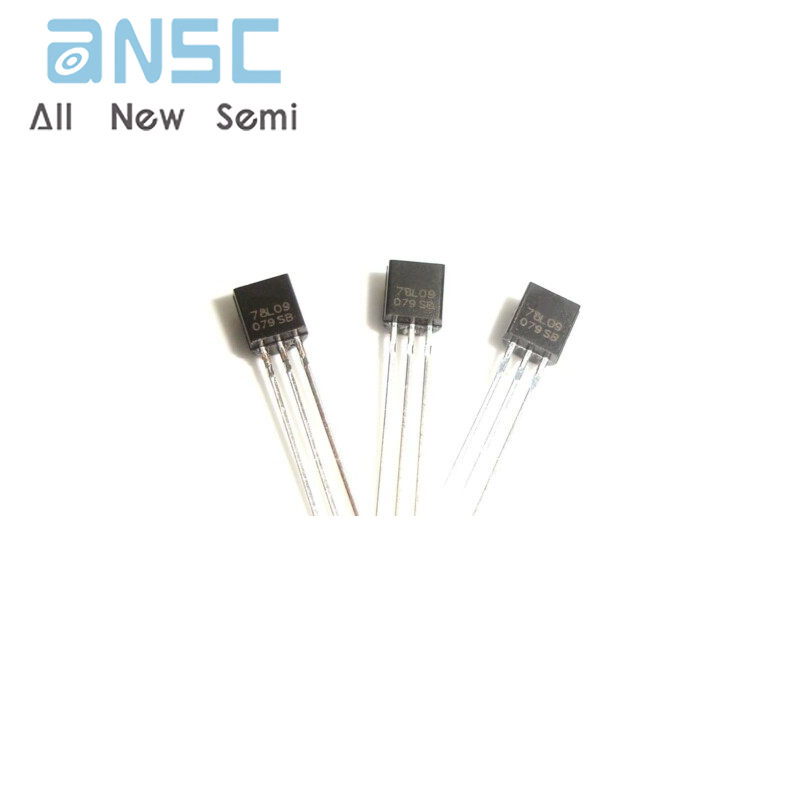

Product Photos

For more product information, please download the PDF
