Spot sales of 2920L150DR Polymeric PTC Resettable Fuse 33V 1.5 A SMD
Manufacturer Product Number
2920L150DR
Description
2920L150DR Polymeric PTC Resettable Fuse 33V 1.5 A SMD
Package Condition
Tape & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The 2920L Series PTC provides surface mount overcurrent protection for medium voltage (≤60V) applications where resettable protection is desired.
Product Features
• RoHS compliant, lead-free and halogen-free
• Fast response to fault currents
• High voltage
• Low-profile
Product Applications
• IEE1394 port protection
• Powered ethernet port protection (IEEE 802.3 af)
• Automotive electronic control module protection
• Low voltage telecom equipment protection
Product Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-2920L150DR |
| Category | Circuit Protection |
| PTC Resettable Fuses | |
| Manufacturer | - |
| Series | POLY-FUSE®, 2920L |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Type | Polymeric |
| Voltage - Max | 33V |
| Current - Hold (Ih) (Max) | 1.5 A |
| Current - Trip (It) | 3 A |
| Current - Max | 40 A |
| Time to Trip | 2 s |
| Resistance - Initial (Ri) (Min) | 80 mOhms |
| Resistance - Post Trip (R1) (Max) | 230 mOhms |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 2920 (7351 Metric), Concave |
| Size / Dimension | 0.289" L x 0.202" W (7.35mm x 5.12mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.049" (1.25mm) |
| Lead Spacing | - |
| Approval Agency | cURus, TUV |

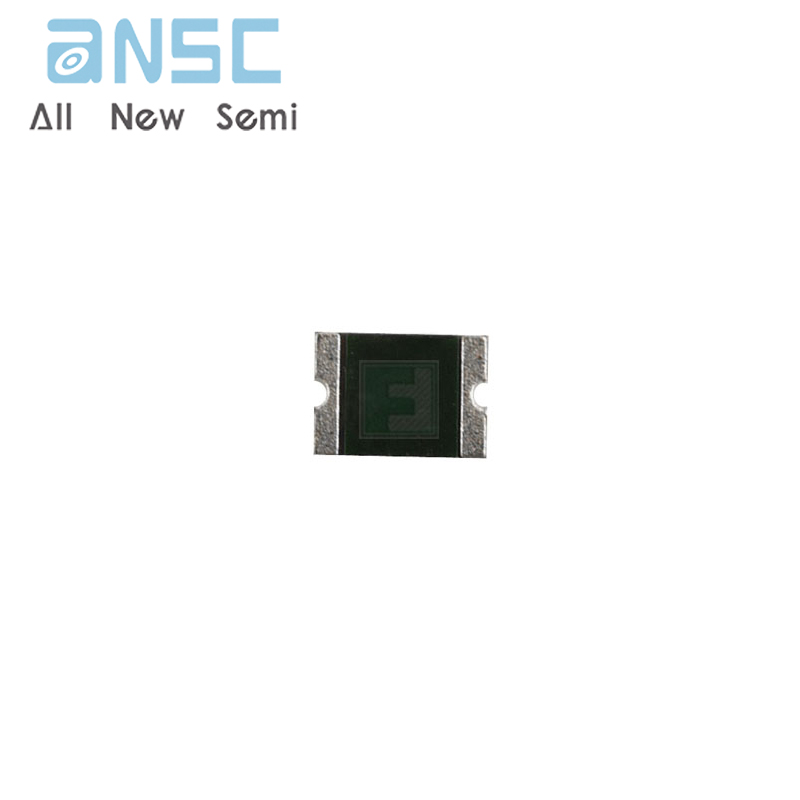

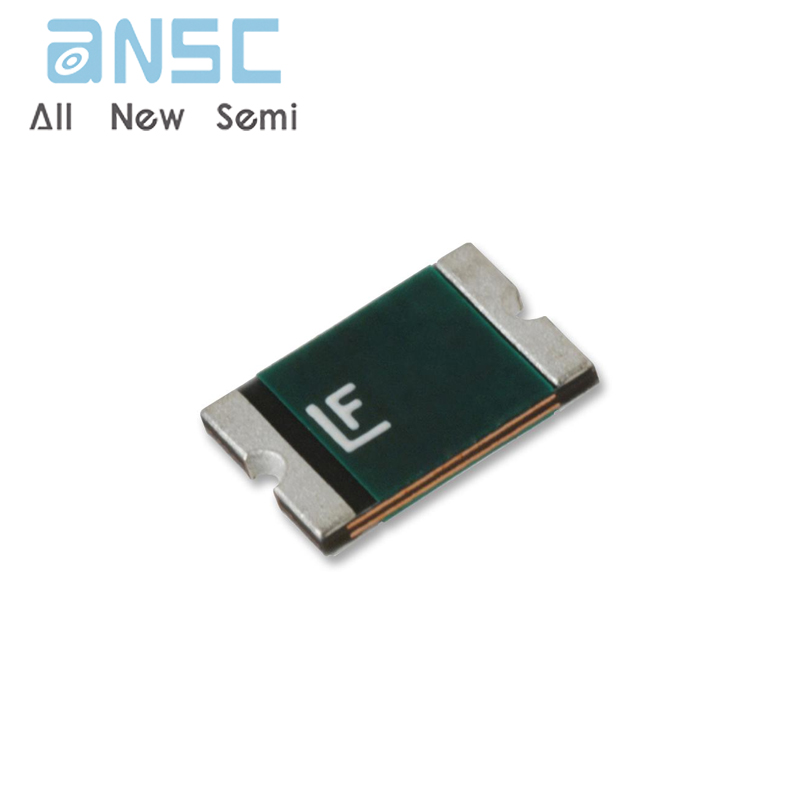

Product Photos


For more product information, please download the PDF
