Hot sale original MOCD217R2M OPTOISO 2.5KV 2CH TRANS 8-SOIC Optoisolator Transistor Output 2500Vrms 2 Channel
Manufacturer Product Number
MOCD217R2M
Description
MOCD217R2M Optoisolator Transistor Output 2500Vrms 2 Channel 8-SOIC
Package Condition
Tape & Reel (TR) Cut Tape (CT)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| Description The MOCD217M device consists of two gallium arsenide infrared emitting diodes optically coupled to two monolithic silicon phototransistor detectors, in a surface mountable, small outline plastic package. It is ideally suited for high density applications and eliminates the need for through-the-board mounting. Features■ UL Recognized (File #E90700, Volume 2) ■ VDE Recognized (File #136616) (add option “V” for VDE approval, i.e, MOCD217VM) ■ Low Input Current (specified @ 1mA) ■ Minimum BVCEO of 30 Volts Guaranteed ■ Convenient Plastic SOIC-8 Surface Mountable Package Style ■ Standard SOIC-8 Footprint, with 0.050" Lead Spacing ■ High Input-Output Isolation of 2500 VAC(rms) Guaranteed Applications■ Interfacing and Coupling Systems of Different Potentials and Impedances ■ General Purpose Switching Circuits ■ Monitor and Detection Circuits |
Product Description
| Type# | Description |
| ANSC PART# | ANSC - MOCD217R2M |
| Category | Isolators |
| Optocouplers, Optoisolators | |
| Transistor, Photovoltaic Output Optoisolators | |
| Manufacturer | / |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Part Status | Active |
| Number of Channels | 2 |
| Voltage - Isolation | 2500Vrms |
| Current Transfer Ratio (Min) | 100% @ 1mA |
| Current Transfer Ratio (Max) | - |
| Turn On / Turn Off Time (Typ) | 7.5µs, 5.7µs |
| Rise / Fall Time (Typ) | 3.2µs, 4.7µs |
| Input Type | DC |
| Output Type | Transistor |
| Voltage - Output (Max) | 30V |
| Current - Output / Channel | 150mA |
| Voltage - Forward (Vf) (Typ) | 1.05V |
| Current - DC Forward (If) (Max) | 60 mA |
| Vce Saturation (Max) | 400mV |
| Operating Temperature | -40°C ~ 100°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | MOCD217 |

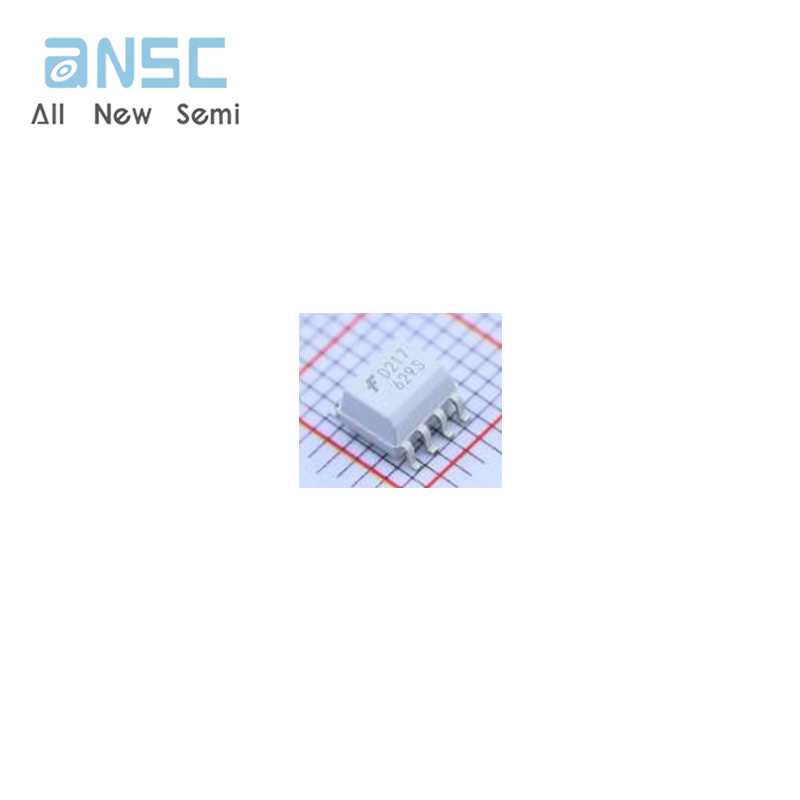

Actual image of the product

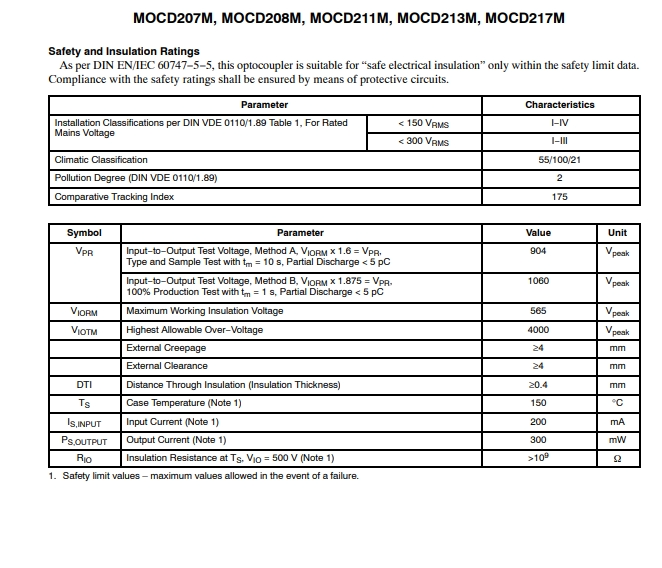

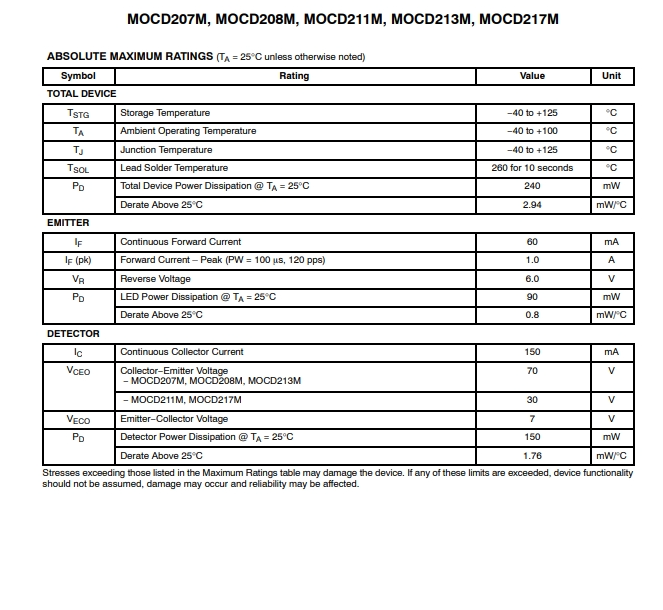

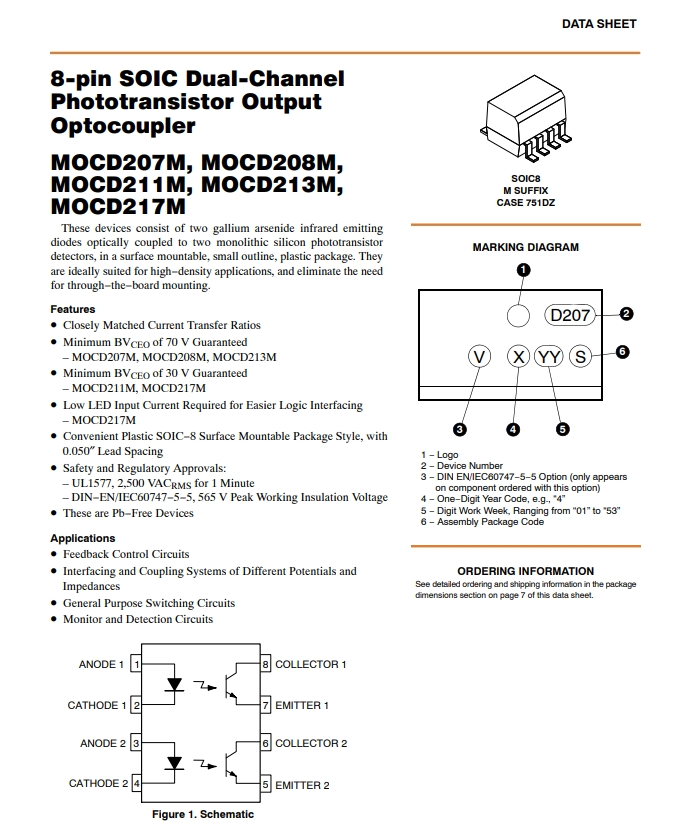

Product datasheet
For more information, please download
