MLA Varistor Series BOM distribution service electronic components V33MLA1206H
Manufacturer Product Number
V33MLA1206H
Description
V33MLA1206H 43.5 V 180 A Varistor 1 Circuit Surface Mount
Package Condition
Tape and Reel (TR)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| Description The MLA Series (also known as "ML" series) family of transient voltage surge suppression devices is based on the Littelfuse Multilayer fabrication technology. These components are designed to suppress a variety of transient events, including those specified in IEC 61000-4-2 or other standards used for Electromagnetic Compliance (EMC). The MLA Series is typically applied to protect integrated circuits and other components at the circuit board level. • RoHS compliant • Leadless 0402, 0603, 0805, 1206 and 1210 chip sizes • Multilayer ceramic construction technology • -55°C to +125°C operating temp. range • Operating voltage range VM(DC) = 5.5V to 120V • Rated for surge current (8 x 20μs) • Rated for energy (10 x 1000μs) • Inherent bi-directional clamping • Standard low capacitance types available • Suppression of inductive switching or other transient events such as EFT and surge voltage at the circuit board level • ESD protection for IEC 61000-4-2, MIL-STD-883c method 3015.7, and other industry specifications (see also the MLE or MLN Series) • Provides on-board transient voltage protection for ICS and transistors • Used to help achieve electromagnetic compliance of end products • Replace larger surface mount TVS Zeners in many applications
|
Product Description
| Type | Description |
| PART# | V33MLA1206H |
| Category | Circuit Protection |
| Varistors, MOVs | |
| Manufacturer | / |
| Series | MLA |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| / | |
| Part Status | Obsolete |
| Maximum AC Volts | 26 V |
| Maximum DC Volts | 33 V |
| Varistor Voltage (Min) | 38 V |
| Varistor Voltage (Typ) | 43.5 V |
| Varistor Voltage (Max) | 49 V |
| Current - Surge | 180 A |
| Energy | 0.8J |
| Number of Circuits | 1 |
| Capacitance @ Frequency | 500 pF @ 1 MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount, MLCV |
| Package / Case | 1206 (3216 Metric) |

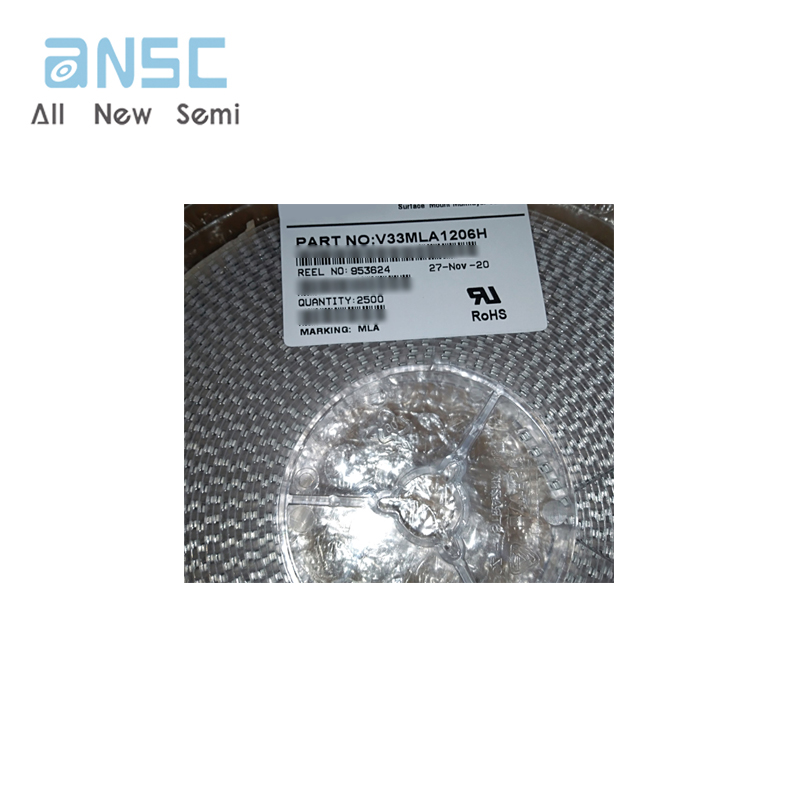

Actual image of the product
