20pcs/lot SCHOTTKY DIODE SR5100 5A 100V DO-27/DO-201AD DIP

Manufacturer
Original
Manufacturer Product Number
sr5100
Description

sr5100 Rectifier Diode, Schottky, 1 Phase, 1 Element, 5A, 100V V(RRM), Silicon, DO-27

Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Description

Type# Description
PART# SR5100
Additional Feature Free Wheeling Diode
Application General Purpose
Breakdown Voltage-Min 100 V
Case Connection Isolated
Configuration Single
Diode Element Material Silicon
Diode Type Rectifier Diode
Forward Voltage-Max (VF) 0.85 V
JEDEC-95 Code DO-27
JESD-30 Code O-PALF-W2
Non-rep Pk Forward Current-Max 150 A
Number of Elements 1
Number of Phases 1
Number of Terminals 2
Operating Temperature-Max 150 °C
Operating Temperature-Min -55 °C
Output Current-Max 5 A
Package Body Material Plastic/Epoxy
Package Shape Round
Package Style Long Form
Reference Standard Mil-Std-202
Rep Pk Reverse Voltage-Max 100 V
Reverse Current-Max 500 µA
Reverse Test Voltage 100 V
Surface Mount No
Technology Schottky
Terminal Form Wire
Terminal Position Axial

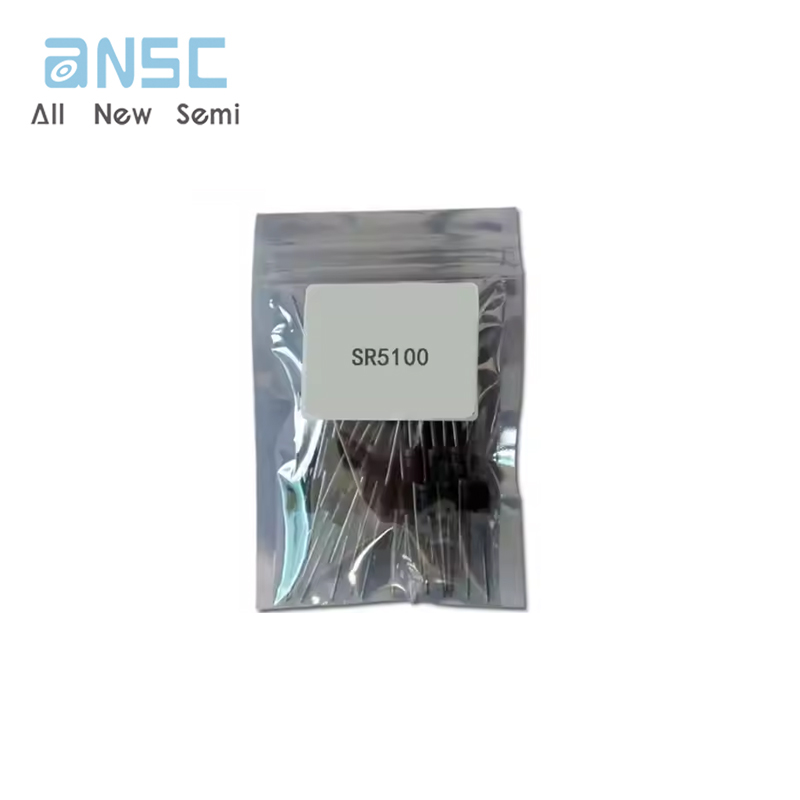

Actual image of the product

sr5100
