Hot sale Original ACF451832-153-TD01 EMI/RFI Filter LC (T-Type) EMI Filter 3rd Low Pass 1 Channel 300 mA 1812 (4532 Metric)
Manufacturer Product Number
ACF451832-153-TD01
Description
ACF451832-153-TD01 FILTER LC(T) SMDLC (T-Type) EMI Filter 3rd Order Low Pass 1 Channel 300 mA 1812 (4532 Metric), 3 PC Pad
Package Condition
Tape & Reel (TR)Cut Tape (CT)
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details

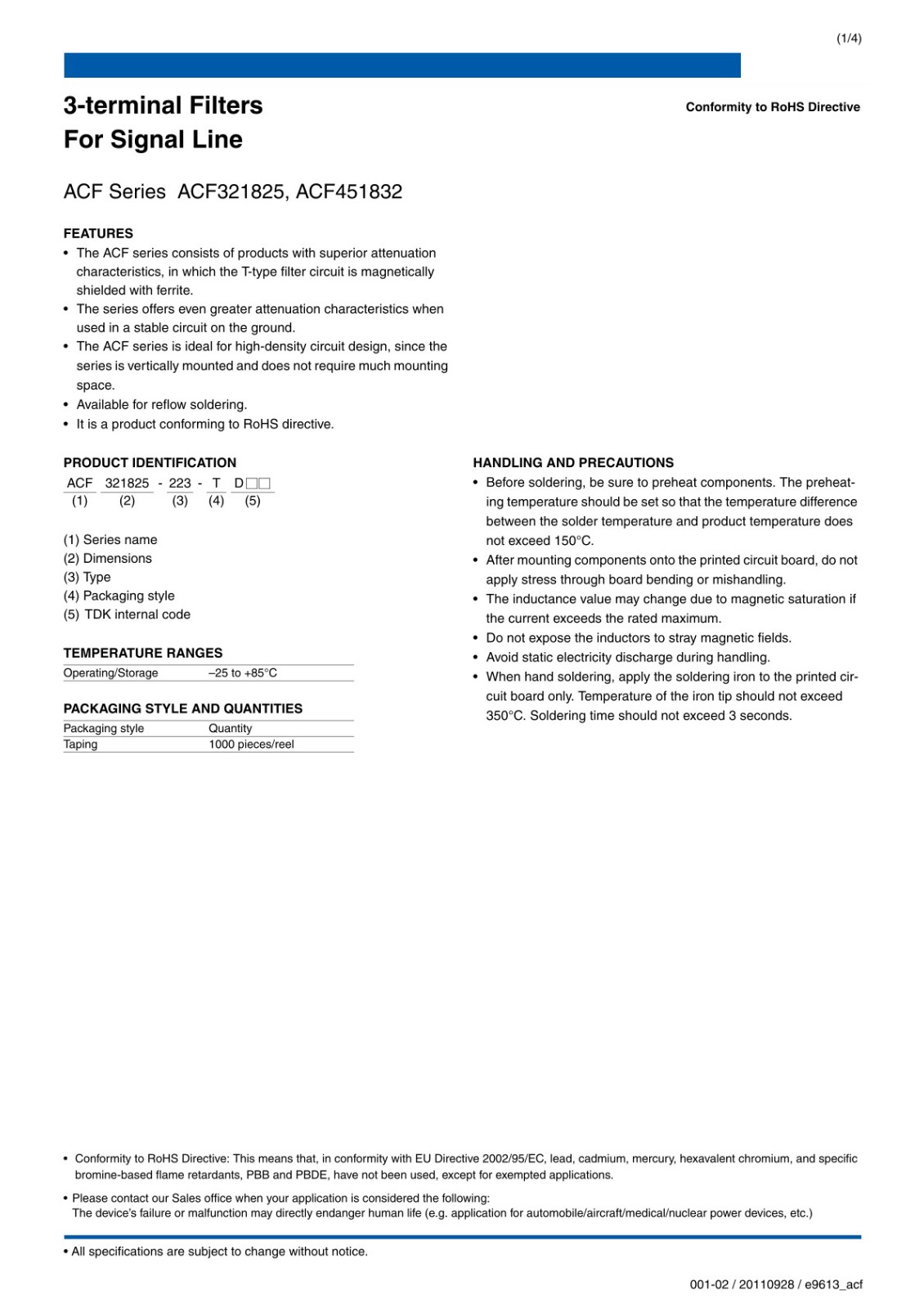

FEATURES
• The ACF series consists of products with superior attenuation characteristics, in which the T-type filter circuit is magnetically shielded with ferrite.
• The series offers even greater attenuation characteristics when used in a stable circuit on the ground.
• The ACF series is ideal for high-density circuit design, since the series is vertically mounted and does not require much mounting space.
• Available for reflow soldering.
• It is a product conforming to RoHS directive.
Product Description
| Type | Description |
| ANSC PART# | ANSC - ACF451832-153-TD01 |
| Category | Filters |
| EMI/RFI Filters (LC, RC Networks) | |
| Manufacturer | Original |
| Series | ACF |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| / | |
| Part Status | Obsolete |
| Type | Low Pass |
| Filter Order | 3rd |
| Technology | LC (T-Type) |
| Number of Channels | 1 |
| Center / Cutoff Frequency | - |
| Attenuation Value | 25dB @ 11MHz ~ 70MHz |
| Resistance - Channel (Ohms) | 0.15 |
| Current | 300 mA |
| Values | - |
| ESD Protection | No |
| Operating Temperature | -25°C ~ 85°C |
| Applications | Data Lines for Mobile Devices |
| Voltage - Rated | 50V |
| Mounting Type | Surface Mount |
| Package / Case | 1812 (4532 Metric), 3 PC Pad |
| Size / Dimension | 0.177" L x 0.126" W (4.50mm x 3.20mm) |
| Height | 0.079" (2.00mm) |

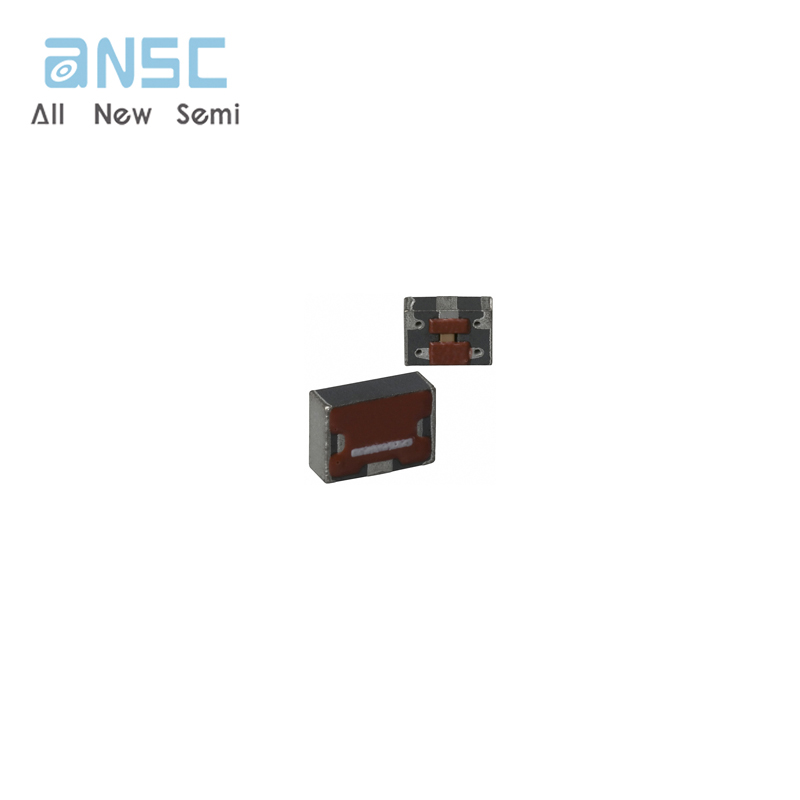

Product Photos

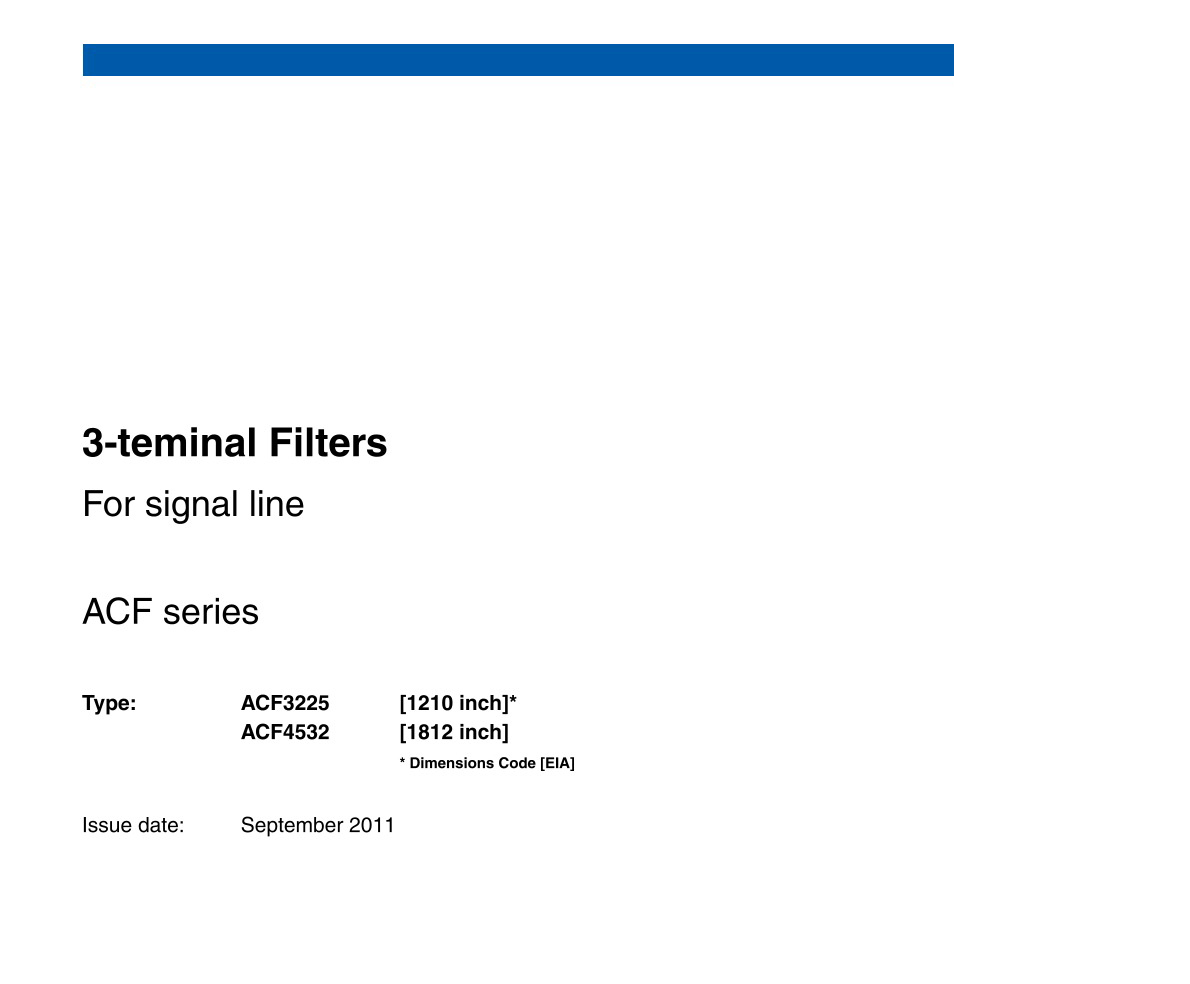

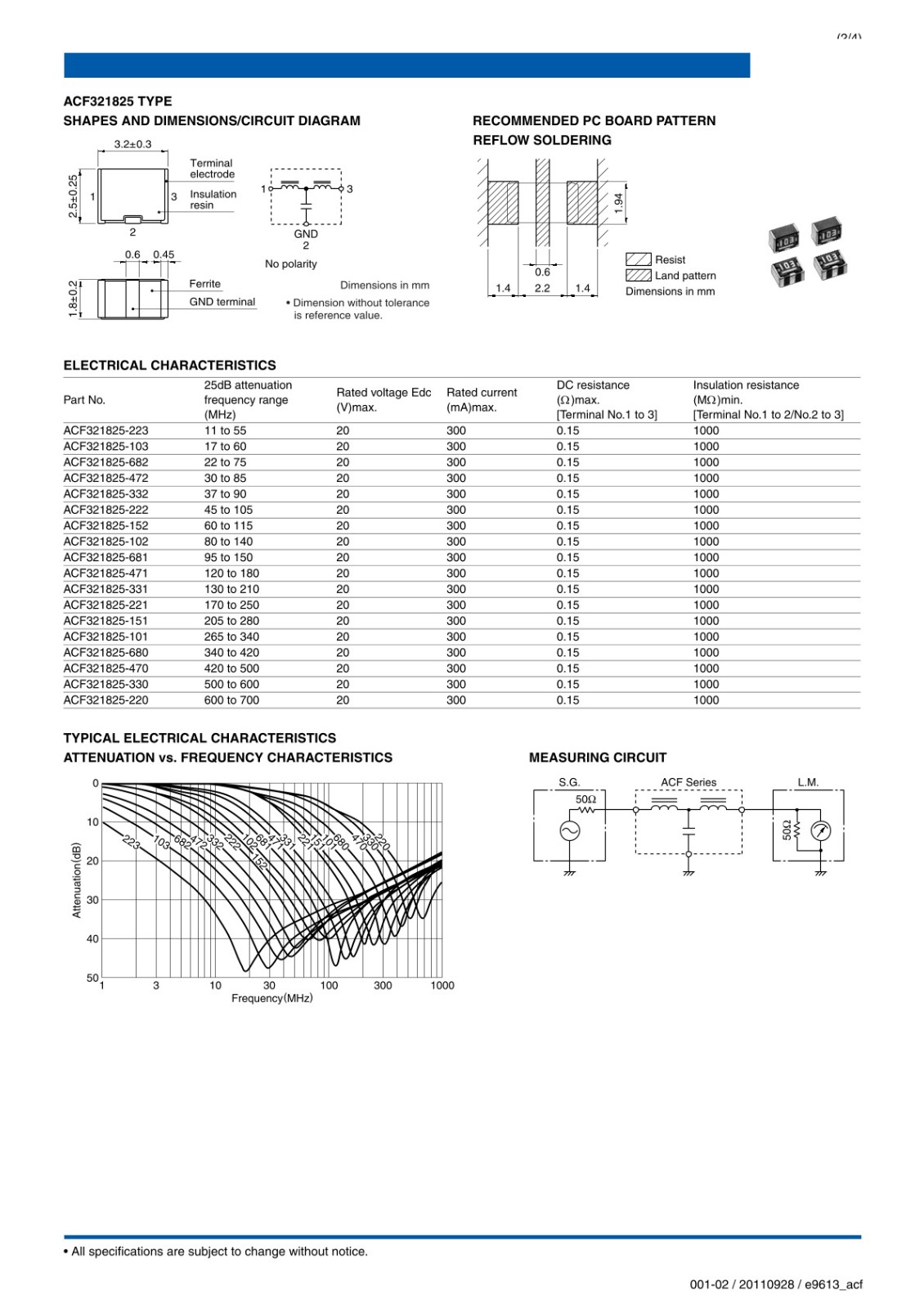

Product datasheet
