Hot sale Original BNX025H01L FILTER LC 10UF SMD LC EMI Filter 5th Order Low Pass 2 Channel 20A 4-SMD
Manufacturer Product Number
BNX025H01L
Description
BNX025H01L LC EMI Filter 5th Order Low Pass 2 Channel C = 10µF 20 A 4-SMD, No Lead
Package Condition
Tape & Reel (TR) Cut Tape (CT)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| Product Description: The BNX025H01L is a surface-mount, low-pass EMI/RFI filter, designed to provide reliable electromagnetic interference and radio frequency interference (EMI/RFI) protection in automotive applications. This filter is part of the EMIFIL? series, known for its high-performance and compact design. Features: Attenuation value of 35dB @ 50kHz ~ 1GHz, ensuring effective EMI/RFI suppression Capacitance of 10μF, providing a stable and reliable filtering performance Current rating of 15A, suitable for high-current applications Operating temperature range of -55°C to 125°C, ensuring reliable performance in harsh environments Surface-mount package with a compact size of 0.476L x 0.358W x 9.10mm, making it ideal for space-constrained applications Tin/silver/copper (Sn/Ag/Cu) termination, providing excellent electrical and thermal conductivity Applications: Automotive: The BNX025H01L is designed for use in automotive applications, providing EMI/RFI protection for electronic systems such as infotainment, navigation, and telematics. Industrial: This filter can also be used in industrial applications, such as factory automation, medical devices, and test and measurement equipment. |
Product Description
| Type# | Description |
| ANSC PART# | ANSC - BNX025H01L |
| Category | Filters |
| EMI/RFI Filters (LC, RC Networks) | |
| Manufacturer | / |
| Series | EMIFIL®, BNX |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Part Status | Active |
| Type | Low Pass |
| Filter Order | 5th |
| Technology | LC |
| Number of Channels | 2 |
| Center / Cutoff Frequency | - |
| Attenuation Value | 35dB @ 50kHz ~ 1GHz |
| Resistance - Channel (Ohms) | 0.00043 |
| Current | 20 A |
| Values | C = 10µF |
| ESD Protection | No |
| Operating Temperature | -55°C ~ 125°C |
| Applications | - |
| Voltage - Rated | 25V |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension | 0.476" L x 0.358" W (12.10mm x 9.10mm) |
| Height | 0.146" (3.70mm) |
| Base Product Number | BNX0 |

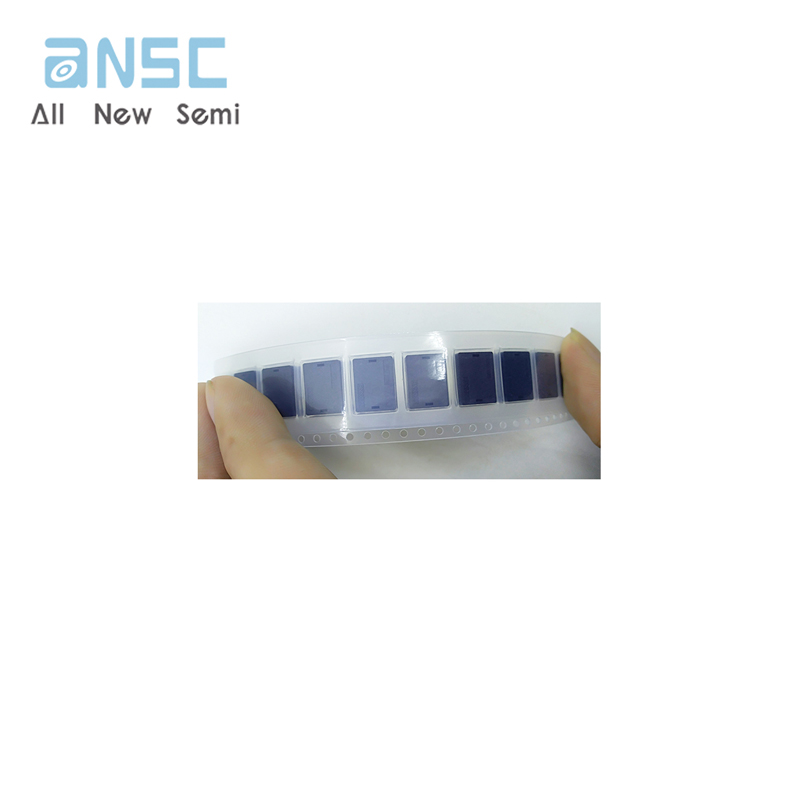

Actual image of the product
