Hot offer BOM distribution service electronic components PLA10AN5521R0R2B AC Line Filters Common Mode Choke Coil
Manufacturer Product Number
PLA10AN5521R0R2B
Description
PLA10AN5521R0R2B Single Phase EMI Filter, 300V
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| The PLA10 series is a compact size AC common mode choke coil. It can obtain a high inductance value in spite of its compact size. ■ Features 1. Compact and light weight 2. Low profile in vertical core layout 3. Both a standard winding type and a sectional winding type for higher frequency noise are available. |
Product Description
| Type | Description |
| Part #: | PLA10AN5521R0R2B |
| Category | Filters |
| Common Mode Chokes | |
| Manufacturer | Original |
| Series | PLA10 |
| Packaging | Bulk |
| Part Status | Obsolete |
| Filter Type | Power Line |
| Number of Lines | 2 |
| Current Rating (Max) | 1A |
| DC Resistance (DCR) (Max) | - |
| Voltage Rating - DC | 300V |
| Voltage Rating - AC | - |
| Operating Temperature | -25°C ~ 60°C |
| Ratings | - |
| Approval Agency | - |
| Features | - |
| Mounting Type | Through Hole |
| Size / Dimension | 0.709" L x 0.630" W (18.00mm x 16.00mm) |
| Height (Max) | 0.689" (17.50mm) |
| Package / Case | Vertical, 4 PC Pin |
| Base Product Number | PLA10AN |

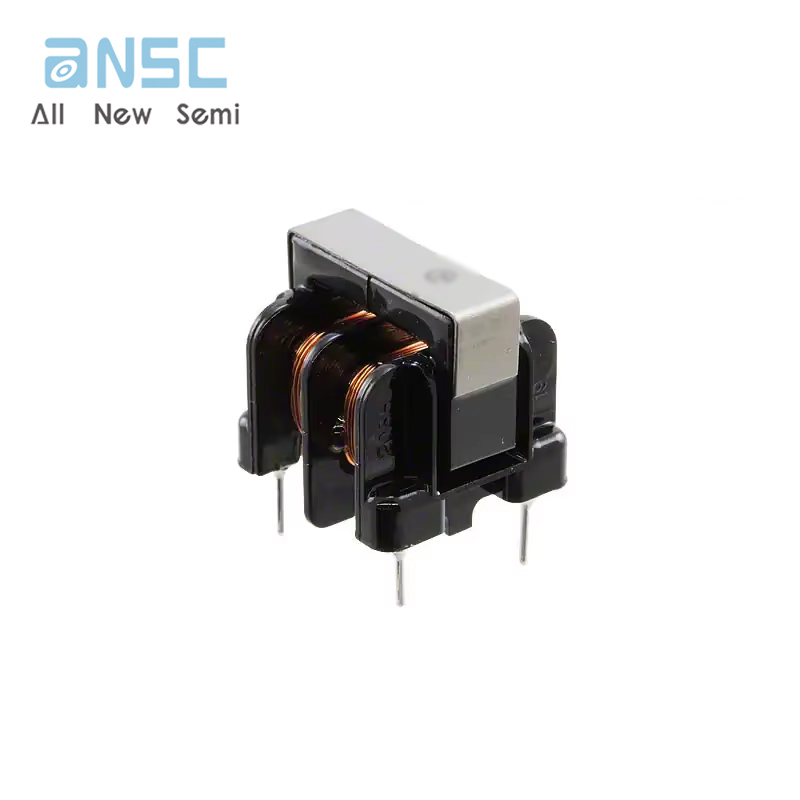

Actual image of the product
Other Products In The same category:
PLA10AN5521R0R2B Single Phase EMI Filter, 300V
1000In stock:
Can ship immediately
