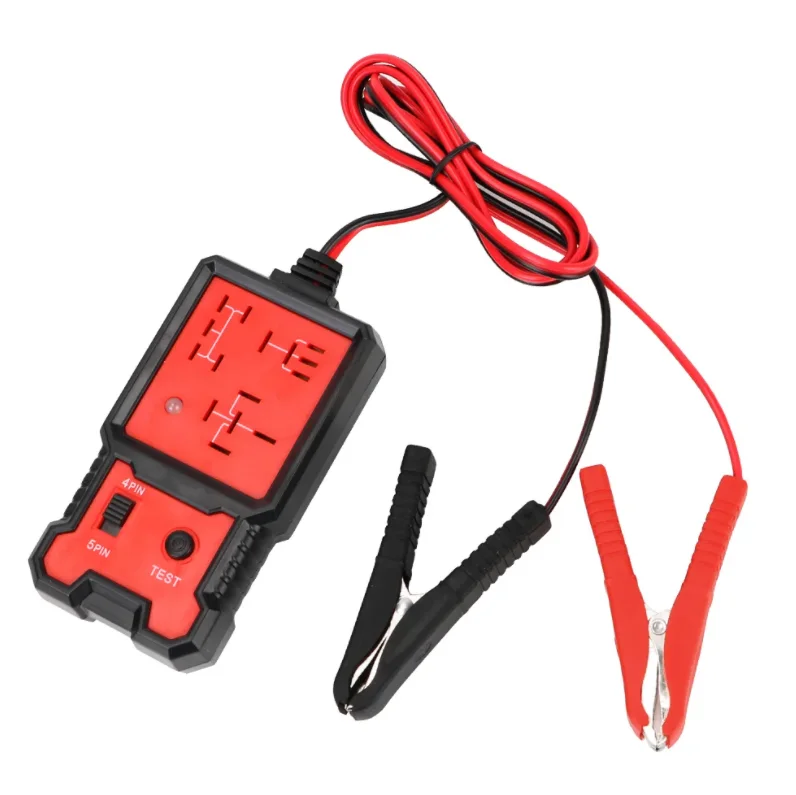

Automobile relay tester BJ-707 type detector Automobile circuit detector automobile maintenance tool
Manufacturer
Manufacturer Product Number
BJ-707
Description
Automobile relay tester BJ-707 type detector Automobile circuit detector automobile maintenance tool
Package Condition
Original
Product Description
* CNBJ-707
is a quick go/no-go tester relays that provides with indication of the
general health and functioning of the most common Automotive relays.
Tester will check for proper functioning of the relay contacts by
connecting the car battery (11V--15V) to the relay coil. Tester will
watch the pin configuration,the time to contacts closure and opening,
consistency of the relay during each test session, Tester will light the
GREEN LED if all passed during the test session,if not light the RED
LED.
Introduction:
* 1.
Connect the power leads to the car battery --black alligator clip to
negative terminal, red alligator clip to positive terminal.
* 2. Tester is powered up when the LED illuminates in RED.
* 3.
Check the relay before plugging into the tester. If it's a 4 pin
relay,select"4 pin" on the tester.If it's a 5 pin relay, select"5 pin"on
the tester.
* 4. Plug in the relay into one of the three receptacles.
* 5. Press the "TEST" button.
* 6.
Tester will check the pin configuration of the unknown relay. Tester
will light the RED LED if the unkonwn relay is not the same to the most
of common automotive relaysor the pin of the unknown relay is destroyed.
* 7.Tester
will open and close the relay 10 times for testing the time to contacts
closure and opening if the pin configuration of the relay is right.
Tester will light the RED LED immediately if the time is overtime.
* 8.
Tester will check the consistency of the relay after testing the time
to contacts closure and opening ten times. Tester will light the GREEN
LED if the test passed, if not light the RED LED.
* 9. Disconnect power leads from the car battery and remove relay from the tester.
Attention:
* 1. The car battery must be 12V battery, and the voltage of the battery is among 11V-15V.
* 2. Ideal for coil resistance above 20 ohms.
is a quick go/no-go tester relays that provides with indication of the
general health and functioning of the most common Automotive relays.
Tester will check for proper functioning of the relay contacts by
connecting the car battery (11V--15V) to the relay coil. Tester will
watch the pin configuration,the time to contacts closure and opening,
consistency of the relay during each test session, Tester will light the
GREEN LED if all passed during the test session,if not light the RED
LED.
Introduction:
* 1.
Connect the power leads to the car battery --black alligator clip to
negative terminal, red alligator clip to positive terminal.
* 2. Tester is powered up when the LED illuminates in RED.
* 3.
Check the relay before plugging into the tester. If it's a 4 pin
relay,select"4 pin" on the tester.If it's a 5 pin relay, select"5 pin"on
the tester.
* 4. Plug in the relay into one of the three receptacles.
* 5. Press the "TEST" button.
* 6.
Tester will check the pin configuration of the unknown relay. Tester
will light the RED LED if the unkonwn relay is not the same to the most
of common automotive relaysor the pin of the unknown relay is destroyed.
* 7.Tester
will open and close the relay 10 times for testing the time to contacts
closure and opening if the pin configuration of the relay is right.
Tester will light the RED LED immediately if the time is overtime.
* 8.
Tester will check the consistency of the relay after testing the time
to contacts closure and opening ten times. Tester will light the GREEN
LED if the test passed, if not light the RED LED.
* 9. Disconnect power leads from the car battery and remove relay from the tester.
Attention:
* 1. The car battery must be 12V battery, and the voltage of the battery is among 11V-15V.
* 2. Ideal for coil resistance above 20 ohms.
