Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Hot offer The first mock exam LED lamp is 10W dimming lamp, wireless charging 5W audio three in one module [PCBA customization]
Manufacturer
Manufacturer Product Number
ATM- XD01-FR
Description
The first mock exam LED lamp is 10W dimming lamp, wireless charging 5W audio three in one module [PCBA customization]
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
The first mock exam LED lamp is 10W dimming lamp, wireless charging 5W audio
three in one module [PCBA customization](Accept customization)
| Input: | 12V2A |
| Output: | LED desk lamp power 5W |
| Wireless charging power 10W | |
| audio power 5W | |
| Performance parameter | |
| a. LED desk lamp | |
| Input voltage | 12V |
| Maximum power | 5W |
| 48 pieces of 4014 LED | |
| Central illumination | 800LUX |
| Luminous flux | 300LM |
| Color temperature | 2800K/3400K/4500K/5600K |
| Life | 50000 |
| b. 10W wireless charging | |
| Input voltage: | 12V |
| Wireless charging output | 10W / 7.5w/5w (upgrade to 15W) |
| Protection function: | Over current protection, over temperature protection, FOD metal foreign matter protection |
| Transmission distance | ≤8mm |
| Charging efficiency | ≥76% |
| c. audio | |
| Input voltage | 12V |
| Output power | 5W (RMS)THD=10% |
| 5.0 standard | |
| Connection distance | 10m |
| Frequency response range (Hz) | 120Hz-18KHz |
| Signal to noise ratio (DB) | 75 |
| [Instructions for use] | |
| 1. Power button, short press to turn on and turn off the lamp | |
| 2. V button, long press to lower the brightness of the table lamp | |
| 3. A button, long press to increase the brightness of table lamp | |
| 4. O button, short press to adjust the color temperature, a total of 4 levels of color temperature adjustable | |
| 5. BT button, short press to turn on and turn off , and long press to cancel pairing | |
| 6. + button, short press the previous song, long press to increase the volume | |
| 7. - press the key, short press a song, long press to decrease the volume | |
| button indicator light. It will flash slowly when waiting for pairing, and will be on for a long time after pairing |

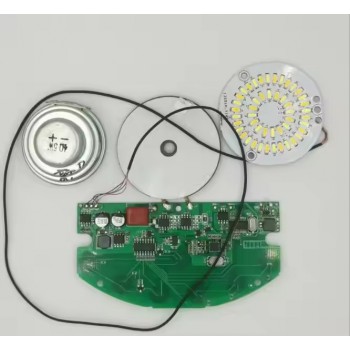

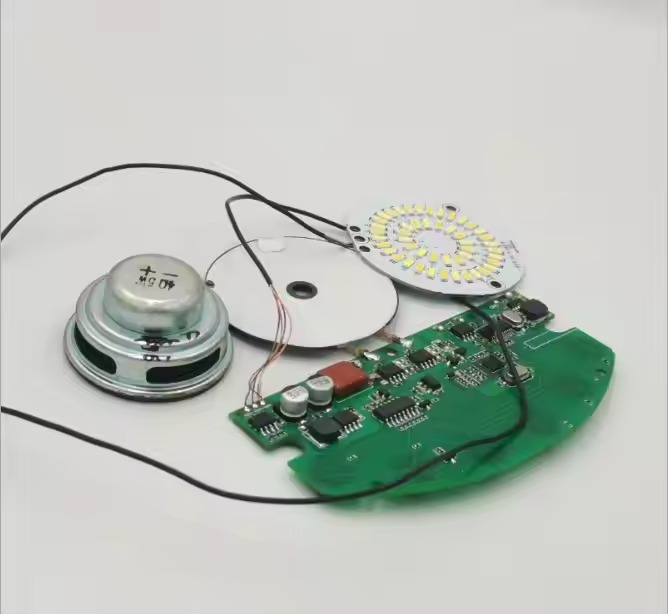

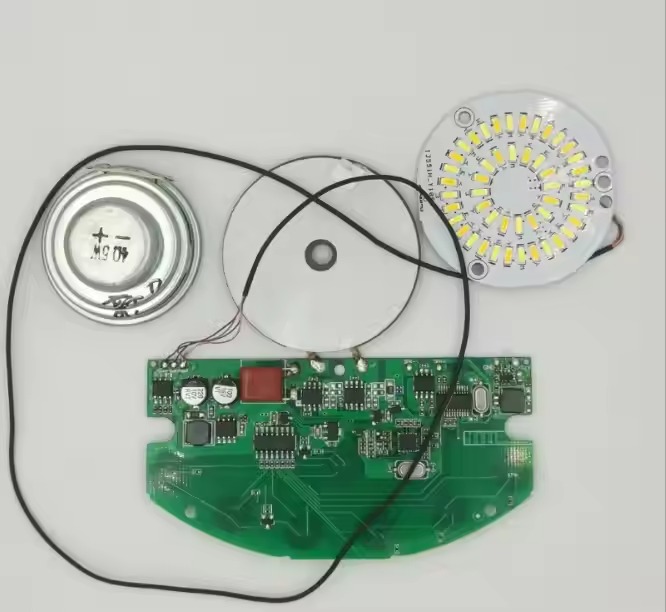

Actual image of the product
About us
How to get a custom type wireless charging and transmitting module quote:
| 1.What machine to use |
| 2. Input voltage + current |
| 3. Output voltage + current |
| 4. Shape + size requirements |
| 5. Coil requirements (1 coil? 2 coils? 3 coils or ..?) |
| 6. Plug / Welding wire Detailed requirements |
| 7. Quantity |
| 8. Certification requirements |
| 9. Other requirements |
This is a customized product, please contact us for price and more details.
