Hot offer Single channel 6wled three touch dimming table lamp 10W wireless charging two in one USB output module customized PCBA
Manufacturer
Manufacturer Product Number
ATM-JT02-FR
Description
Single channel 6wled three touch dimming table lamp 10W wireless charging two in one USB output module customized PCBA
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
Single channel 6wled three touch dimming table lamp 10W wireless charging
two in one USB output module customized PCBA(Accept customization)
| Input: | 9V2A/QC2.0,QC3.0 |
| Output: | LED desk lamp power 6W |
| Wireless charging power 10W | |
| Performance parameter | |
| a. LED desk lamp | |
| Input voltage | 9V |
| Maximum power | 6W |
| 50 pieces of 4014 LED | |
| Central illumination | 500LUX |
| Luminous flux | 500LM |
| Color temperature | 6000k |
| Life | 50000 |
| b. 10W wireless charging | |
| Input voltage: | 5V/9V |
| Wireless charging output | 10W/7.5W/5W |
| Protection function: | Over current protection, over temperature protection, FOD metal foreign matter protection |
| Transmission distance | ≤8mm |
| Charging efficiency | ≥76% |
| [Instructions for use] |
| 1. Power button, short press to turn on and turn off the lamp |
| 2. Brightness button, high, medium, low three gear brightness adjustment |
| 3.1 h key, short press to turn on and off, 1 hour time to turn off |

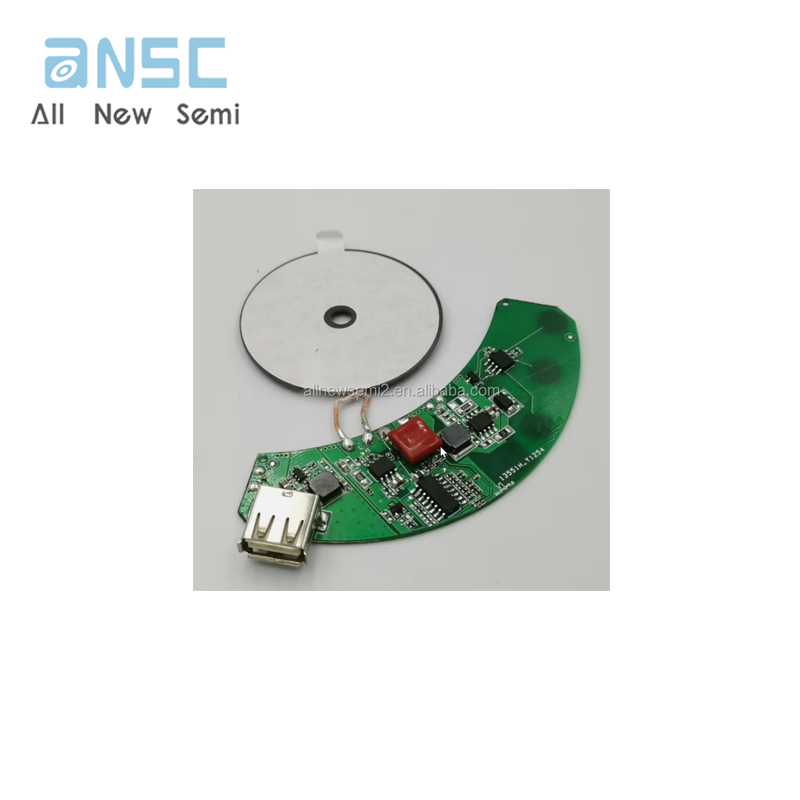

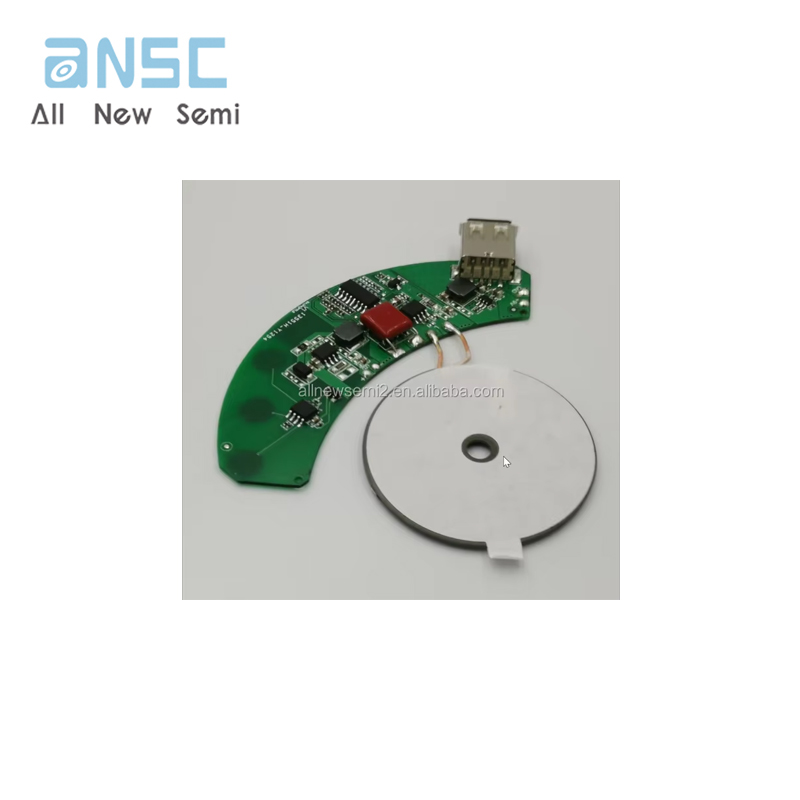

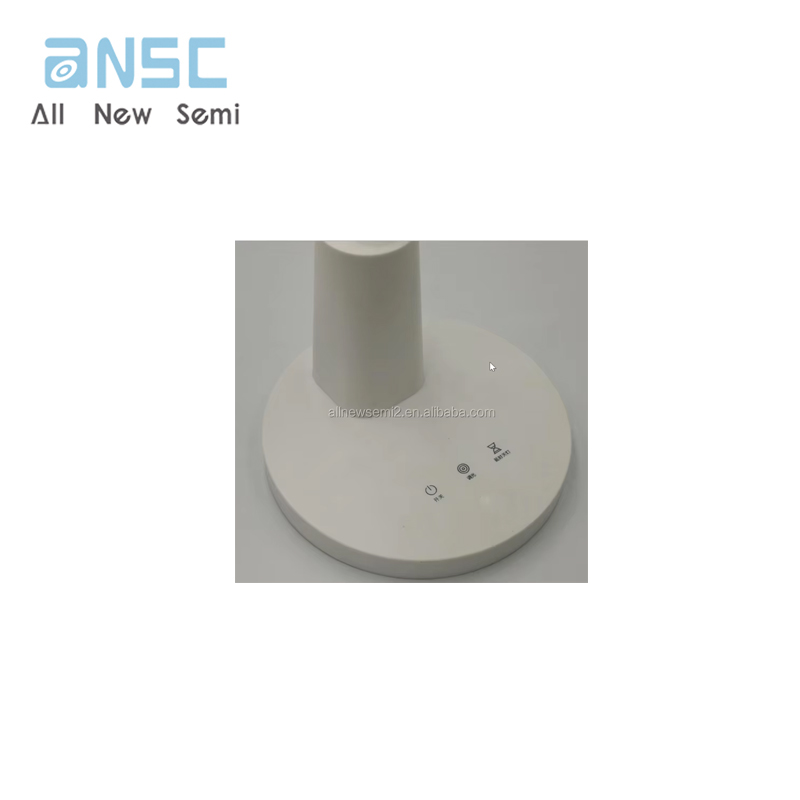

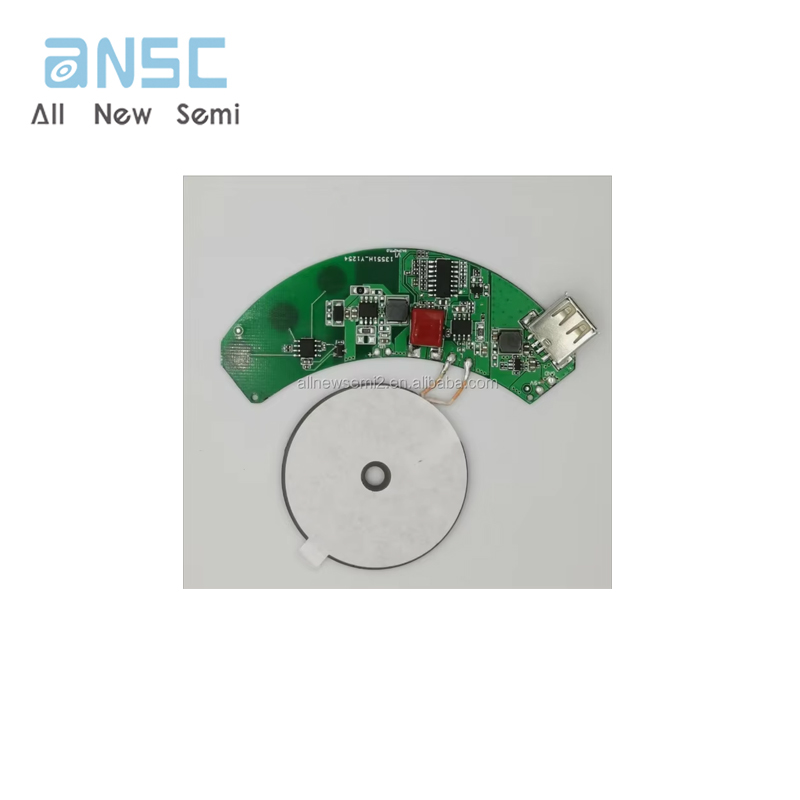

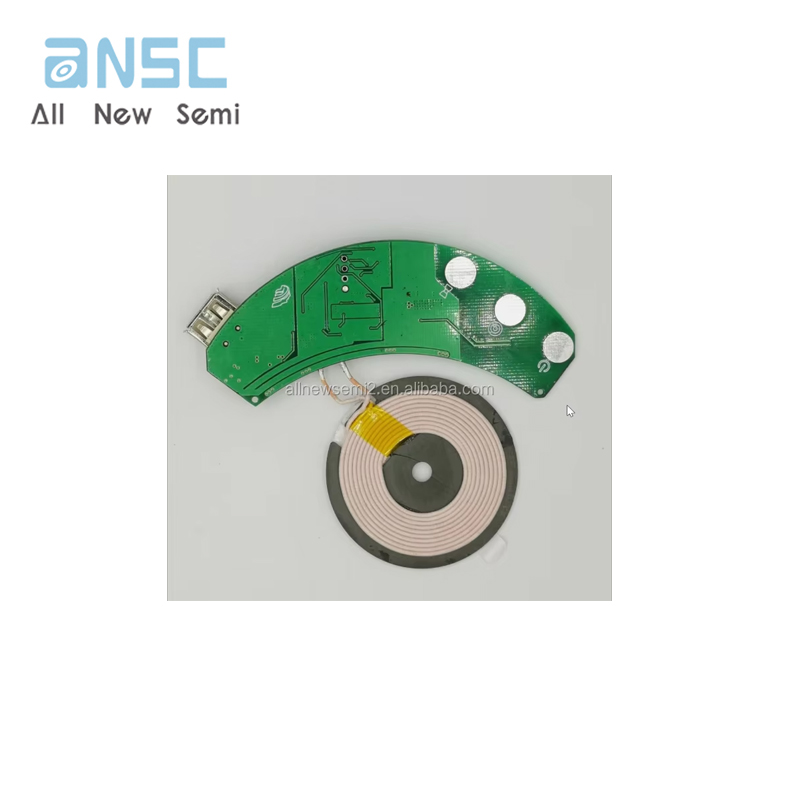

Actual image of the product
About us
How to get a custom type wireless charging and transmitting module quote:
| 1.What machine to use |
| 2. Input voltage + current |
| 3. Output voltage + current |
| 4. Shape + size requirements |
| 5. Coil requirements (1 coil? 2 coils? 3 coils or ..?) |
| 6. Plug / Welding wire Detailed requirements |
| 7. Quantity |
| 8. Certification requirements |
| 9. Other requirements |
This is a customized product, please contact us for price and more details.
